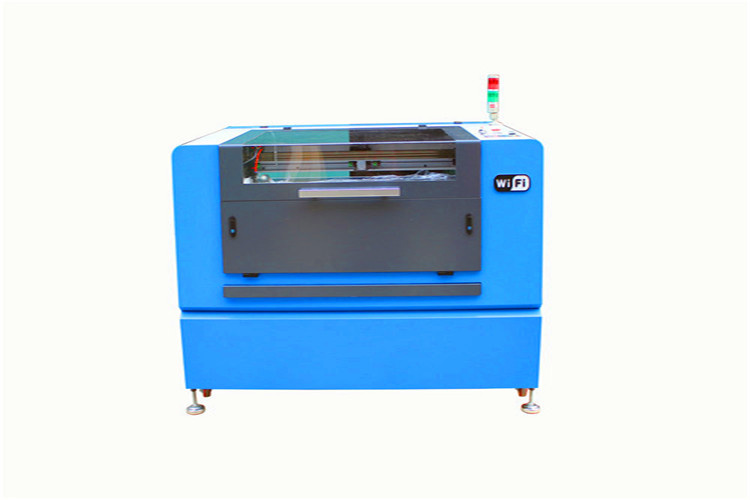

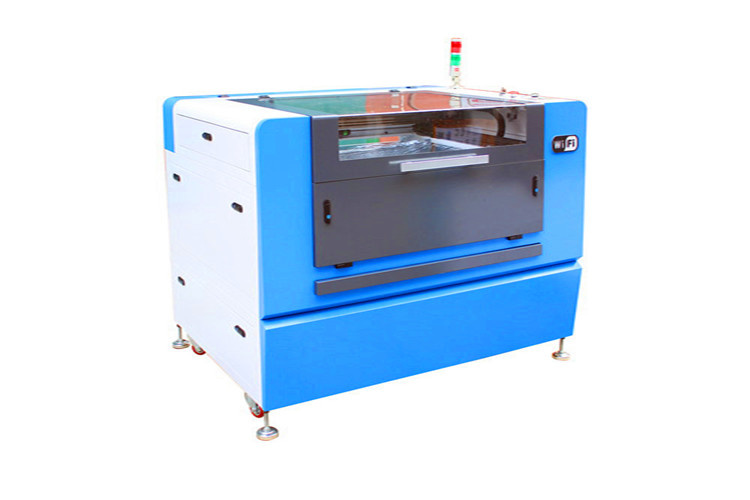

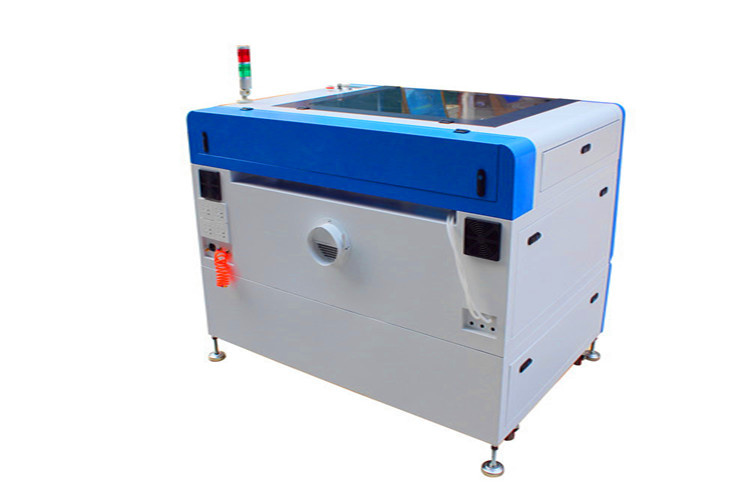

WiFi Computer Control DSP Advertisement, Arts and Crafts, Toys, Garments, Model, Package 80-150watt 6090 CO2 Laser Cutting & Engraving Machine

Name: WiFi Computer Control DSP Advertisement, Arts and Crafts, Toys, Garments, Model, Package 80-150watt 6090 CO2 Laser Cutting & Engraving Machine
Brand: china-crystals.com
SKU: 732828772
Availability: InStock
Rating: 4.6 (134 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	6090TYPE 80-150W CO2 laser engraving machine
Laser:	80/100/130/150W
Cutting Area:	900X600mm
DSP Control:	Yes
WiFi:	Yes
Laser Cutting Speed:	0-64000mm/Min
Cutting Thickness:	30mm
Min Character:	1X1mm English
Repeatability:	0.01mm

Product Description

Features

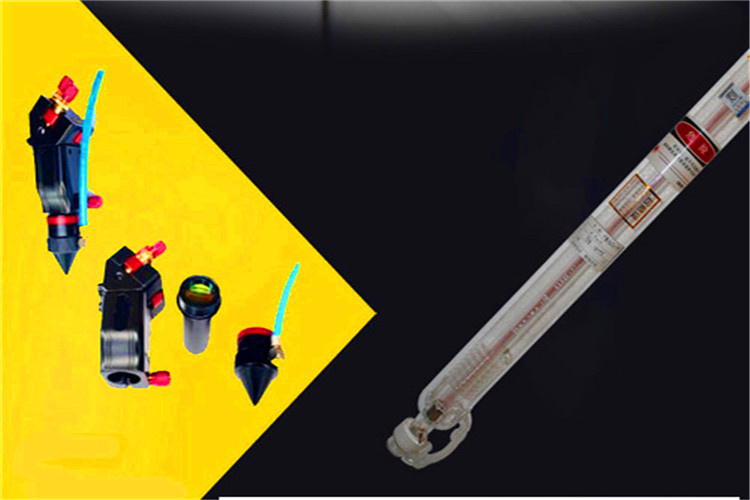

1. It adopts high quality CO2 tubes, eg RECI,EFR,Yongli brand and USA focus lens and reflective mirrors. Besides this, It also has module guide rail which make sure the machine has high engraving accuracy and longtime service time.

2. Color display screen makes operation easy and friendly man-machine interface. It has laser cutting head movement control, output laser power control,engraving speed control, press key then engraving function, engraving border preview and U disk file reading functions.

3. It adopts DSP high speed processor which supports USDB 2.0 interface and U flash memory disk read and write file.

4.The updated software supports AutoCAD, COREDRAW,CAM and other processing graphics software. Original images can be directly read by USB interface. Also it support hot-plug and hot-unplug and it uses very less time to finish data reading and it doesn't occupy computer resources.

5. It supports WIFI

6.Owing to advanced technology, it has excellent engraving and scanning accuracy. It can make 1mm English character and clear halftone image.

7.Red light location, auto lifting platform or rotary fixture or negative pressure adsorption is optional.

8. It has power off continue engraving functions.

Specification:

1.Laser power:50W,60W,80W,100W or 130W

2. Max engraving area:900x600mm

3.Engraving speed:0-64000mm/min

4.Cutting thickness:0-25mm(depends on material)

5.Min character:1x1mm English

6.Resolution:4500DPI

7.Working voltage:110/220VAC 50Hz

8.Repeatability:0.01mm

9.Graphic format: BMP,PLT, JPEG,GIF,TIFF,PCS,TGA,CDR,DWG and DXF

10.Machine size: 1500x1160x1080mm

11.Machine weight:200Kg

Applicable materials

wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.

Applicable industries

advertisement, arts and crafts, leather, toys, garments, model , building upholster, computerized embroidery and clipping, packaging and paper industry

Welcome to Jinan Ruby Laser Technology Co., Ltd(Short for Rubylasertech). Seven years ago, it once worked as a premier provider to develop CO2 power supply, YAG pulsed or CW power supply for laser engraving or cutting machine. From then on the company devotes its time and energy to various laser and optics solutions to machine factory in China and other countries. Up to now, it has rich experience to offer high quality products and service to factories or machine users.

Owing to strong demand of laser processing around the word recently, it starts to design, manufacture and sell its own brand laser machine. Product range mainly is small and medium-sized CO2 or fiber marking machine. As skilled laser integrator, Rubylasertech uses high quality laser spares(Eg, fiber laser, scanning galvanometer, motor, laser cutting control system) to build machine and make sure it has excellent cutting performance and good user experience. Some spares are imported from Germany, USA and Japan.

Besides standard configuration, the company can also offer special configuration machine on client demand. Design flexibility is our biggest feature. With advanced technology, qualified products and excellent after sales service, it is Rubylasertech's wish to let worldwide client enjoy convenience and delight brought by its product.
