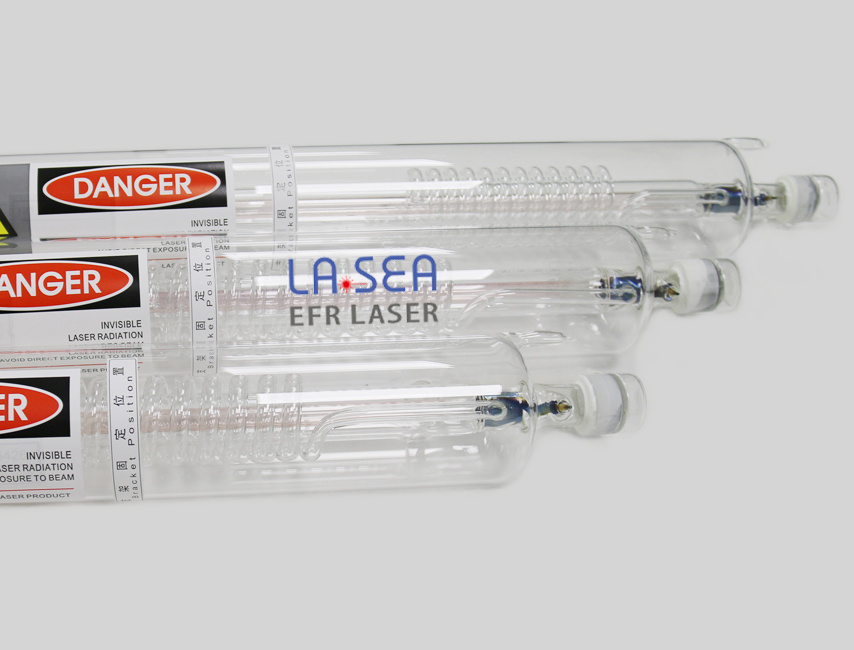

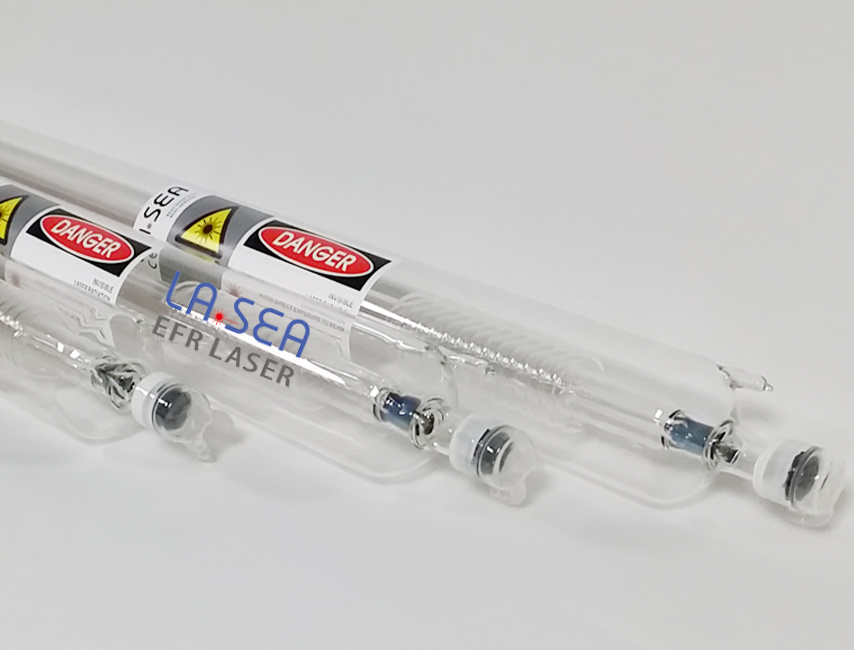

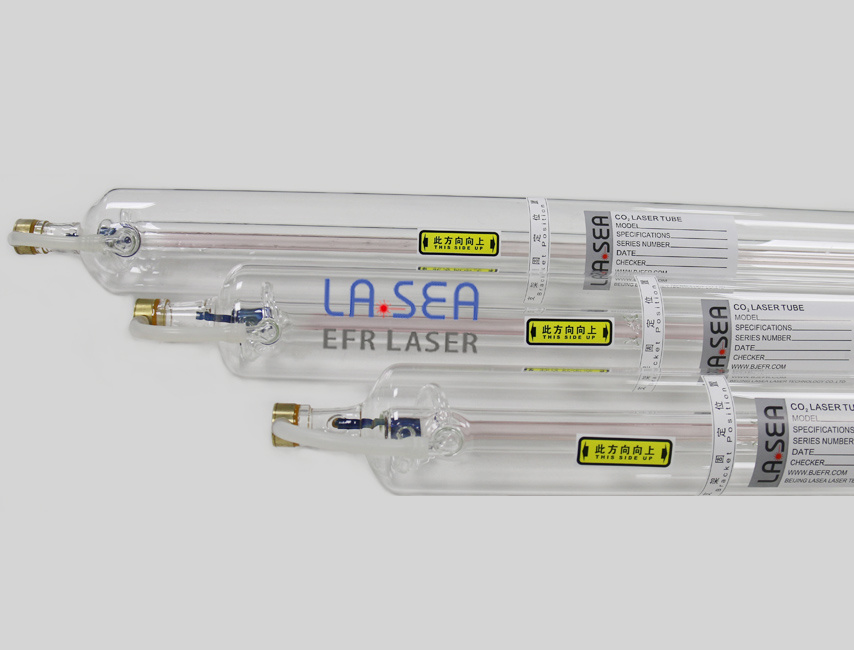

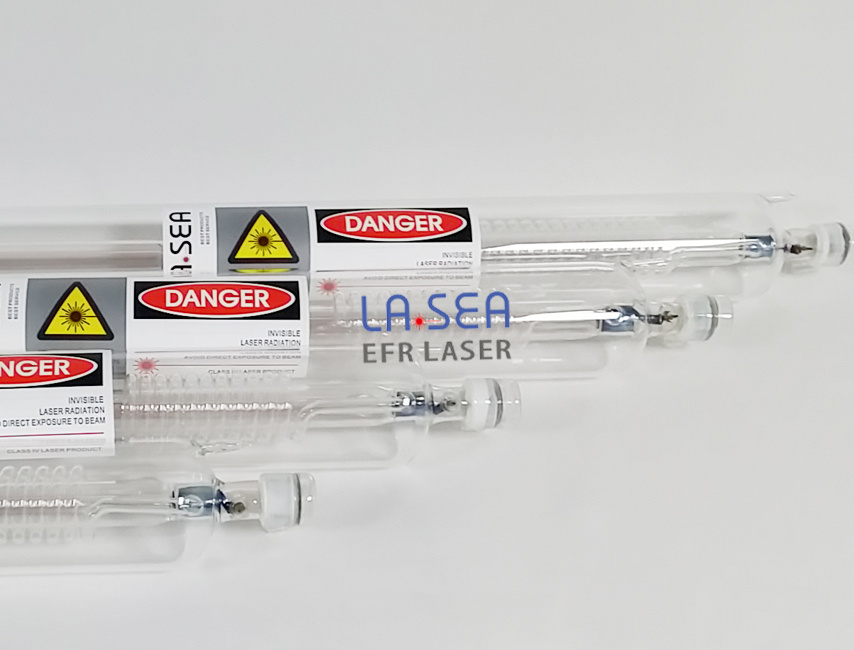

Rubber Crystal Plywood Acrylic Cutting 1450mm 100W CO2 Laser Tube
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
EFR F-4 100W 1450MM CO2 laser tube |
| Length: |
1450mm |
| Diameter: |
80mm |
| Min Laser Power: |
100W |
| Max Laser Power: |
120W |
| Warranty: |
10months |
| Lifetime: |
6000hours |
| Cooling Method: |
Water Cooling |
| Material: |
Sealed Glass Tube |
| Catalyzer: |
Yes |
| Shipping Method: |
DHL UPS,Air Shipping or Sea Shipping |
Product Description
EFR 80W100W130W150W CO2 laser tube Warranty 10-12months 6000-10000 hours lifetime 1. Feature: F Series CO2 Laser Tubes' working life is up to 6000hours, the single tube power is up to 180W. The laser output is stable. The discharge tube is catalyst coated,the working life is much increased. Compared to similar product, the tube body length is shorter, the laser beam mode is better, the cutting speed is higher.1. Stability: the discharge glass tube body is imported from Germany. The laser beam mode is up to TEM00. The power is table. It is competitive for industrial application.2. Power: The power is 30% higher than other laser tube with same length.3. Long Life: the catalyst coating on discharge tube with unique electrode processing makes the laser out put is more stable, avoid power weaken during long time working. ZS Series CO2 Laser Tube 1. Reliability: discharge raw glass tube is imported from Germany, the complete glass tube quality is under controlled.
2. Power: mirror & Windows from II-VI, compared to common laser tube with same length, power is 40% higher. Max power can be 190W.
3. Long Lifespan: catalyst coated discharge tube with processed electrode, the discharging is more stable, and working life is up to 10000 hours.
4. Beam: stable cavity structure brings more reliable beam and better quality, beam mode is up to TEM00.2.Specification:| Model | Length (mm) | Diameter (mm) | Min Power(W) | Max Power(W) | Catalyzer | Service time (hour) | Warranty
(month) |
| F2 CO2 laser tube | 1250 | 80 | 80 | 95 | Yes | 6000 | 10 |
| F4 CO2 laser tube | 1450 | 80 | 100 | 120 | Yes | 6000 | 10 |
| F6 CO2 laser tube | 1650 | 80 | 130 | 150 | Yes | 6000 | 10 |
| F8 CO2 laser tube | 1850 | 80 | 150 | 165 | Yes | 6000 | 10 |
| F10 CO2 laser tube | 2050 | 80 | 150 | 170 | Yes | 6000 | 10 |
| ZS-1250 CO2 laser tube | 1250 | 80 | 80 | 95 | Yes | 10000 | 12 |
| ZS-1450 CO2 laser tube | 1450 | 80 | 100 | 120 | Yes | 10000 | 12 |
| ZS-1650 CO2 laser tube | 1650 | 80 | 130 | 150 | Yes | 10000 | 12 |
| ZS-1850 CO2 laser tube | 1850 | 80 | 150 | 160 | Yes | 10000 | 12 |
| ZS-2050 CO2 laser tube | 2050 | 80 | 170 | 185 | Yes | 10000 | 12
|
