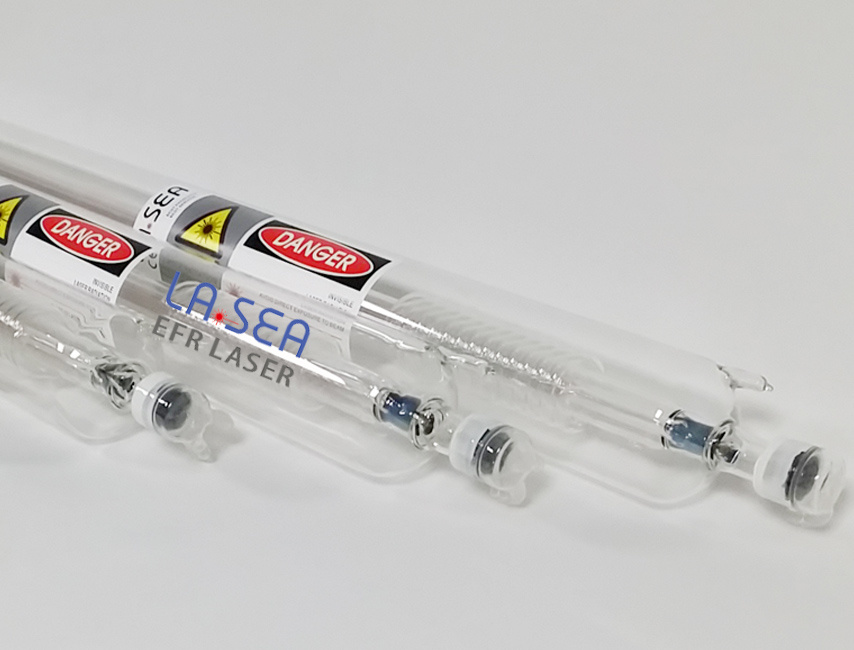

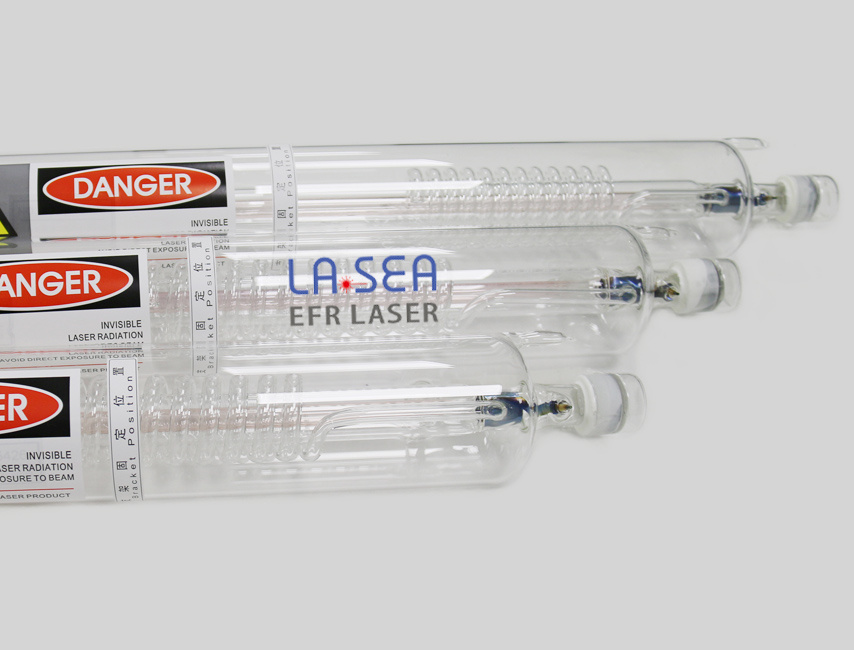

Wood Bamboo Jade Marble Crystal Efr 10month Warranty 1650mm 130-150W CO2 Laser Tube
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
Product Specifications
| Prod Model: |
EFR F-6 1650mm 130W CO2 Laser tube |
| Length: |
1650mm |
| Diameter: |
80mm |
| Min Laser Power: |
130W |
| Max Laser Power: |
150W |
| Warranty: |
10months |
| Lifetime: |
6000hours |
| Cooling Method: |
Water Cooling |
| Material: |
Sealed Glass Tube |
| Catalyzer: |
Yes |
| Shipping Method: |
DHL UPS,Air Shipping or Sea Shipping |
Product Description
EFR 80W100W130W150W CO2 laser tube Warranty 10-12months 6000-10000 hours lifetime 1. Feature: F Series CO2 Laser Tubes' working life is up to 6000hours, the single tube power is up to 180W. The laser output is stable. The discharge tube is catalyst coated,the working life is much increased. Compared to similar product, the tube body length is shorter, the laser beam mode is better, the cutting speed is higher.1. Stability: the discharge glass tube body is imported from Germany. The laser beam mode is up to TEM00. The power is table. It is competitive for industrial application.2. Power: The power is 30% higher than other laser tube with same length.3. Long Life: the catalyst coating on discharge tube with unique electrode processing makes the laser out put is more stable, avoid power weaken during long time working. ZS Series CO2 Laser Tube 1. Reliability: discharge raw glass tube is imported from Germany, the complete glass tube quality is under controlled.
2. Power: mirror & Windows from II-VI, compared to common laser tube with same length, power is 40% higher. Max power can be 190W.
3. Long Lifespan: catalyst coated discharge tube with processed electrode, the discharging is more stable, and working life is up to 10000 hours.
4. Beam: stable cavity structure brings more reliable beam and better quality, beam mode is up to TEM00.2.Specification:| Model | Length (mm) | Diameter (mm) | Min Power(W) | Max Power(W) | Catalyzer | Service time (hour) | Warranty
(month) |
| F2 CO2 laser tube | 1250 | 80 | 80 | 95 | Yes | 6000 | 10 |
| F4 CO2 laser tube | 1450 | 80 | 100 | 120 | Yes | 6000 | 10 |
| F6 CO2 laser tube | 1650 | 80 | 130 | 150 | Yes | 6000 | 10 |
| F8 CO2 laser tube | 1850 | 80 | 150 | 165 | Yes | 6000 | 10 |
| F10 CO2 laser tube | 2050 | 80 | 150 | 170 | Yes | 6000 | 10 |
| ZS-1250 CO2 laser tube | 1250 | 80 | 80 | 95 | Yes | 10000 | 12 |
| ZS-1450 CO2 laser tube | 1450 | 80 | 100 | 120 | Yes | 10000 | 12 |
| ZS-1650 CO2 laser tube | 1650 | 80 | 130 | 150 | Yes | 10000 | 12 |
| ZS-1850 CO2 laser tube | 1850 | 80 | 150 | 160 | Yes | 10000 | 12 |
| ZS-2050 CO2 laser tube | 2050 | 80 | 170 | 185 | Yes | 10000 | 12
|
Welcome to Jinan Ruby Laser Technology Co., Ltd(Short for Rubylasertech). Seven years ago, it once worked as a premier provider to develop CO2 power supply, YAG pulsed or CW power supply for laser engraving or cutting machine. From then on the company devotes its time and energy to various laser and optics solutions to machine factory in China and other countries. Up to now, it has rich experience to offer high quality products and service to factories or machine users.
Owing to strong demand of laser processing around the word recently, it starts to design, manufacture and sell its own brand laser machine. Product range mainly is small and medium-sized CO2 or fiber marking machine. As skilled laser integrator, Rubylasertech uses high quality laser spares(Eg, fiber laser, scanning galvanometer, motor, laser cutting control system) to build machine and make sure it has excellent cutting performance and good user experience. Some spares are imported from Germany, USA and Japan.
Besides standard configuration, the company can also offer special configuration machine on client demand. Design flexibility is our biggest feature. With advanced technology, qualified products and excellent after sales service, it is Rubylasertech's wish to let worldwide client enjoy convenience and delight brought by its product.
