Product Specifications
| Prod Model: |
DEK-1325 |
| Power(W): |
4.5kw*3 |
| Voltage: |
380V, 50/60Hz |
| Dimension(L*W*H): |
3070X1970X1550mm |
| Weight: |
1600kg |
| Engraving Speed: |
12000mm/Min |
| Spindle: |
4.5kw Air Cooling Spindle |
| Software: |
Type3, Artcut, Artcam, Ucancam |
| Table: |
T-Slot and Vacuum Working Table |
| Control System: |
Taiwan Syntec/Weihong Nk300 |
| Lathe Structure: |
Welding Steel Frame |
| Spindle Layout: |
Vertical |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
ISO |
| Spindle Number: |
3 Axis |
Product Description

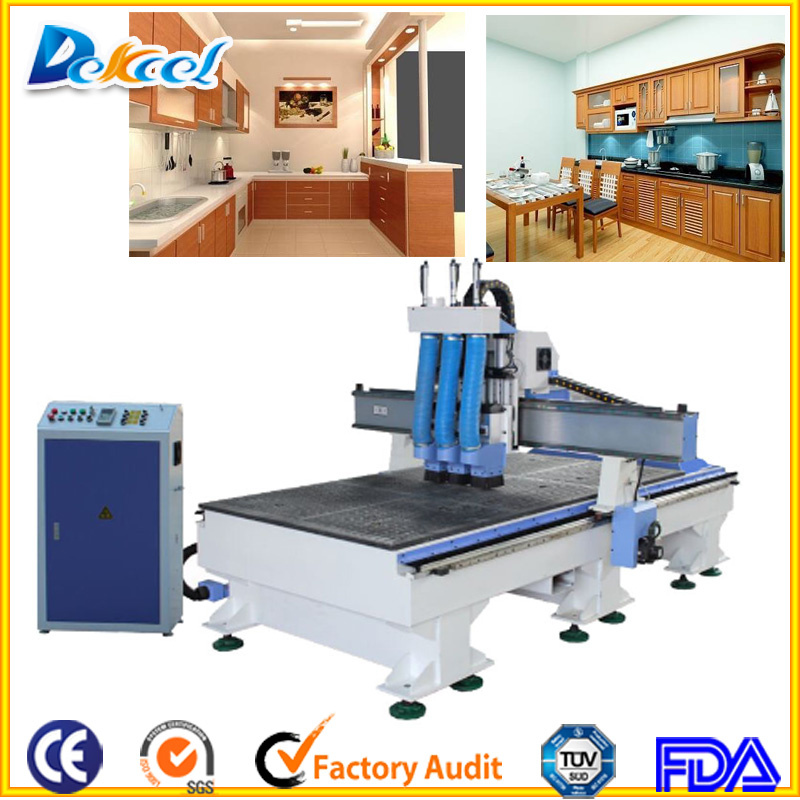

Features of three process 3d wood cutting machine
1.Tool change is simple, easy to operate, easy to program, save time.
2.Integral welding body,high inflexibility structure design,good stability,smooth high-speed operation.
3.The drive spindle,low-voltage electrical appliances, use the imported high-quality accessories.
4.Automatic positioning cylinder and professional vacuun table.
5.The flexible cable, ensure the correct motion signal.
Application Industry and Materials:
1)Stone Industy:Natural marble,granite,artificial stone,tombstone.
2)Woodworking Industry:Cnc router can be used for solid wood furniture,mahogany furniture,MDF paint doors,solid wood doors,composite doors,cupboard doors and windows,beside cabinets,folding screen etc.
3)The advertising Industry:Cnc router can engrave all kinds of signage,logo products, trademarks, nameplates,badges,decorative gift,embossed medals,certificates,souvenirs,photo frames,furniture decoration,PVC plates, PCB boards (drilling and engraving),Double color boards,acrylic etc.
4)Artwork Industry: in the wood, bamboo, organic board, double color plate, crystal and other materials on a variety of exquisite patterns and text engraving.
5)Exhibition Industry:Showcases, etc.
Technical parameter of three process cnc router for wood cutting sale
Working area: |
1300*2500*300mm Three-processing CNC Wood Router |
Spindle type: |
Air-cooling spindle |
Spindle power | 4.5KW*3 |
Spindle rotating speed |
0-18000rpm |
Power (except spindle power) |
9.0KW (include powers of: motors, drivers, inverters and so on) |
Power supply: |
AC380±10, 50 HZ |
Worktable: |
T-slot and vacuum table combined ,4 vacuum zone with clamps |
Locating precision: |
<0.01mm |
Min shaping character: |
Character:2x2mm,letter:1x1mm |
Operating temperature: |
5°C-40°C |
Working humidity |
30%-75%(without condensed water) |
Working precision |
±0.03mm |
System resolution |
±0.001mm |
Control configuration: |
Weihong control system /Syntec control system |
Data transfer interface: |
USB |
System environment: |
windows 7 |
Graphic format supported: |
G code: *.u00, * mmg, * plt, *.nc |
Compatible software |
ARTCAM, UCANCAM ,Type3 and other CAD or CAM softwares. |
Cutting thickness: |
0-40mm also (depends on different material) |
Z tool censor: |
yes |
packing |
Plywood case (veneer wood case for export) |
Optional parts |
1. Vacuum water pump / Vacuum oil-free pump
2. Double-head or multi-heads
3.Air cooled type spindle (China or Italian brand air spindle)
4.Smaller power spindles
5.Servo motors (China or Japan brand)
6.Weihong NC Control system ,Taiwan Syntec or DSP control system
7.Auto tool change system
(this system need other systems accordingly, like LNC control system, servo motors etc)
8.Mist spay cooling system
9.Dust collector |
Service of CNC Wood Router Machine
Of the training
We offer free training in our factory, welcome foreign friend come here to study the machine.
engineer oversea service is aviliable if you like, and Engineers will be trained user programming,
peration, processing and routine maintenance.
We will offer Multi-language software and operation CD, Detailed User Manual together with machine
for your reference.
Of on line service
24 hours (all days) technical support by call ,e-mail, skype or computer remote control service by engineer.
Of guarantee time
2 year guarantee for whole machine, if any problem of components, we will express you good ones. As we have strictly ex factory inspection, so there in no any problem of the machine.
lifetime maintenance, charge the appropriate fee and the cost of replacement parts
