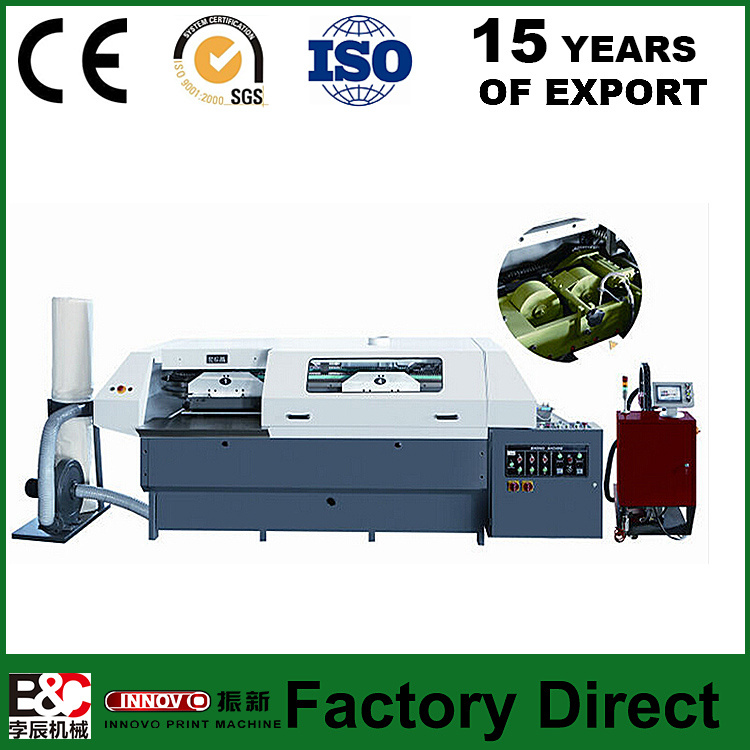

Product Specifications
| Prod Model: |
TBB504D |
| Max Size: |
450*320mm |
| Min Size: |
150*105mm |
| Binding Thickness: |
2-50mm |
| Binding Speed: |
Max:2000books/Hours |
| Power Required: |
12kw |
| Weight: |
2100kg |
| Dimensions: |
3100*1300*1250mm |
| Video: |
Available |
| Type: |
Comb Binding Machine |
| Thickness: |
20-50mm |
Product Description
1.Parameters:
| Binding size | Max:450*320mm
Min:150*105mm |
| Binding thickness | 2-50mm |
| Binding speed | Max:2000Books/Hours |
| Power required | 12Kw |
| Weight | 2100Kg |
| Dimensions | 3100*1300*1250mm |
2.Description:
PUR (Paly Urethane Reactive, hereinafter referred to as PUR) is composed of a great number of prepolymers of polyurethane with active gene groups at the tail ends, and is a novel hot smelt adhesive which is rigid and flexible. It can generate irreversible cross-linking reaction after encountering with moisture in air to form an especially firm adhesive layer with paper. It does not generate any reaction with printing ink and solvent, and has excellent ageing resistance. Because of its excellent binding adaptability, it has a lot of absolute advantages compared with commonly-used hot smelt adhesive (EVA hot smelt adhesive and PVA latex), and is an ivory (milk white) thermoplastic adhesive material with extremely high strength, excellent drawing degree, cold resistance (-40°C) and heat resistance (120°C) after dried. The appearance of the book after bound can be stretched flatly, which is convenient for reading, and the book looks more elegant and noble.OUR paly urethane reactive disc type main machine is provided with 32-bit ARM7 series single-chip microcomputer (CPU) for temperature and variable-frequency motor program control, characterized by complete protection function, accurate and stable control, input by touching keys, 5.7inch color liquid-crystal interface with Chinese graphs and friendly operation interface. 1.Precise metering pump for adhesive pumping, independent pressure control system, and standard two-way adhesive pipe for output.2.Setting for multi-stage temperature/motor speed curves.3.Alarms for temperature upper and lower limits and damage of temperature sensor and heater.4.Blocking protection of motor/pump, adhesive level detection and alarm, intelligent fault, positioning and alarm.Note: Packaging Specification of Adhesive: 2.5 gallon, 5 gallon and 55 gallon for option.1.Because the book can be flattened to read, the cost of adhesive on book spines (0.1-0.3mm) can be effectively controlled, thereby realizing the high-quality binding of extensibility and win-win.2.The environment suitability is strong, it does not have any quality problem at high temperature of 80°C and low temperature of -40°C, its suitability to extreme hot and cold environments is far superior to other types of hot smelt adhesives, avoiding the troubles arose from in processing of printing enterprises. 3.The spine is square and flat, and has wide suitability for materials. It still has high adhesion to high gram (150-250g/M2) coating paper, short-fiber regeneration paper, reverse fiber papers, avoids the problems of degumming and page loosing, and the appearance of bound books is flat.4.The cut edges of book block is smooth, it has no trapezoid, has pliable PUR adhesive layer. The cut edges is smooth and flat in cutting, free from trapezoid, breakage, holes, and the edges of cover cuts are smooth without burrs.5.PUR with extremely strong solvent resistance is the only one binding material which resists solvent and grease, and the adhesive layer is firm. It does not generate any affect as the dry setting PUR adhesive layer is penetrated into the solvent and greases, such as ketone, acetovanillone, alcohol, gasoline, paraffine.6.When it is used for hardcover, it can save the cost, has excellent rounding performance and circular arc that is difficult to deform. The book block is coated with PUR for adhesion, and then is subjected to rounding and backing, thereby obtaining the beautiful round spine book back. PUR adhesive layer and the book block are dried in a state of round, and therefore, the permanence of round book back is maximized.7.Covered PUR bound books are easier to be recycled than books bound with EVA thermal smelt adhesive, it is an eco-friendly production process, and maximizes the environment protection.3.Company strength:
1.15 years factory experience
2.10 years export experience
3.Over one hundred professional factory workers
4.100% quality guarantee,supply all kinds of certificates
5.Good after-sales serive,we send engineers to repair machine overseas.
6.Primary products:
Automatic High Speed Flute Laminater
ZXSCM Book Case Making Machine
650UV Coating Machine
ZX-650C Manual Paper Pasting Machine
Box Making Machine
Hot Melt Gluing Machine and Gluing Machine
Table Gluing Machine
Paper Pressing Machine.etc
Welcome to visit our factory!
Anhui Innovo Bochen Machinery Manufacturing Co., Ltd. Established in early 21st century, Anhui Innovo Bochen Machinery Manufacturing Co., Ltd. is a professional company integrated with scientific research, designing, manufacturing and service in post-press equipment with rich experience. Equipped with strong technical support, the company has been earned trust from our customers both at home and abroad with high quality and comfortable after-sales service. The product is in great demand throughout the country, exported to Southeast Asia, the Middle East, America, Australia, and has acquired favorable commend by users. Our main products currently include: Album making machine, laminating machine, glue machine, glue binding machine, paper cutting machine and UV coating machine.
Over the years, "quality of survival, service and development" is the aim of our struggle. The company will continue to the advanced management idea, the spirit of excellence in research and development, scientific production technology and strong technical support and continuously improve the grade and quality. First-class products and service to our new and old customers hand in hand with the new and old customers to create a better future!
