Product Specifications
| Prod Model: |
6090 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Engraving Machine Type: |
Laser Engraving Machine |
| Usage: |
Glass |
| Power: |
High Power |
| Drive Type: |
AC Servo Drive |
| Certification: |
CE |
| Laser Type: |
CO2 |
| Control: |
Automatic |
| Current: |
AC |
| Condition: |
New |
| Warranty: |
One Year |
Product Description

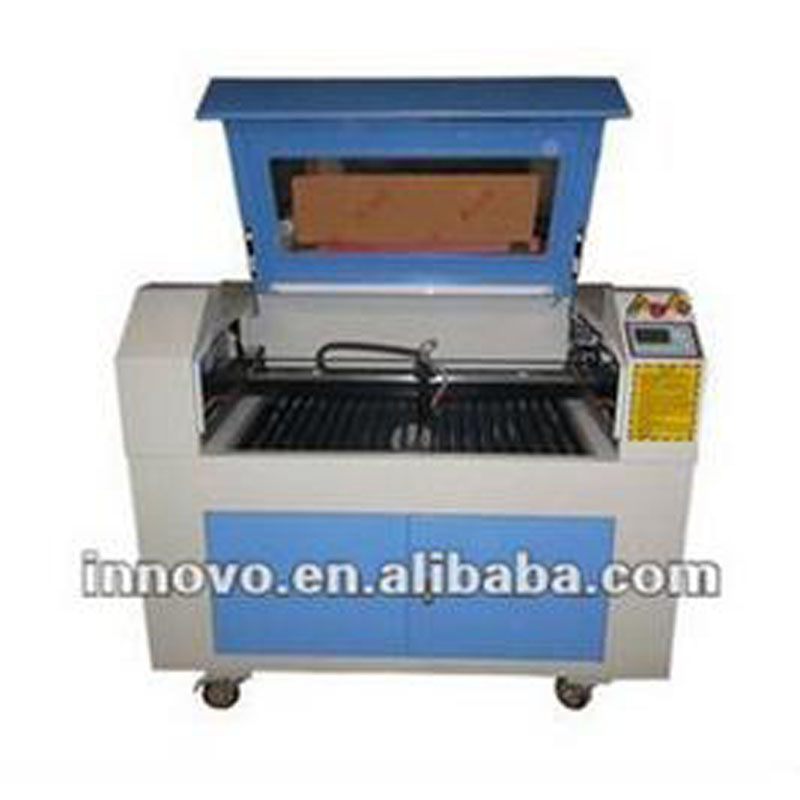

100W laser engraving machine
Specifications
1. Sealed CO2 laser tube
2.engraving various material
3.this machine can be used in different industries
HOT SALE laser engraving machine
6090 type, CO2 laser tube
Detailed Product Description
With the CO2 laser tube as energy, Combined with electronics, machinery, computer technology developed, The optical and workpiece not touch, won't scratch the surface, cut sewing is small, high precision . Is all the processing industry is the ideal choice.
Applicable materials: wood, bamboo slip, jade ware, marble , organic glass, crystal, plastic, cloth, paper, leather , rubber, coram, glass and other nonmetal material.
Applicable industries: Advertisement art ware, leather, toy, clothing, model, Architecture, Computer embroidery cut, Packaging and papering .
Technical Parameters:
| Number | Description | Parameters |
| 1 | Type of Laser | Sealed CO2 laser tube |
| 2 | Power of Laser | 60W 80 W 100W ,130W |
| 3 | Engraving area | 900*600mm |
| 4 | Volume | 1360 x 1010 x 1070
|
| 5 | Speed | 0-60,000mm/min |
| 6 | Repositioning resolution | ±0.1mm |
| 7 | working voltage | AC 110- 220V±10%, 50 - 60Hz |
| 8 | Total Power | < 1,000W
|
| 9 | Temperature | 0-45°C |
| 10 | Humidity | 5- 95% |
| 11 | Minimum shaping character | English1 x 1mm. |
| 12 | Graphic format supported | BMP,PLT, DST, DXF, and AI |
| 13 | Driving motor | Stepper |
| 14 | Type of cooling | water-cooling and protection system |
| 15 | auxiliary assembly | The exhaust fan and smoke exhaust pipe |
| 16 | Control Software | DSP control system |
| 17 | compatible software | Auto CAD Photo shop |
| 18 | Weight | 200KG
|
