Full Automatic Stop Cylinder Screen Press Jb-720A/800A/1020A

Product Specifications

Prod Model:	JB-720A/800A/1020A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	Jb-720A
Max. Paper Size:	720*520mm
Min. Paper Size:	350*270mm
Style:	Screen-process Printing Press
Structure:	Flat-bed cylinder press
Color & Page:	Single-Colour Printing Press
Print Interface:	USB2.0
System Supported:	Windowsxp32

Product Description

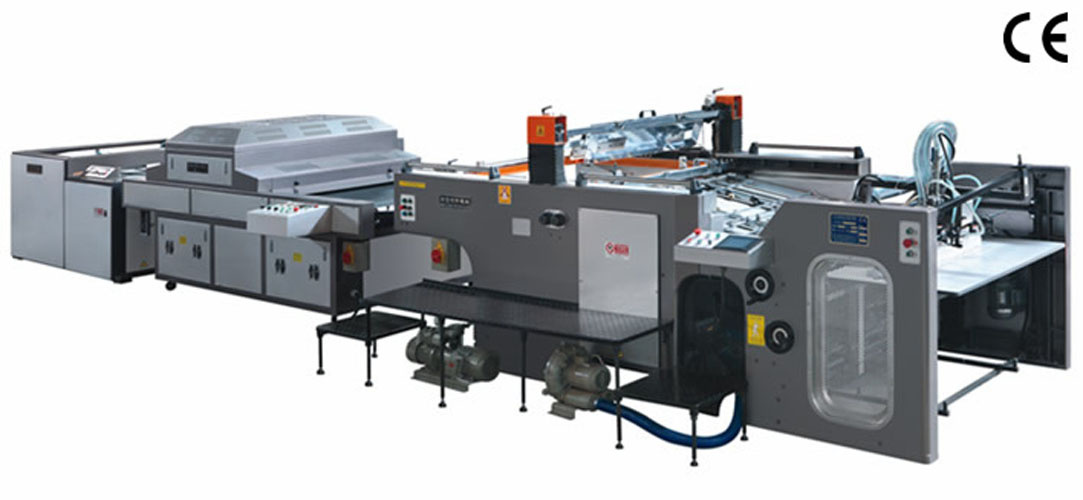

Full Automatic Stop Cylinder Screen Press
JB-720A/800A/1020A

Characteristics
JB-A Series full automatic stop cylinder screen press which adopts the classical stop cylinder technology with the advantages such as: paper located exactly and steadily, high precision, high speed, low noise, high degree auto motivation and so on, it is suitable for printing on ceramic and glass applique, electron industry(film switch ,flexible circuitry, meter panel, mobile telephone), advertisement, packing and printing,
brand, textile transfer ,special techniques etc.
Characteristics
1.Classical stop cylinder mechanism, sylinder stops step automatically to ensure the forehead of the printing stock can be sent accurately to the gripper of cylinder, which is up to extreme high precision:
at the same time, gripper of cylinder and pull side-lay both have the magic eyes for supervising if the printing stock is in correct place ,which can reduce the waster effectively.
2.The bottom of convey table with vacuum adsorption, assembled with the pull and press mechanism, ensure printing stock delivered smoothly.
3.Two cams separately control the movement of squeegee and ink -return blade: squeegee with the pneumatical pressure kept device, the printing graphics is more clearly and the ink layer is more well-proportioned.
4.The screen frame rack can be pulled out, which is easy for adjusting the register or feeding, as well as cleaning the cylinder and screen frame; at the same time, it is assembled with device to hold the ink dropped to avoid the ink drops on the cylinder.
5.Main transmission and main parts lubricate automatically, prolong the using precision and machine life in effect.
6.The whole machine controlled by PLC, can choose touch screen for operating, which is very easy and high degree automatism.
7.It can be used with JB Series screen drying machine, UV dryer, UV & IR dryer and automatic stacker to form the full automatic screen printing line.

Main Technical variables
Model	JB-720A	JB-800A	JB-1020A
Max. paper size Min. paper size Max. printing size	720*520mm 350*270mm 720*500mm	800*600mm 350*270mm 800*590mm	1020*720mm 560*350mm 1020*710mm
Paper thickness	108-400g/m2	108-400g/m2 ¡	120-400g/m2 ¡Ü10mm
Printing speed Power Total weight Overall size	1000-3600pcs/h 3P 380V 50Hz 7.8KW 3500kg 4200*2400*1600mm	1000-3300pcs/h 3P 380V 50Hz 7.8KW 3800kg 4300*2550*1600mm	1000-3000pcs/h 3P 380V 50Hz 10.5KW 5000kg 4800*2800*1600mm



1pcs	Feed board
1pcs	Cylinder and register system
1pcs	Squeegee system
1pcs	Rack disengagement

Purchasing scheme:
One: Suit for UV series printing
Full Automatic Stop Cylinder Screen Press+ UV Photo fixation machine+ Full Automatic Stacker(Optional)
Power of whole machine : 35.5kw
Power of main part : 7.8kw
Power of UV solidify machine :26.6kw( power of lamp:8kw+ blower :1.1kw+ moto:0.37kw)
Power of Automatic stacker : 1.15kw
Characteristics :
It is suitable for UV series screen printing , contains UV special effect such as UV spot varnish UV full varnish UV mosha UV refraction UV froth color crystal etc and fake against printing.
Two: Suit for color ink printing of paper plastic and other single paper materials
Full-automatic Stop Cylinder Printing Press + JB Series Screen Drying Machine
Power of whole machine : about 29.6kw
Power of main part : 7.8kw
Power of JB series screen drying machine : about 22kw( power of heating silk thread :6kw  3 groups, main motor:1.5kw, blower :0.25kw, cooling blower : 0.12kw);
When the dryer used with the printing machine together, the power is offered by the printing machine and it is necessary to start the dryer motor.
Application :
Paper and plastic, such as general paper transfer paper and so on . it meets the need of packing and upholstering products such as paper cases paper boxes and drumbeating pictures.
Three: Color Ink ,UV Series
Full-automatic Stop Cylinder Printing Press + UV&IR dryer + Automatic delivery (optional)
Power of whole machine : about 89.75kw
Power of main part : 7.8kw
Power of UV&IR dryer : 80.8kw ( IR dryer: power of lamp:2kw¡Á9(first term) ¡Á3groups , power of blower:0.55kw¡Á2¡Á3groups, UV dryer: power of lamp : 8kw¡Á2,Power of blower: 1.1kw,Cooling device power of blower : 0.04kw¡Á4¡Á2 groups, Colling group air-condition: 0.75kw¡Á2,Power of motor: 0.75kw ),Adsorption fan: 0.55KW¡Á7
Power of Automatic delivery : 1.15kw
Characteristics:
Especially suitable for whole frame
UV Series : UV spot varnish ¡¢UV full varnish UV mosha UV refraction UV froth color crystal etc and fake against printing .
Color ink series : all silk printing color ink series.
Remark: Will no inform if the introduced optional have refigured
