| Price: | US $ 12.99-15/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union,Paypal |

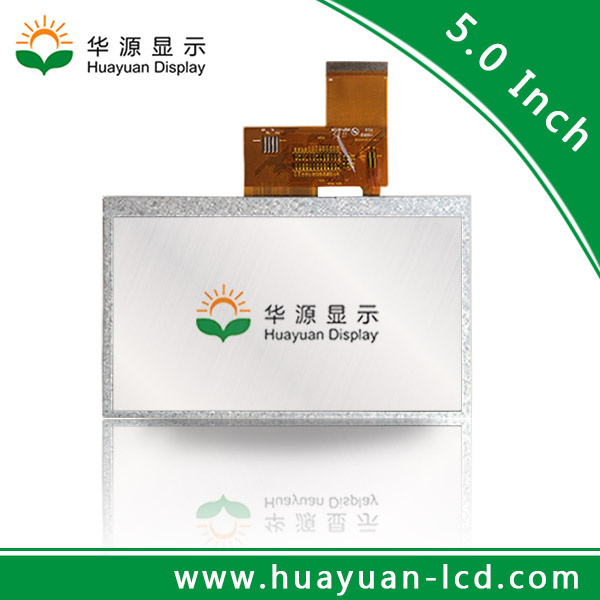

| Prod Model: | TFT108A |
|---|---|
| LCD Type: | TFT Transmissive Normal White |
| Operating Temperature(Degree Celsius): | -20ºC~70ºC |
| Storage Temperature(Degree Celsius): | -30ºC~80ºC |
| Viewing Direction: | 6:00 |
| Pixel: | 800*480 |
| Active Area: | 108*64.8 |
| Module Size: | 120.7*75.8*3.1 |
| FPC Cable: | 40 |
| System Interface : | 8bits 8080 Parallel Interface |
| Pixel Arrangement : | RGB Vertical Stripe |
| Application: | Graphic Design |
| Feature: | LED Backlight Display |
| Type: | TFT |
| Widescreen: | Not Widescreen |
| Response Time: | 10ms |
| 3D: | Not 3D |
| Screen Size: | 5" |
| Aspect Ratio: | 3:5 |
| Optimum Resolution: | 800*480 |
| Interface Type: | RGB |
| Model | TFT108A |
| Lcd type | Tft transmissive normal white |
| Pixel | 800*480 |
| Module size | 120.7*76.3*3.1 |
| Pixel arrangement | Island rgb type |
| Driver ic | Ili6122/ili5960 |
| Operating temperature(degree celsius) | -20ºc~70ºc |
| Storage temperature(degree celsius) | -30ºc~80ºc |
| Viewing direction | 6 o'clock |
| Approx.Weight | Tbd |
| Backlight | Led,white |
| System interface | Digital |
| Faq |
| Q1:Are you a factory or trading company? |
| A1:We are manufacturer. |
| Please refer to our company show |
| Q2:Where is your factory located?How can i visit there? |
| A2:Our factory is located in hunan province, china. Welcome to visit our factory.We could pick you up in changsha huanghua airport, or high-speed train zhuzhou xi station. |
| Q3:How can i get some samples? |
| A3:We don't provide free one, but we will minus the extra price when you reorder with the suitable quantity. And you will win the 3% discount. |
| Q4:How does your factory do regarding quality control? |
| A4:Quality is the priority.We always attach great importance to quality controlling from the start to the end. Our factory has gained iso9001, rohs, sgs certification. |
| Packaging details:In an anti-statics bag packed in carton or according to the customer's requirement |
| Delivery time:5-7 days for sample and 25-30 days for mass production. |
| Cooperate supplier:Tianma, innolux, sumsung, varitronix, cpt, boe, hsd, chi mei |
| Exhibition information:Our company will participate 2017 electronics exhibition in Korea. |
| Related products: |
| Character lcd (8x1, 8x2, 16x1, 16x2, 16x4, 20x2, 20x4, etc.) Graphic lcd (122x32, 128x64, 192x64, 240x128, 320x240, etc.) Tft lcd (1.44", 1.77", 2", 2.2", 2.4", 2.8", 3", 3.2", 3.5", 4", 4.3", 5", 5.5", 5.7", 6.2", 7", 8", 9", 9.7", 10.1", 10.2", 10.4", 17" and so on. Tn/stn/htn/va segment customized lcd Led backlight panel All kinds of lcd module can customized. |
| Application: |
| Autoelectronics, 3d&shutter, meters&instrument, telecommunication, Domestic electrical appliance(household appliance), fuel dispensers, office equipment, Medical &health equipment, business related facility, education electronics. |
| Contact us:Send inquiry to us to get newest price and information. |
| Tel:+86-731-28668968 |
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| Nc | Nc | Nc | Nc | Vlcd | V+ | V- | B- | B+ | Vss |
| 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 |
| Vdd | Bm1 | Bm0 | D7 | D6 | D5 | D4 | D3 | D2 | D1 |
| 21 | 22 | 23 | 24 | 25 | 26 | 27 | 28 | 29 | 30 |
| D0 | Wr1 | Wr0 | Cd | Rst | Cs0 | Nc | Nc | Nc | Nc |
| 1.Chracter lcd (8x1, 8x2, 16x1, 16x2, 16x4, 20x2, 20x4 , etc.) |
| 2.Graphic lcd (122x32, 128x64, 192x64, 240x128, 320x240 , etc.) |
| 3.Tft lcd (1.44", 1.77", 2", 2.2",2.4", 2.8", 3",3.2", 3.5", 4.3", 5", 5.5", 5.7", 6.2", 7", 8", 9", 9.7".10.1", 10.2", 10.4",17" , etc. |
| 4.Tn/stn/htn/va segment custom lcd ,led backlight panel |
| All kinds of lcd module can customize according to customer`s requirement. |
