Product Specifications
| Prod Model: |
VISLCD-101HY171A |
| LCD Type: |
TFT |
| Viewing Direction: |
12 O'clock |
| Operating Temperature: |
-20~+70 |
| Active Area(W×h): |
222.27X125.28 mm |
| Controller: |
Hx8282A14+Hx8696 |
| Backlight: |
3X13-LEDs (White) |
| Interface: |
Lvds |
| Screen Size: |
≤17" |
| Application: |
Outdoor |
| Aspect Ratio: |
16:10 |
| Feature: |
Touch Display |
| Type: |
TFT |
| Widescreen: |
Not Widescreen |
| Response Time: |
6ms |
| 3D: |
Not 3D |
| Optimum Resolution: |
1024X600 |
| Interface Type: |
Lvds |
Product Description
TFT 10.1 inch LCD touch screen monitor with LVDSGeneral Specification
Place of Origin:Guangdong China (Mainland )
Brand Name:Huayuan
Model Number: TFT171A
Size: 10.1 inch tft touch display
LCD Type:TFT
Display color:16.7M
Viewing Direction:12 O'Clock
Gray scale inversion direction: 6 O'Clock
Operating temperature:-20~+70 ºC
Storage temperature: -30~+80 ºC
Module size: Refer to outline drawing mm
Active Area(W×H):222.27X125.28 mm
Number of Dots:1024×600 dots
Controller: HX8282A14+HX8696
Power Supply Voltage: 3.3 V
Backlight:3X13-LEDs (white)
Interface: LVDS

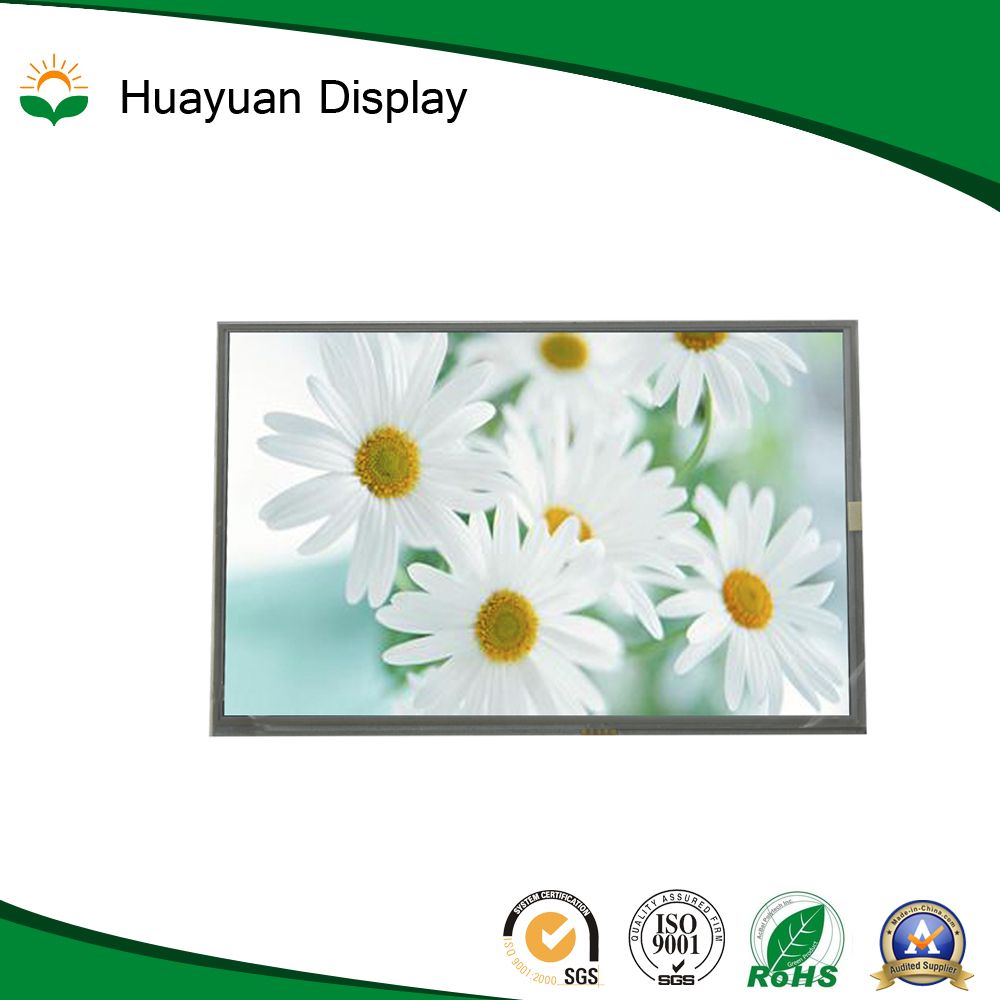

TFT171A is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC,
FPC, a back light unit. The 10.1 display area contains 1024 x 600 pixels and can
display up to 16.7M colors. This product accords with RoHS environmental criterion.
FAQ
| Q1:Are you a factory or trading company? | A1: We are manufacturer.
Please refer to our company show |
| Q2:Where is your factory located?How can I visit there? | A2:Our factory is located in Hunan,China.Welcome to visit our factory.
We could pick you up in Changsha Huanghua Airport, or High-speed train
Zhuzhou Xi station. |
| Q3:How can I get some samples? | A3:We don't provide free one, but we will minus the extra price when you
reorder with the suitable quantity. And you will win the 1-3% discount. |
Q4:How does your factory do regarding
quality control? | A4:Quality is the priority.
Our factory has gained ISO9001 RoHS SGS certification. |
| Cooperate Supplier | Tianma, Innolux, Sumsung, LG, Varitronix, CPT, BOE,HSD,Chi mei |
| Company development plan | Our company prepared attend electronics show in Korea,2017 |
| Packaging & Delivery | Packaging Details: in an anti-statics bag packed in carton or according to the customer's requirement
Delivery Detail: 5-7 days for sample and 25-30 days for mass production |
Related Products
| 1. Chracter lcd (8x1, 8x2, 16x1, 16x2, 16x4, 20x2, 20x4 , etc.) |
| 2. Graphic lcd (122x32, 128x64, 192x64, 240x128, 320x240 , etc.) |
| 3.TFT LCD (1.44", 1.77", 2", 2.2",2.4", 2.8", 3",3.2", 3.5", 4.3", 5", 5.5", 5.7", 6.2", 7", 8", 9", 9.7".10.1", 10.2", 10.4",17" , etc. |
| 4. TN/STN/HTN/VA segment custom lcd,LED backlight panel |
| All kinds of LCD Module can customize according to customer`s requirement. |
Safety
Liquid crystal is poisonous. Do not put it in your mouth. If liquid crystal touches your
skin or clothes, wash it off immediately by using soap and water.
1. Store the module in a dark room where must keep at 25±10ºC and 65%RH or less.
2. Do not store the module in surroundings containing organic solvent or corrosive gas.
3. Store the module in an anti-electrostatic container or bag.
Application:
Autoelectronics,3D&Shutter,Meters&Instrument,Telecommunication,Domestic electrical appliance(Household appliance), Fuel dispensers, Office equipment, Medical &health equipment, Business related facility, Education electronics
We specialized in sales of LCD/LCM/TFT liquid crystal displays. Its products are widely used in electric power terminal, numerical control, Instrumentation, medical equipment, security, tax control equipment Industrial automation and other fields.
The company can provide various specifications of TN, STN, FSTN. TFT LCD screens and solutions.
Hunan Huayuan Display Technology Co. Ltd., and Shenzhen Huayuan Display Technique Co. Ltd., which are wholly owned subsidiaries of Huayuan holding, is responsible for the R & D, production and sales of all kinds of LCD, LCM liquid crystal displays.
Hunan Huayuan Display Technology Co., Ltd. is located in Zhuzhou high tech Zone, Hunan Province. The plant area occupies 6000 square meters, with a 100000 grade purification workshop, 2 automatic SMT production lines, the aging room, laboratory and other supporting facilities. The company has a professional R & D team with high quality and high education. At the same time it has a close cooperation with Hunan University, Hunan University of
Technology and other famous domestic universities, research Institutions to focus on R & D, production of various specifications of TN, STN, FSTN, TFT modules, and a variety of customized LCD displays.
Huayuan Holding always adheres to the business philosophy of "innovation, excellence, integrity and dedication, " and strives to make the company become a global well-known enterprises.
