Product Specifications
| Prod Model: |
ZZ3317N3567W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Enginetmodel: |
Wd615.69/Wd615.47 |
| Number Of Cylinder: |
6 |
| Displacement(L): |
9.726 |
| Bore(mm): |
126 |
| Stroke(mm): |
130 |
| Fuel: |
Diesel |
| Compression Ratio: |
38.1HP/1 |
| Engine Oil Filling Quantity(L): |
19 |
| Gearboxtmodel Option: |
Hw15710,Hw19710,Fast Rt11509c |
| Speeds: |
(8)9 Forward and 1 Reverse |
| Transmission Type: |
Automatic |
| Power: |
Diesel |
| Load Capacity: |
1-10t |
| Emission Standard: |
Euro 2 |
| Drive Wheel: |
8?á4 |
| Engine Capacity: |
＞8L |
| Seats: |
≤5 |
| Horsepower: |
451-500hp |
| Tire Certification: |
ISO |
| Tire Design: |
Radial |
| Dumping Type: |
Front Lifting Style |
| Condition: |
New |
Product Description
Features of Sinotruck How 8X4 12 Wheel Dump Topper Truck for Sale1:Reliable:
Lateral stability: Patent and tailored frame design
Safety and reliability: New type brake drum
2:Low Fuel Consumption:
High efficiency Powertrain: Optimized power transmission design
Low wind resistance: Streamlined cabin design
3,Euro type cabin:
Latest international style cabin
Crystal and upright mounted headlamp
4,Comfortable:
Flat floor cabin, enlarge the driver's space;
Noise isolation technology;
Ergonomic trim and seats;
Tilted footstep on front bumper;
Streamlined cabin design;
Ergonomic dashboard.
Specification of Sinotruck How 8X4 12 Wheel Dump Topper Truck for Sale | HOWO 8×4 DUMPER TRUCKS |
| ZZ3317N3567W |
| Engine | Model | WD615.69/WD615.47 |
| | Emission | EURO 2 |
| | Maximum output | 336HP (247KW)/2200rpm /371HP(273KW)/2200rpm |
| | Maximum torque | 1300Nm/1300-1600rpm /1470Nm/1300-1600rpm |
| | Number of cylinder | 6 |
| | Displacement(L) | 9.726 |
| | Bore(mm) | 126 |
| | Stroke(mm) | 130 |
| | Fuel | Diesel |
| | Compression ratio | 38.1hp/1 |
| | Engine oil filling quantity(L) | 19 |
| | Specification | 6-cylinder in-line with water cooling,turbo-charging and intercooling |
| Gearbox | Model Option | HW15710,HW19710,FAST RT11509C |
| | Operation | Manual |
| | Speeds | (8)9 Forward and 1 Reverse |
| Front Axle | Model | HF9 |
| | Rated load(kg) | 9000 |
| | Maximum steering angle of inner wheel(.) | 45 |
| | Kingpin inclination(.) | 3 |
| | Camber angle(.) | 1 |
| | Spring gage(mm) | 850~900 |
| | Brake | Air drum brake |
| | Min rim size(inch) | 20 |
| Driving Axle | Model | HC16(Tandem axle) |
| | Type | Central single reduction + hub reduction,welded axle housing |
| | Rated load(kg) | 2×13000 |
| | Ratio | 3.93/4.42/4.80/5.73/6.72/9.49 |
| | Spring gage(mm) | 1020 |
| | Wheel tread(mm) | 1850 |
| | Input flange | φ180 |
| | Differential device | Inter-wheel and inter-axle |
| | Brake | Drum φ420×220 |
| | Weight(Without lubricants)(kg) | 1 st axle:895/2nd axle:815 |
| | Wheel bolt(mm) | φ335-10×M22×1.5 |
| | Min rim size(inch) | 20 |
| | Lubricants(L) | GL5 85W-90 |
| Cab | Model | HW76 |
| | Bunk | 1 |
| | Air Conditioner | With |
| Steering | ZF power steering,model ZF8098,hydraulic steering with power assistance Ratio:26.2 |
| Electrics | Operating voltage | 24 V,negative grounded |
| | Starter | 24 V,5.4 Kw |
| | Alternator | 3-phrase,28 V,1500 W |
| | Batteries | 2×12 V,165 Ah |
| | Others | Cigar-lighter,horn,headlamps,fog lights,brake lights,indicators and reverse light |
| Tyre | Rims | 8.5-20,10 hole-steel |
| | Option | 11.0020 Radial Tyres,12.00R20 Radial Tyres |
| Brake | Service brake | Dual circuit compressed air brake |
| | Parking brake(emergency brake) | Spring energy,compressed air operating on rear wheels |
| | Auxiliary brake | Engine exhaust brake |
| Bulk(Cargo Box) | Lifting Option | Front Lifting,Ventral Lifting |
| | L × W × H(mm) | 7300×2300×1500 |
| | Working Volume(M3) | 25.2 |
| Dimensions | Wheel base(mm) | 1800+3500+1350 |
| | Overall length(mm) | 10100 |
| | Overall width(mm) | 2516 |
| | Overall height(mm) | 3310 |
| Weight(kg) | Permissible loading capacity(kg) | 32000 |
| | Chassis dead weight(kg) | 13900 |
| | Front axles loading capacity(kg) | 9000 |
| | Rear axles loading capacity(kg) | 13000×3 |
| Performance | Maximum driving speed(km/h) | 75 |
| | Maximum grade ability(%) | 39 |
| | Minimum ground clearance(mm) | 298 |
| | Minimum turning circle(m) | 21 |
| | Fuel consumption(1/100 km) | 40 |
| Option | Color | Blue/White/Yellow/Green/Red |
| | Brake | ABS,EVB |
| | Engine | EURO 2,EURO 3,EURO 4 |

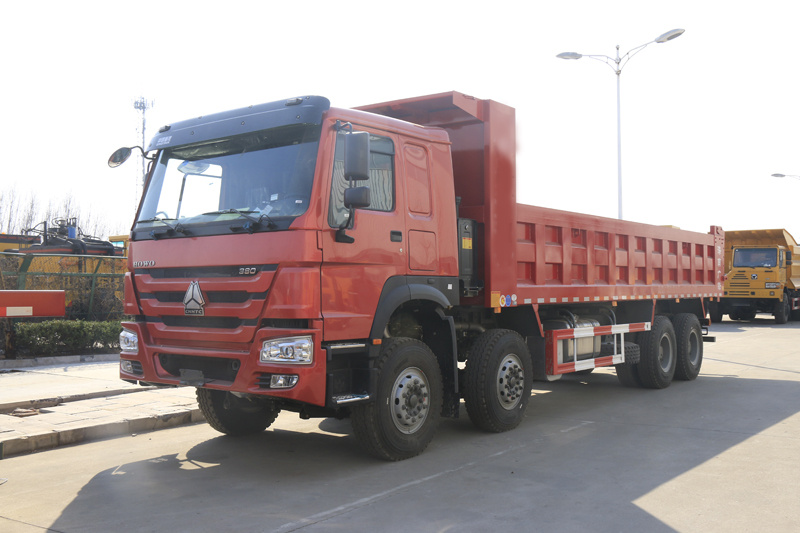

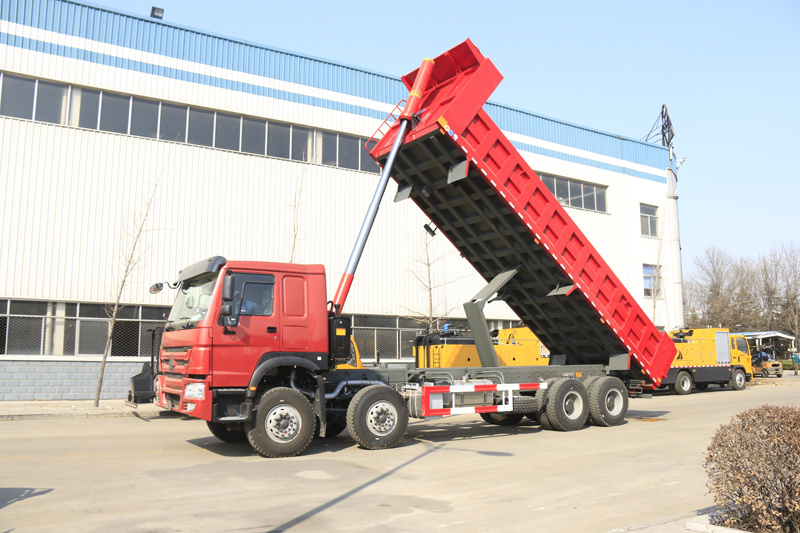

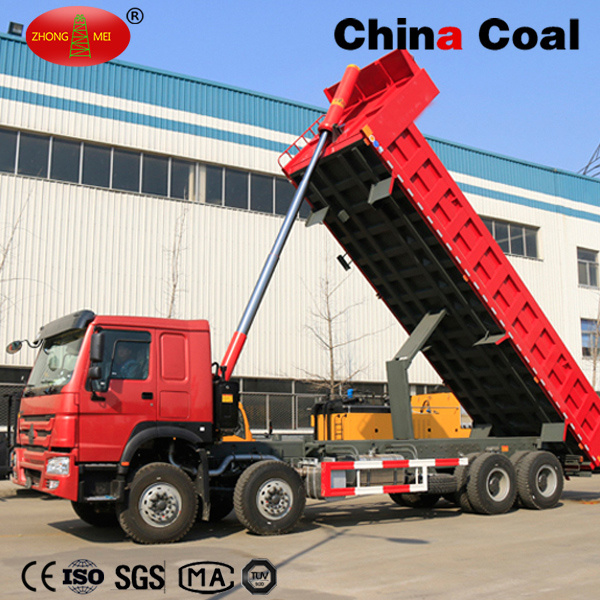

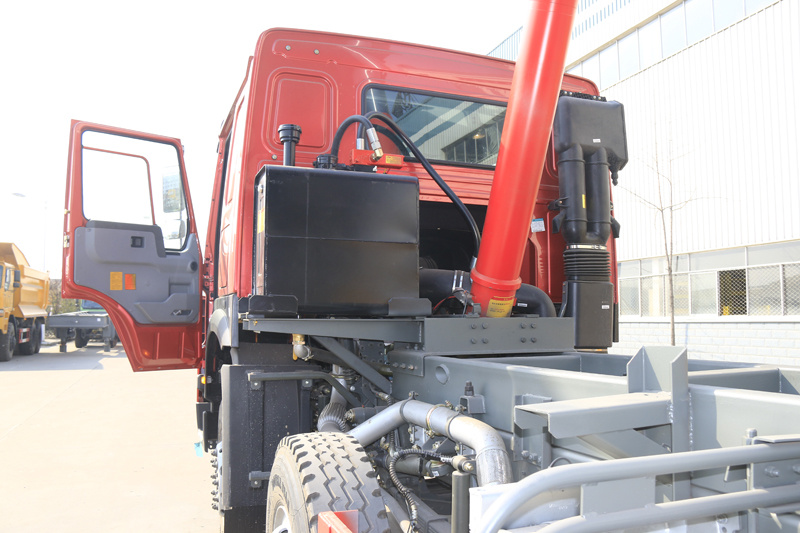

Photo Of Sinotruck How 8X4 12 Wheel Dump Topper Truck for Sale
