Product Specifications
| Prod Model: |
WD615.69/WD615.47 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Number Of Cylinder: |
6 |
| Displacement(L): |
9.726 |
| Bore(mm): |
126 |
| Driving Axle Model: |
Hc16(Tandem Axle) |
| Rated Load(Kg): |
2*13000 |
| Ratio: |
3.93/4.42/4.80/5.73/6.72/9.49 |
| Spring Gage(mm): |
1020 |
| Wheel Tread(mm): |
1850 |
| Differential Device: |
Inter-Wheel and Inter-Axle |
| Brake: |
Drum 420*220 |
| Transmission Type: |
Automatic |
| Power: |
Diesel |
| Load Capacity: |
21-30t |
| Emission Standard: |
Euro 2 |
| Drive Wheel: |
8?á4 |
| Engine Capacity: |
＞8L |
| Seats: |
≤5 |
| Horsepower: |
251-350hp |
| Tire Type: |
Inner Tube |
| Tire Certification: |
ISO |
| Tire Design: |
Tubeless |
| Dumping Type: |
Side Dumping Style |
| Condition: |
New |
Product Description
Introduction of Transportation 8*4 Heavy Duty Mining Dump Tipper TruckTransportation 8*4 heavy duty tipper truck, tipper truck, dump truck, 8*4 heavy duty tipper truck, volume sand tipper truck, right/left hand drive tipper truck
we supply various dump trucks/tipper truck, tractor trucks, semi-trailers, cargo trucks. All the engines, cabs, axles, gearboxes, frames and other key components are substantially developed and made by SINOTRUCK to ensure the best quality and the matching among main assemblies. series trucks use original ZF8098 steering system, to continue the leading position at home and abroad.
Features of Transportation 8*4 Heavy Duty Mining Dump Tipper Truck 1:Reliable:
Lateral stability: Patent and tailored frame design
Safety and reliability: New type brake drum
2:Low Fuel Consumption:
High efficiency Powertrain: Optimized power transmission design
Low wind resistance: Streamlined cabin design
3,Euro type cabin:
Latest international style cabin
Crystal and upright mounted headlamp
4,Comfortable:
Flat floor cabin, enlarge the driver's space;
Noise isolation technology;
Ergonomic trim and seats;
Tilted footstep on front bumper;
Streamlined cabin design;
Ergonomic dashboard.
Parameter of Transportation 8*4 Heavy Duty Mining Dump Tipper Truck | Engine | Model | WD615.69/WD615.47 |
| | Emission | EURO 2 |
| | Maximum output | 336HP (247KW)/2200rpm /371HP(273KW)/2200rpm |
| | Maximum torque | 1300Nm/1300-1600rpm /1470Nm/1300-1600rpm |
| | Number of cylinder | 6 |
| | Displacement(L) | 9.726 |
| | Bore(mm) | 126 |
| | Stroke(mm) | 130 |
| | Fuel | Diesel |
| | Compression ratio | 38.1hp/1 |
| | Engine oil filling quantity(L) | 19 |
| | Specification | 6-cylinder in-line with water cooling,turbo-charging and intercooling |
| Gearbox | Model Option | HW15710,HW19710,FAST RT11509C |
| | Operation | Manual |
| | Speeds | (8)9 Forward and 1 Reverse |
| Front Axle | Model | HF9 |
| | Rated load(kg) | 9000 |
| | Maximum steering angle of inner wheel(.) | 45 |
| | Kingpin inclination(.) | 3 |
| | Camber angle(.) | 1 |
| | Spring gage(mm) | 850~900 |
| | Brake | Air drum brake |
| | Min rim size(inch) | 20 |
| Driving Axle | Model | HC16(Tandem axle) |
| | Type | Central single reduction + hub reduction,welded axle housing |
| | Rated load(kg) | 2×13000 |
| | Ratio | 3.93/4.42/4.80/5.73/6.72/9.49 |
| | Spring gage(mm) | 1020 |
| | Wheel tread(mm) | 1850 |
| | Input flange | φ180 |
| | Differential device | Inter-wheel and inter-axle |
| | Brake | Drum φ420×220 |
| | Weight(Without lubricants)(kg) | 1 st axle:895/2nd axle:815 |
| | Wheel bolt(mm) | φ335-10×M22×1.5 |
| | Min rim size(inch) | 20 |
| | Lubricants(L) | GL5 85W-90 |
| Cab | Model | HW76 |
| | Bunk | 1 |
| | Air Conditioner | With |
| Steering | ZF power steering,model ZF8098,hydraulic steering with power assistance Ratio:26.2 |
| Electrics | Operating voltage | 24 V,negative grounded |
| | Starter | 24 V,5.4 Kw |
| | Alternator | 3-phrase,28 V,1500 W |
| | Batteries | 2×12 V,165 Ah |
| | Others | Cigar-lighter,horn,headlamps,fog lights,brake lights,indicators and reverse light |
| Tyre | Rims | 8.5-20,10 hole-steel |
| | Option | 11.0020 Radial Tyres,12.00R20 Radial Tyres |
| Brake | Service brake | Dual circuit compressed air brake |
| | Parking brake(emergency brake) | Spring energy,compressed air operating on rear wheels |
| | Auxiliary brake | Engine exhaust brake |
| Bulk(Cargo Box) | Lifting Option | Front Lifting,Ventral Lifting |
| | L × W × H(mm) | 7300×2300×1500 |
| | Working Volume(M3) | 25.2 |
| Dimensions | Wheel base(mm) | 1800+3500+1350 |
| | Overall length(mm) | 10100 |
| | Overall width(mm) | 2516 |
| | Overall height(mm) | 3310 |
| Weight(kg) | Permissible loading capacity(kg) | 32000 |
| | Chassis dead weight(kg) | 13900 |
| | Front axles loading capacity(kg) | 9000 |
| | Rear axles loading capacity(kg) | 13000×3 |
| Performance | Maximum driving speed(km/h) | 75 |
| | Maximum grade ability(%) | 39 |
| | Minimum ground clearance(mm) | 298 |
| | Minimum turning circle(m) | 21 |
| | Fuel consumption(1/100 km) | 40 |
| Option | Color | Blue/White/Yellow/Green/Red |
| | Brake | ABS,EVB |
| | Engine | EURO 2,EURO 3,EURO 4 |

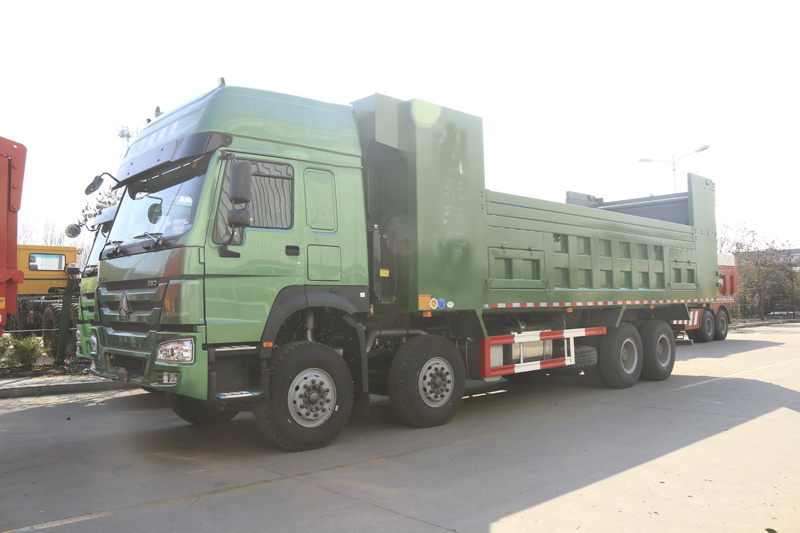

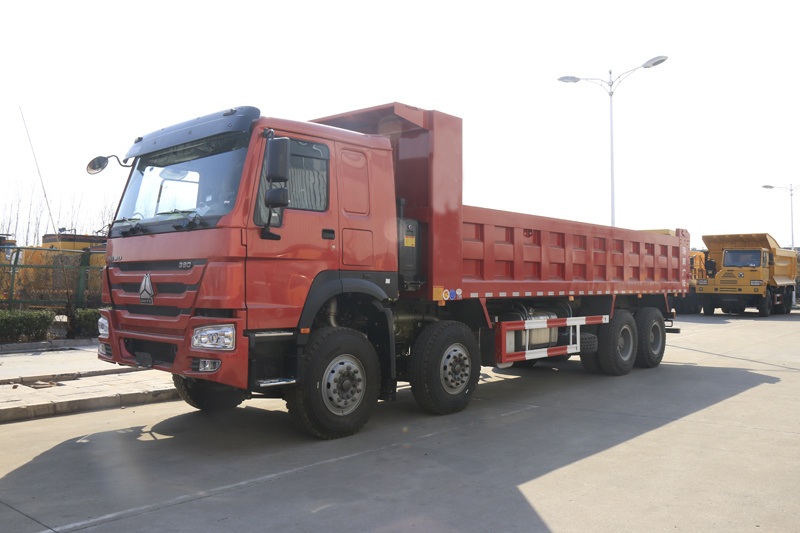

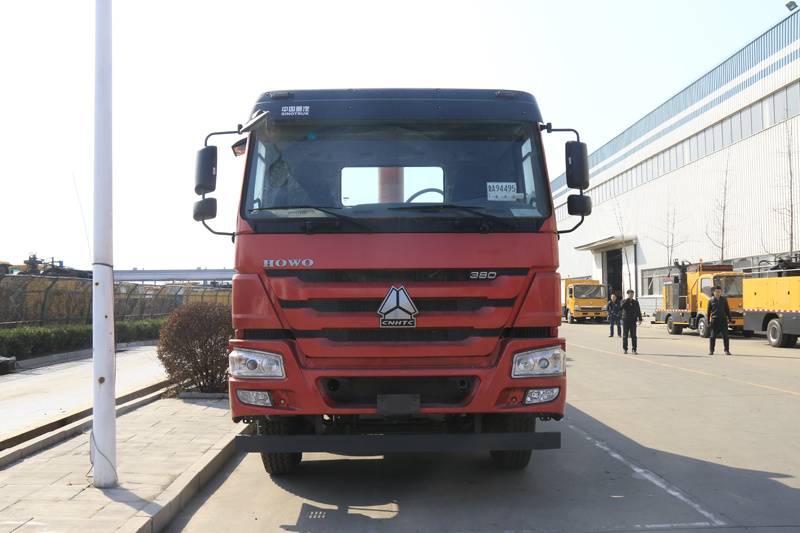

Photos of Transportation 8*4 Heavy Duty Mining Dump Tipper Truck
