Product Specifications
| Prod Model: |
DEK-1390 |
| Laser Medium: |
CO2 |
| Laser Power: |
40W/60W/80W/100W |
| Engraving Area (mm): |
900 X 600 1300 X 900 1300 X 2500 |
| Gross Power: |
1200W 1500W 2500W |
| Laser Type: |
Reci/Yongli CO2 Laser Tube |
| Cutting Depth: |
Acryl 0-20mm |
| Engraving Speed: |
0-500mm/S |
| Power Supply: |
220V±10% 50Hz or 110V±10% 60Hz |
| Software Supported: |
Artcut, Coreldraw, Photoshop, Autocad |
| Graphic Format Supported: |
Plt, Dxf, BMP, JPG, GIF, Pgn, TIF |
Product Description

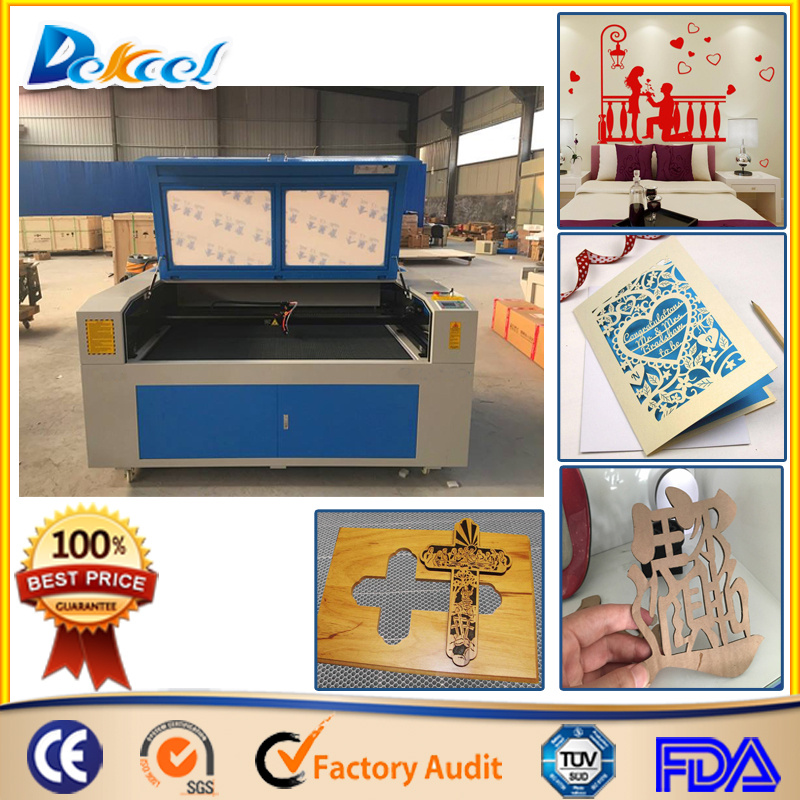

Sale Price China Co2 Laser Acrylic/wood/Rubber 1390 Cutter
China co2 laser acrylic/wood/rubber 1390 cutter features:
1)100W sealed CO2 glass laser tube with optional upgrades from 100 to 150 watts
2)Expanded 36x55" engraving area with 4 over sized material pass thrus
3)LaserWORKS 8 stand alone software / driver with direct output capability from graphics programs
4)New! Five (5) material Tru-Pass-Thru options for virtually unlimited material flexibility
5)NEW! Auto Focus assembly automatically regulates the start-up distance between the laser head and the material
6)NEW! Inline Beam Combiner accurately illuminates red dot over your material for improved accuracy and alignment
7)New! U.S. manufactured optics by American Photonics. Proven 14% improved beam transmission vs. imported lenses.
8)Illuminated LCD panel for automated laser head control
9)Motorized Z-Table lowers Z-axis 7" for tall materials.
10)Both Honey Comb and Knife Blade Platforms included for securing maximum material capacity
11)Vacuum table under the Z-table captures finished product into sliding tray.
12)Quality CNC machined parts in stock for long term service and reliability
13)Upgraded ball bearing Y axis guide rails promotes quiet, smooth & precise laser movement
14)Optional Rotary Roller or Chuck attachment for cylindrical objects
15)Windows 10, 8, 7 (64 or 32 bit), XP, 2000 compatible
16)Dedicated USA technical support Mon - Saturday
17)We can serve you via. phone, email, chat, or remote computer access!
18)12months Warranty covers CO2 Laser machine parts and laser tube.
Technology Parameters of co2 laser cutter for wood
| Model | DEK-9060 | DEK-1390 | DEK-1325 |
| Laser power: | 40w/60W | 60w/80W | 80w/100w/120w |
| Engraving Area (mm) | 900 x 600 | 1300 x 900 | 1300 x 2500 |
| Gross power | 1200W | 1500W | 2500W |
| Laser type: | Reci/Yongli CO2 Laser tube |
| Cutting depth: | acryl 0-20mm |
| Engraving speed : | 0-500mm/s |
| Cutting speed: | 0-600mm/s |
| Resetting positioning accuracy: | <0.01mm |
| Maximum forming character: | English:1.5 x 1.5mm |
| Power supply: | 220V10% 50HZ or 110V10% 60HZ |
| Software supported: | ArtCut, CorelDraw, PhotoShop, AutoCAD |
| Graphic format supported: | PLT, DXF, BMP, JPG, GIF, PGN, TIF |
| Engraver for Curve surfaces: | we can provide rotary system so as to engrave on curse surfaces |
| Water Cooling: | Yes |
| Assistant Equipment: | Water pump | Exhaust Fan | Aluminum alloy worktable |
| Optional Spare Parts: | Laser Tube | Rotary System | Cooling water system |
| Recommended Spare Parts/Consumables | Laser Tube and Lens |
APPLICAPABLE INDUSTRIES of co2 laser cutting machine for acrylic
Craft gifts,furniture,advertising signs,model marking,food,packaging,electronic components,pharmaceutical packaging,printing plate,shell plate,so on.
Materials of co2 laser cutting&engaraving glass mahcine
Acrylic, Perspex, Plastics, PVC, Glass, Acrylic Mirror, Leather, Slate, Stone, Paper, Granite, Wood, Organic Glass, Crystal, Garments, Jeans, Paper, Leather, Rubber, Stones, Ceramic, Mobile phones.
PROFESIONAL SERVICE OF THE co2 laser cutting cloth machine
From producing in our factory to shipping the goods directly to your port or company,we supply all-in-one service for our customer.With the rich experience of dealing with shipping issue and custom clearance. We can make the most economical delivery plan for you and ensure the quick leading time. No matter quantity is our MOQ or very big, we take each customer a
After-Sales Service
1.Quality guaranty:The main parts(excluding the consumables)of desktop fiber laser marking machine shall be changed free of charge when problems happened during the warranty period.
2.Lifetime maintenance free of change.
3.Free training course at our plant.
Detailed manual and video to guide the users how to use the ldekstop fiber laser marking machine and maintenance, also supply the specification settings for the speed and power to mark various materials.
Our staff can be sent to your company to install or adjust if necessary.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support by email or calling.If you meet the problems, we can help to solve it with pictures,video,etc
6.The desktop fiber laser marking machine has been adjusted before delivery.
FAQ
Question1: What is the Superiority of Co2 Laser Cutting Machine with following head compared with ordinary laser marking machine?
Reply: 1 More fast marking speed
2 More stable, do not need to repair usually, the working life is about 100000 hours
3 The main parts are from abroad, like the fiber laser, Galvanometer
4 Portable
Questions2: I want to do marking for the round object with this machine, like ring, is it ok?
Reply: yes, no problem, with a rotary device, it will be ok.
Question3: Could I send some samples to you for test? We want to know the marking quality
of our order.
Reply: Of course no problem, welcome to send some samples to us, and we will test it with our machine,
then send the marked samples back to you for check.
