Product Specifications
| Prod Model: |
Dek-110*110 mm |
| Engraving Depth: |
0.01~0.2mm |
| Control Software: |
Ezcad |
| Graphic Format Supported: |
Ai, BMP, Dst, Dwg, Dxf etc |
| Working Accuracy: |
0.001mm |
| Guaranty: |
18 Month |
| Quality Of Laser Beam: |
M2<1.5 |
| Engraving Speed: |
≤12000mm/S |
| Laser Length: |
1060nm |
| Minimum Line Width: |
0.01mm |
| Minimum Character: |
0.05mm |
Product Description

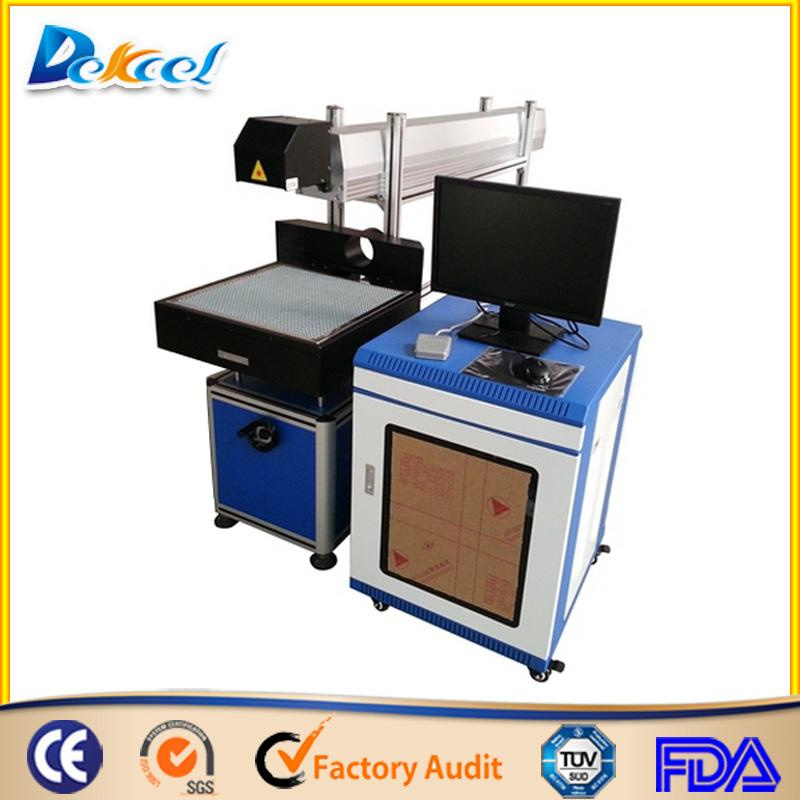

Feature of cnc co2 laser marker
1. Adopted back focalization, laser power is controlled by the software and serially adjustable.
It is applicable to fine marking on nonmetal materials with low requirements.
2. Adopts RF metal laser tube, imported from USA, characterized by excellent performance and long life time <20k hours>.
3. Adopting high-speed galvanometer system with high speed, high precision and stable performance.
4. Adopting imported optics lens, low loss, excellent focalization performance.
5. The marking software is mightiness ,under WINDOWS interface, compatible with CORELDRAW, AUTOCAD, PHOTOSHOP etc. a variety of software output files. Support PLT, AI, DXF, BMP and other documents, directly using SHX, TTF font. Support automated coding, serial number, batch number, date,
bar code and two-dimensional code marking.
6. Can quickly mark letter,figure,graphics or autocoding ,serial No., batch No.,barcode,2 D code, etc. on metal or nonmetal surface(plastic,silicon or porcelain,etc.) which are precise, permanent.,non-polluting
and environment-friendly.
7. Be applicable to production line for flying marking.
8. Rotary worktable system is optional, thus, accomplish marking on cambered surface.
Applicable materials of laser marker for 3d crystal:
This machine can be used in wood,paper,leather,cloth,plexiglass epoxy,acrylic,unsaturated polyester resinand other non-metal materials.
Applicable industry:
it can be widely used in leather ,food ,beverage,cloth,electronic,meter,communication instruments,package,etc.can be cooperate with production for online marking.
Technical Parameters of co2 laser marking machine:
| brand | Coherent/Synred/Chinese brand |
| Laser Power | 30W/55W/100W/150W RF Tube | 50W/60W/80W/100W CO2 Glass Tube |
| Working Area | 110*110mm/200*200mm/300*300mm |
| Laser Wavelength | 10.64μm |
| Response Time | 0.5ms |
| Frequency of Pulse | 20KHz |
| Max Marking Depth | 0-6mm |
| Marking Speed | 0-7000mm/s |
| Minimum Line Width | 0.1mm |
| Minimum Character | 0.3mm*0.3mm |
| Repeatability Accuracy | ±0.005mm |
| Resolution Ratio | 0.1mm |
| Graphic Format Supported | bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc. |
| Unit Power | ≤2KW |
| Power | 220V/50Hz/10A |
| Cooling Method | air /water Cooling |
After-sale service:
1.In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products
2.Every machine must be tested before delivery for 8 hours , all of them are absolutely qualified.
3.18 months guarantee of the whole machine.
4.Main parts(excluding the consumables) shall be changed free of charge if there is any problem
during the warranty period.
5.Lifetime maintenance free of charge.
6.We will provide the consumable parts at an agency price when you need replacement.
7.Machine has been adjusted before delivery.
8.Our staff can be sent to your company to install or adjust if necessary
FAQ:
Q1 For offer the most suitable machine,how should i do ?
1).The exact material you want to engrave/marking?
2). For the Spindle Power, may I know the marking or engraving depth you want?
3). The working area you demand?
4). Do you want to engrave on planar &flat surface or round &curved surface?
If yes,the machine shall be added optional items, such as rotary attachment. if you can provide some pictures of your products,that would be great! after your tell us these,we will send you more information about the machine and price.
Q2.If we donot know how to use the machine,can you teach us?Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if you are busy ,we will have the special engineer to your country,but you need to bear some fee, like tickets and hotel and meal.
Q3.How about your after-sales service?
Q4.How about your guarantee period?
one year and during the time,if you have any questions ,we will solve it for free.
