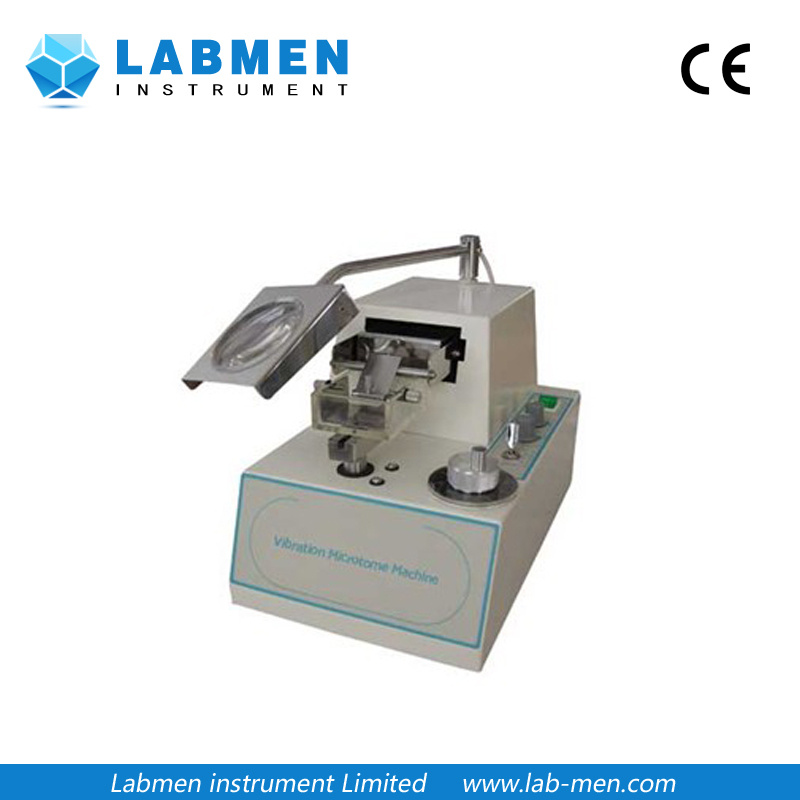

Push and Pull Microtome, Vibrating Microtome

Name: Push and Pull Microtome, Vibrating Microtome
Brand: china-crystals.com
SKU: 800582885
Availability: InStock
Rating: 5 (90 reviews)

Price:	US $ 200-2000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	HP-VM100
Speed Of Specimen Sectioning:	0-1.3mm/S
Vibrating Range:	0 to 1mm
Specimen Table Lifting Range:	9mm
Section Thickness Setting Range:	>10um
Minimum Setting Value:	1um
Angle Of Blade:	15degrees
Working Voltage:	AC220V 50Hz or AC110V 60Hz
Power Draw:	200va
Net Weight:	12kg
Application:	Bio-Physiology Research, Teaching, Scientific

Product Description

1.1  Description
The machine is developed based on users' feedback and advanced technology. It is widely used for bio-physiology research, teaching, scientific research institutions and so on. It is specially designed to slice fresh animal and plant specimens or those after a fixed processing without freezing and embedded of the specimens.
Therefore, samples can maintain its vitality and good shape without ice crystal damage. This instrument provides good conditions for "Immunocyto chemistry" and "spinal cord and brain slice studies of neurobiology" provides, thus is the most desirable rapid sample prepare microtome of experimental system in the fields like contemporary electron microscopy, anatomy, Histology and Embryology, physiology, biology, scientific research, etc.

After the use of relevant institutions and research departments, this instrument is applicable for slicing fixed brain and spinal cord and other tissues with the thinnest piece up to 10μm; fresh brain, heart, kidney and so on, up to 30μm. It is featured with complete slice, smooth surface and uniform dyeing.

1.2  Specification
Main Technical Parameters:
Speed of Specimen Sectioning: 0-1.3mm/s(adjustable)
Vibrating range: 0~1mm
Specimen table lifting range: 9mm
Section thickness setting range: >10um
Minimum setting value: 1um
Angle of blade: 15degrees
Working Voltage:AC220V    50Hz                AC110V    60Hz
Power Draw:200VA
Dimension:400x220x300mm
Net Weight:12kg

Push and Pull Microtome, Vibrating Microtome
Speed of Specimen Sectioning	0-1.3mm/s
Vibrating range	0~1mm
Specimen table lifting range	9mm
Section thickness setting range	>10um
Minimum setting value	1um
Angle of blade	15degrees
Working Voltage	AC220V 50Hz or AC110V 60Hz
Power Draw	200VA
Net Weight	12kg

If you have any question, please feel free to us.
Contact person: Lawrence

As professional laboratory equipment manufacturer, we are in line with experimental equipment for many years, such as Vapor Permeability Tester, Gas permeation rate tester, drying oven, testing machine, Purification equipments, Geology testing, ICP&DRS, etc.

We have 20 years eexperience in this industry. We have sophisticated technology to serve for enterprise, scientific research institution, universities and colleges, etc. We cooperate with many research institution and university, etc.

Our product is widely used in Europe, North America, Asia, Africa, Latin America, etc. We have branches in hunan, and HK. We are paying attention to service and improving our product these years. Customer is everything, which is our service aim; All of our efforts are focused on providing the suitable testing instruments with reliable results. We believe that high quality and good service will pay important role in the future.

We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the good quality at the reasonable price.

We have persisted on the business idea of "Integrity Basis and Quality First" for the stable and constant development. We are making effort to develop together with customers from both domestic and abroad on the basis of reciprocity. Client, quality and service are our supreme target!
