Product Specifications
Prod Model: |
LA101-5EBC |
Operation Room Dimension: |
340×325×340mm |
Rated Power: |
500W |
Temperature Control Range: |
as Incubator: Rt+5%~80% |
Temperature Control Range Oven: |
as Drying Oven: 80°c~200°c |
Electric Power: |
220V/50Hz |
Models With "a": |
for Intelligent Operating System |
Screen: |
LCD Touch Screen |
Feature: |
Safe and Reliable |
Usage: |
Produce Forced Ventilation Within Oven |
Fit For: |
Institutes and Research Agencies. |
Product Description
Summary:

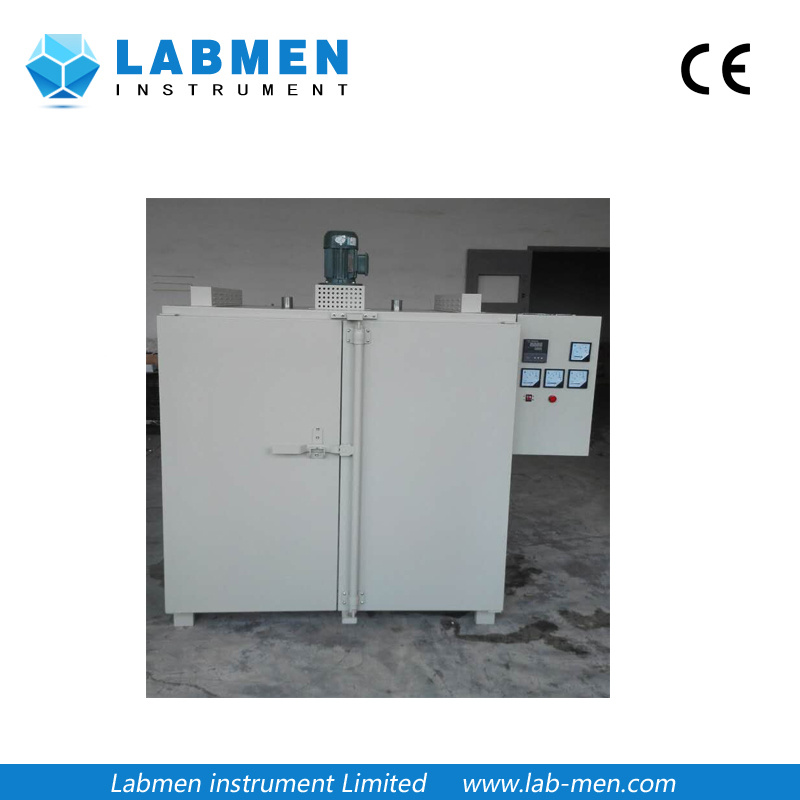

The Forced Convection Drying Oven is suitable for the production enterprises such as electronics, electric, instrument, material, semi-conductor etc to dry, bake and carry out heat treatment tests on the non-combustible, non-explosive goods;
for the scientific research of the units including schools, medication, foods and chemical industry etc as well as drying, baking and carrying out heat treatment tests on the non-combustible, non-explosive goods; especially suitable for the drying and aging during the production process of LED, LCD, quartz crystal, capacitor and resistor etc which require high constant temperature precision and reliability.
Standard:
JB/T5520-1991 Drying oven technical conditions
Technical parameters of Forced Convection Drying Oven
Name | Forced Convection Drying Oven |
Type
| LA101-1EBC | LA 101-2EBC | LA 101-3EBC | LA 101-4EBC | LA 101-5EBC | LA 101-6EBC | LA 101-7EBC |
Circulation mode | Forced convection type |
Working dimensions | 350*450*450 | 450*550*550 | 500*600*750 | 800*800*1000 | 1000*1000 *1000 | 1000*1200 *1200 | 1000*1200 *1500 |
Power | 1500W | 2000W | 2500W | 4500W | 12KW---30KW |
Working voltage | 220V 50HZ | 380V 50HZ |
Temperature range | R.T+10ºC~300ºC |
Temperature fluctuation | ≤± 0.5ºC |
Temperature evenness | ≤± 1% | ≤± 2.5% |
Time of temperature rise | ≤ 80min | According to power |
Temperature control mode | PID control |
Temperature setting method | Press △ and ▽ to set the number |
Temperature display mode | Measure and set temperature LED digital display |
Temperature sensor | Industrial platinum resistor (PT100) |
Material of inner | Environment-friendly galvanized inner | Cold rolled plate |
Material of outer plate | European standard, plastic sprayed surface
| Antirust treatment, paint sprayed
|
Number of partition layer | Two layers, distance adjustable | Three layers |
Observation window | Square high temperature resistance tempered glass | Round high temperature resistance tempered glass |
Air vent | At back | On top | At back |
Heater | Stainless steel high quality tube-type heater |
