| Price: | US $ 3110-4318/Piece |
|---|---|
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,D/P,Western Union,Paypal |

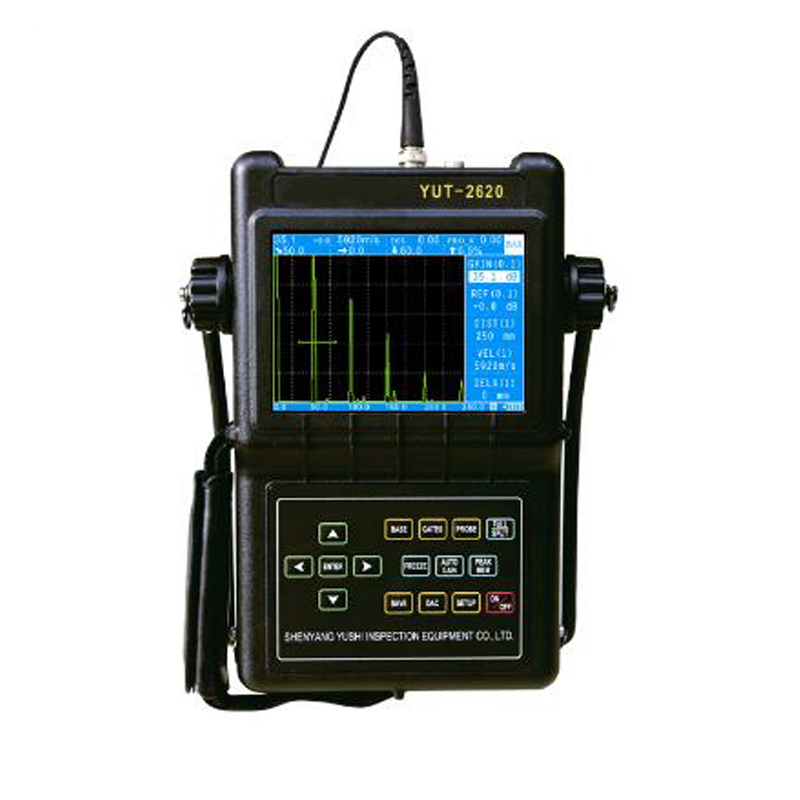

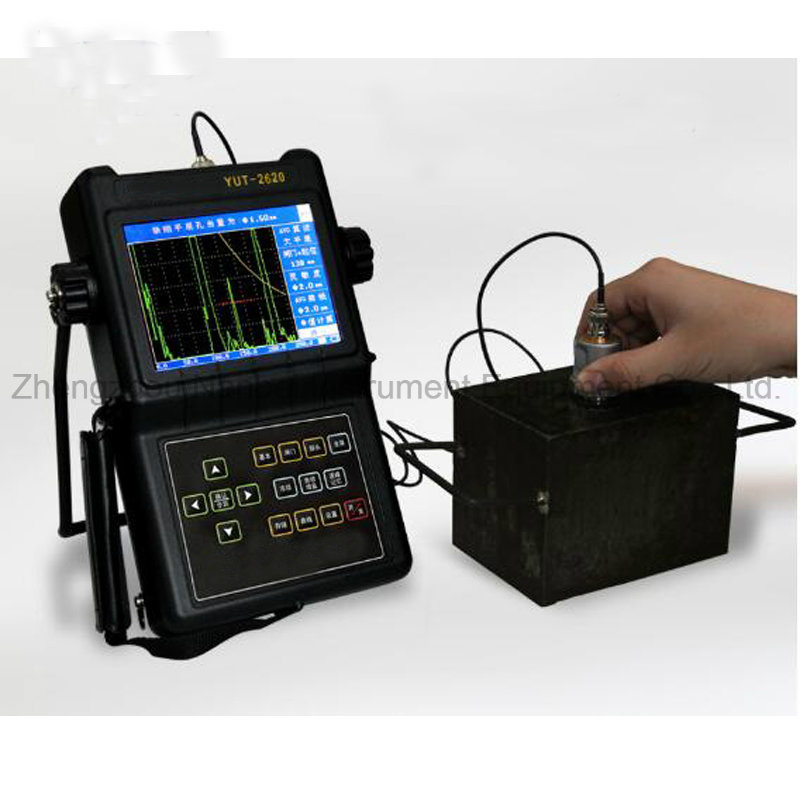

| Prod Model: | YUT2620 |
|---|---|
| Product Name: | Portable Industrial Digital Current Ultrasonic Fla |
| Working Frequency: | 0.5-15 MHz |
| Material Sound Velocity: | 0.039 to 0.394 |
| Operation Mode: | Pulse Echo, Double Crystal |
| Pulse Displacement: | (0-7.87) Inch |
| Probe Zero: | 0-199.99 Us |
The solid waveform :add the waveform visual contrast and omission will hardly happen during the fast testing.
The bulk memory :can store up to 1000 data sets,including waveforms,curves,and parameters(including the traditional 1000 channels).
Through echo wave-echo wave thickness measurement:the zero calibration can be avoided, and the net thickness of the base material can be directly measured through the coating.
Wave Crest Memory:the real-time envelope can display the highest wave of the flaw and record the maximum value of the flaw to help the exact positioning and fast testing of the flaw as well as the qualitative analysis by the envelope waveform.
Automatic Gain:automatically adjust the gain to the pre-set amplitude height.
Warning Function:afferent echo/lost wave alarm
Real-time Clock:automatically record the date and time of the stored waveform.
Display Freeze:catching the waveform and the sound path data at any moment and removing the hatch after freezing to measure the echo wave parameters.
Flaw Positioning:real time displaying sound path S,horizontal height X,depthY,and wave height H.
Digital Inhibition: 0-80%,increasing by 1%,not affecting the linearity and gain.
Data Communication:communicating with the computer through the RS232 interface to transfer the waveform and data so as to manage the results of the flaw on the computer, generate the flaw testing reports and print them out.
Two independent measurement shutters can monitor the distances of the echo amplitude and the sound path.
When using transverse wave to detect flaws, the depths of the second and third waves are automatically calculated according to the slab thickness.

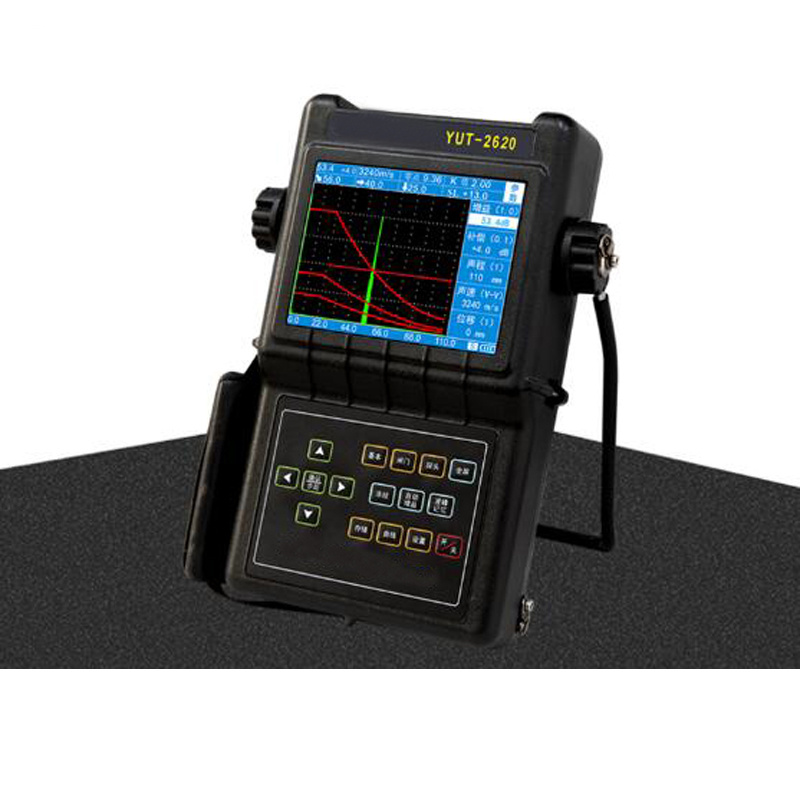

The perfect DAC curve functions enable the curves to change according to the isplacement of the gain and the sound path.
The brightness of the true-color TFT LCD can be adjusted with many free selections of color schemes.
The language interfaces of Chinese and English are supported.
| YUT2620 Technical Parameters | |||
| Item | Index | Item | Index |
| Working Frequency: | (0.5-15)MHz | Resolution | ≥32dB |
| Material Sound Velocity | (0.039 to 0.394) inch/µs | Dynamic Range | ≥30dB |
| Operation Mode | pulse echo, double crystal | Sensitivity allowance | ≥55dB (0.787'' deep Φ2 Flat-bottom hole) |
| Pulse displacement: | (0-7.87) inch | Average Noise Level | ≤10% |
| Probe Zero | (0-199.99)us | Battery Working Hours: | >8 hours |
| Gain adjustment: | (0-110)dB,0.1dB,1.0dB, 2.0dB,6.0dB Full automatic adjustment of steps | Power Supply | 12V DC,220V AC |
| Vertical Linearity Error | ≤3% | External Dimension | 270mmX190mmX60mm |
| Horizontal Linearity Error | ≤0.3% | Weight | 2Kg(including batteries) |
| YUT2620 Standard Configuration | |||
Ultrasonic Flaw Detector | 1 | Lithium Battery | 1 |
recharger | 1 | Communication Cable | 1 |

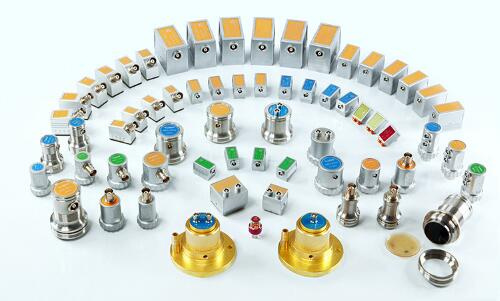

Probe Line | 2 | Normal Probe/angle beam probe | 1, each |
Instrument Case | 1 | Strap | 1 |
Communication Software | 1 | User's Manual | 1 |
Certificate of Quality | 1 | warranty Card | 1 |
| 1 | Packing List | 1 |

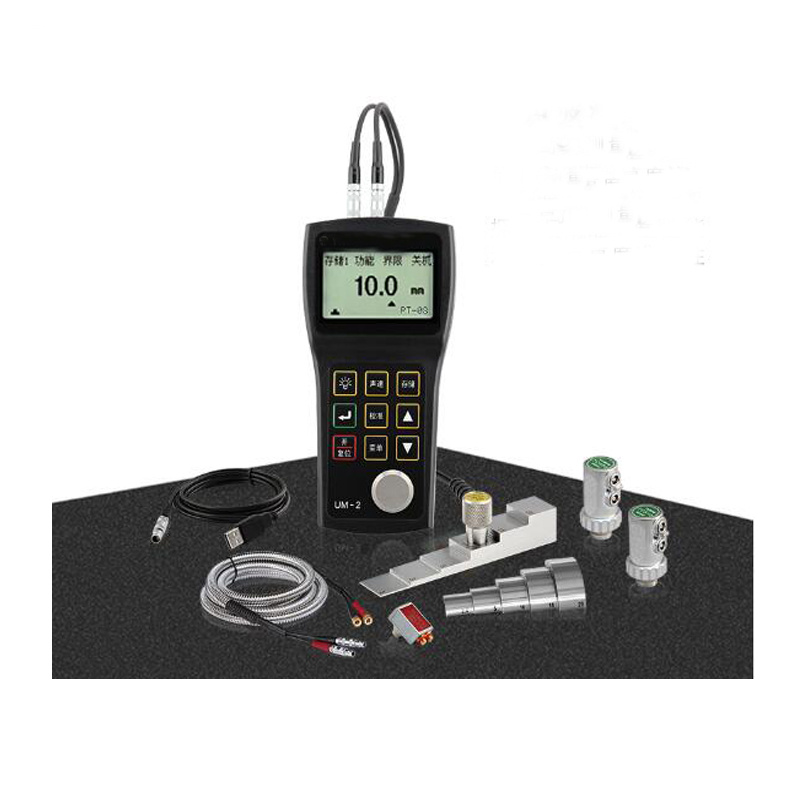

| Ultrasonic thickness meter |
 |
1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.
3. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…
4. When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
5. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
6. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
7. What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
8. What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except wear parts. You can also buy parts from us after 12months.
