Product Specifications
| Prod Model: |
YUT2800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Ultrasonic Flaw Detector |
| Special: |
Designed for Severe Environment |
| Working Frequency: |
(0.5-15)MHz |
| Material Sound Velocity: |
(1000-9999)M/S |
| Operation Mode: |
Pulse Echo,Double Crystal |
| Pulse Shift: |
(0-1000)mm |
| Probe Zero: |
(0-199.99)Us |
| Gain Control: |
(0-110)dB,(0.1dB\1dB\2CB\6dB Stepping |
| External Dimension: |
270mmx190mmx60mm |
| Weight: |
1.4kg Without Batteries |
Product Description
Quick Details
Place of Origin: |
Henan, China (Mainland) |
Brand Name: |
Nanbei |
Model Number: |
YUT2800 |
|
|
|
|
Product introduction

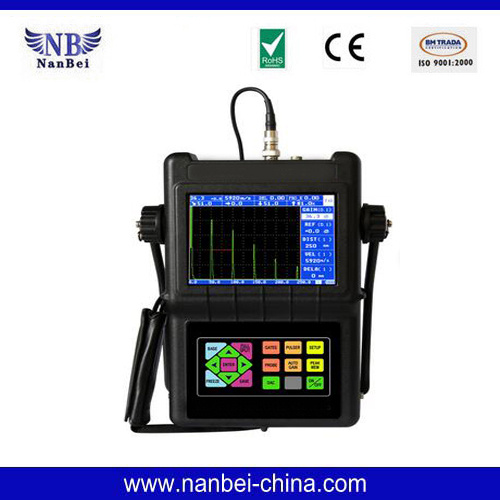

Ultrasonic Flaw Detector, YUT2800, is designed for the severe environment. Its domestically unique omniseal design enables it to resist the damp, sandstorm, dust, and pollution in all sorts of environmental extremes ranging from ocean to desert.
Features and Functions of YUT2800
The rugged YUT2800 is designed for the severe environment. Its domestically unique omniseal design enables it to resist the damp,sandstorm,dust,and pollution in all sorts of environmental extremes ranging from ocean to desert.
The echoed signal filter can be adjusted base on two steps(1-4MHz,0.5-15MHz),Each individual advantage of narrowband and broadband filter can be achieved.
The repetition frequency can be adjusted based on many steps to avoid unreal signal.
The full screen function enables the echo wave displaying area to cover the entire screen so that the operator will have the maximal view.
The solid waveformcan add the waveform visual contrast and omission will hardly happen during the fast testing.
The bulk memory can store up to 1000 data sets,including waveforms,curves,and parameters(including the traditional 1000 channels)
Through echo wave-echo wave thickness measurement, the zero calibration can be avoided, and the net thickness of the base material can be directly measured through the coating.
Wave Crest Memory: the real-time envelope can display the highest wave of the flaw and record the maximum value of the flaw to help the exact positioning and fast testing of the flas as well as the qualitative analysis by the envelope waveform.
Automatic Gain: Automatically adjust the gain to the pre-set amplitude height.
Warning Functiono: afferent echo /lost wave alarm.
Real-time Clock:automatically record the date and time of the stored waveform.
Display Freeze: catching the waveform and the sound path data at any moment and removing the hatch after freezing to measure the echo wave parameters.
Flaw Positioning: display the sound path S,horizontal height X,depth Y,and wave height H.
Digital Reject:0-80%, increase by 1%, unaffecting the linearity and gain
Data communication:communicate with the computer through RS232 port to transmit waveforms and data so as to manage the result of detection on the computer, and generate the flaw detection reports, as well as print out reports.
Perfect DAC curve functions, the curves change along with the changes of the gain, sound path, and displacement. It can be straight line or curve.
True color TFT LCD whose brightness is adjustable, with many color schemes to choose freely.
Two operation interfaces are available: Chinese and English.
YUT2800 Technical Parameters |
| Item | Index | Item | Index |
| Working Frequency | (0.5-15)MHz | Definition | ≥32dB |
| Material Sound Velocity | (1000-9999)m/s | Dynamic Range | ≥30dB |
| Operation Mode | pulse echo,double crystal | Sensitivity Excess | ≥55dB (0.787'', deep Φ2 Flat-bottom hole) |
| Pulse Shift | (0-1000)mm | Average Noise Level | ≤10% |
| Probe Zero |
(0-199.99)us |
Battery Working Hours | 8 hours |
| Gain Control | (0-110)dB,(0.1db,1db,2cb,6db stepping | Power Supply | 12V DC,220V AC |
| Vertical Linearity Error | ≤3% | External Dimension | 270mmX190mmX60mm |
| Horizontal Linearity Error | ≤0.3% | Weight | 1.4kg without batteries |
YUT2800 Standard Configuration |
Ultrasonic Flaw Detection |
1 |
Lithium Battery |
1 |
Recharger |
1 |
Communication Cable |
1 |
Probe Line |
2 |
Normal Probe/Angle beam probe |
1,each |
Instrument Case |
1 |
Strap |
1 |
Communication Software |
1 |
User's Manual |
1 |
Certificate of Quality |
1 |
Warranty Card |
1 |
Packing List |
1 |
|
|
