| Price: | US $ 900-3000/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 1/Piece |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | YUT2620 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

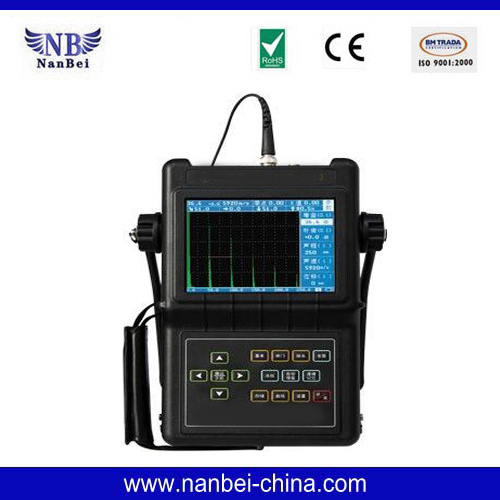

| Item: | Ultrasonic Flaw Detector |
| Working Frequency: | (0.5-15)MHz |
| Material Sound Velocity: | (0.039 to 0.394) Inch/µs |
| Operation Mode: | Pulse Echo, Double Crystal |
| Pulse Displacement: | (0-7.87) Inch |
| Probe Zero: | (0-199.99)Us |
| Gain Adjustment: | (0-110)dB,0.1dB\1.0dB\ 2.0dB\6.0dB Full Automatic |
| Power Supply: | 12V DC,220V AC |
| External Dimension: | 270mmx190mmx60mm |
| Weight: | 2kg(Including Batteries) |
Place of Origin: | Henan, China (Mainland) | Brand Name: | Nanbei | Model Number: | YUT2620 |
Power: | Electronic | Usage: | Auto Testing Machine |
| The full screen function: enables the echo wave displaying area to cover the entire screen so that the operator will have the maximal view. The solid waveform :add the waveform visual contrast and omission will hardly happen during the fast testing. The bulk memory :can store up to 1000 data sets,including waveforms,curves,and parameters(including the traditional 1000 channels). Through echo wave-echo wave thickness measurement:the zero calibration can be avoided, and the net thickness of the base material can be directly measured through the coating. Wave Crest Memory:the real-time envelope can display the highest wave of the flaw and record the maximum value of the flaw to help the exact positioning and fast testing of the flaw as well as the qualitative analysis by the envelope waveform. Automatic Gain:automatically adjust the gain to the pre-set amplitude height. Warning Function:afferent echo/lost wave alarm Real-time Clock:automatically record the date and time of the stored waveform. Display Freeze:catching the waveform and the sound path data at any moment and removing the hatch after freezing to measure the echo wave parameters. Flaw Positioning:real time displaying sound path S,horizontal height X,depthY,and wave height H. Digital Inhibition: 0-80%,increasing by 1%,not affecting the linearity and gain. Data Communication:communicating with the computer through the RS232 interface to transfer the waveform and data so as to manage the results of the flaw on the computer, generate the flaw testing reports and print them out. |
YUT2620 Technical Parameters | |||
| Item | Index | Item | Index |
| Working Frequency: | (0.5-15)MHz | Resolution | ≥32dB |
| Material Sound Velocity | (0.039 to 0.394) inch/µs | Dynamic Range | ≥30dB |
| Operation Mode | pulse echo, double crystal | Sensitivity allowance | ≥55dB (0.787'' deep Φ2 Flat-bottom hole) |
| Pulse displacement: | (0-7.87) inch | Average Noise Level | ≤10% |
| Probe Zero | (0-199.99)us | Battery Working Hours: | >8 hours |
| Gain adjustment: | (0-110)dB,0.1dB,1.0dB, 2.0dB,6.0dB Full automatic adjustment of steps | Power Supply | 12V DC,220V AC |
| Vertical Linearity Error | ≤3% | External Dimension | 270mmX190mmX60mm |
| Horizontal Linearity Error | ≤0.3% | Weight | 2Kg(including batteries) |
YUT2620 Standard Configuration | |||
Ultrasonic Flaw Detector | 1 | Lithium Battery | 1 |
recharger | 1 | Communication Cable | 1 |
Probe Line | 2 | Normal Probe/angle beam probe | 1, each |
Instrument Case | 1 | Strap | 1 |
Communication Software | 1 | User's Manual | 1 |
Certificate of Quality | 1 | warranty Card | 1 |
1 | Packing List | 1 | |
Packaging Details: | Export standard packaging |
| Delivery Detail: | delivery in 3-10 days |
