Natural Gamma Water Well Logger Sp Groundwater Borehole Log Resistivity Underground Logging
| Price: |
US $ 10000-20000/Set |
| Trade Terms: |
FOB |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
Product Specifications
| Prod Model: |
GDQ-2D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Depth: |
100m to 3000m |
| Warranty: |
12months |
| Function: |
Water Well Logging, Mineral Borehole Logger |
| Accuracy: |
1mm |
| Vertical Lines: |
1 |
| Horizontal Line: |
1 |
Product Description

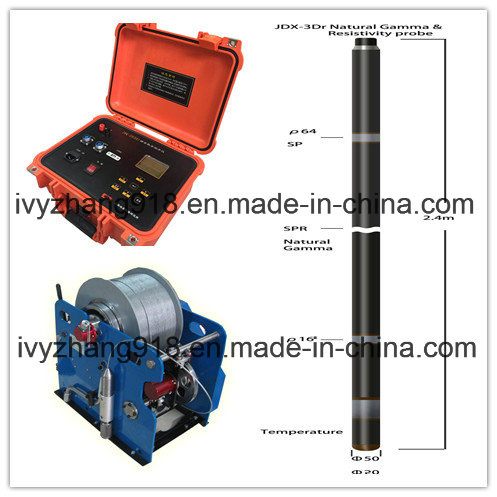

Natural Gamma & Electrical Resistivity ProbeDescriptionThe Natural Gamma & Electrical Resistivity Probe measures natural gamma,16" Normal & 64"Normal Resistivity,Spontaneous Potential (SP),Single Point Resistance(SPR),Temperature. Users can log resistivity profiles with different depths of investigation and gain information about permeability, porosity, water quality and geological formation properties.Operating Conditions:Uncased;Borehole Fluid:Water or Mud.ApplicationsFacies changes;Quantitative geological formation propertiesIdentification of hydrostratigraphic unitsAquifer thickness;Water qualityIdentification of hydrocarbon intervalsDetection of ore body zones;Bed boundary analysisParameter1. Instrument Power Supply:DC200V±20%,Electricity≤40mA2. Electrode Array: AM 16";AM 64"3. Natural Gamma Sensor:NaI Crystal4. Temperature Sensor::Platinum Resistance (pt100)5. Measuring Range:resistivity:1~4000Ωm(customize10000Ωm)Spontaneous Potential (SP):±1200mVNatural Gamma:0~32768cpsTemperature Range: 0ºC~100ºC, Resolution:0.025ºC6. Measurement Accuracy:2%(10~4000Ωm)or ±1Ωm7. Environmental: Temperature<=80ºC;Pressure≤20MPa8. Signal: Bipolar Codes
