Electrical Well Logging, Geophysical Well Logs, Borehole Logging for Resistivity, Natural Gamma, Sp
| Price: |
US $ 10000-20000/Set |
| Trade Terms: |
FOB |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
Product Specifications
| Prod Model: |
GDQ-2D |
| Warranty: |
12months |
| Depth: |
100m to 3000m |
| Parameters: |
Resistivity, Sp, Natural Gamma |
| Accuracy: |
1mm |
| Vertical Lines: |
1 |
| Horizontal Line: |
1 |
Product Description

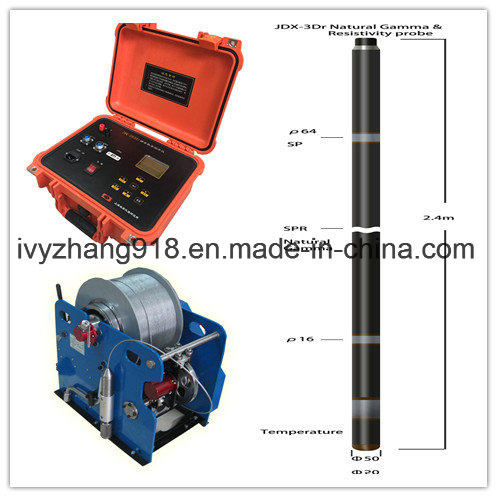

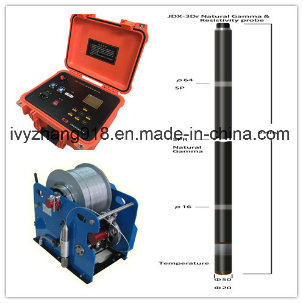

Natural Gamma & Electrical Resistivity Probe
DescriptionThe Natural Gamma & Electrical Resistivity Probe measures natural gamma,16" Normal & 64"Normal Resistivity,Spontaneous Potential (SP),Single Point Resistance(SPR),Temperature. Users can log resistivity profiles with different depths of investigation and gain information about permeability, porosity, water quality and geological formation properties.Operating Conditions:Uncased;Borehole Fluid:Water or Mud.Features & Benefits1,The probe will digitize the measured information of the stratum and transmit it to the surface to avoid the effect of the cable on the measurement data.2,Constant power, adaptive measurement, no manual operation.ApplicationsFacies changes;Quantitative geological formation propertiesIdentification of hydrostratigraphic unitsAquifer thickness;Water qualityIdentification of hydrocarbon intervalsDetection of ore body zones;Bed boundary analysisParameter1. Instrument Power Supply:DC200V±20%,Electricity≤40mA2. Electrode Array: AM 16";AM 64"3. Natural Gamma Sensor:NaI Crystal4. Temperature Sensor::Platinum Resistance (pt100)5. Measuring Range:resistivity:1~4000Ωm(customize10000Ωm)Spontaneous Potential (SP):±1200mVNatural Gamma:0~32768cpsTemperature Range: 0ºC~100ºC, Resolution:0.025ºC6. Measurement Accuracy:2%(10~4000Ωm)or ±1Ωm7. Environmental: Temperature<=80ºC;Pressure≤20MPa8. Signal: Bipolar Codes
