Hi-Target Geodetic Survey Total Station with 2" Accuracy in Land Survey Instrument
| Price: |
US $ 0.1/Set |
| Trade Terms: |
FOB,CIF,FCA |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,Western Union |
Product Specifications
| Prod Model: |
ZTS-320R |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Condition: |
New |
| Features: |
Dual-Axis Compensition |
| Power-off Data Protection: |
Yes |
| Measuring Method: |
Absolute Encoding |
| Accuracy With Reflector: |
2mm |
| Minimum Readout: |
1"/5"/10" |
| Measuring Time: |
0.5s |
| Power: |
Li-ion Battery,7.4V,3000mAh,16h |
| Weight: |
5.5kg |
| Water/Dustproof: |
IP65 |
| Accuracy: |
2mm |
| Vertical Lines: |
1 |
| Horizontal Line: |
2 |
| Offset: |
0 |
Product Description

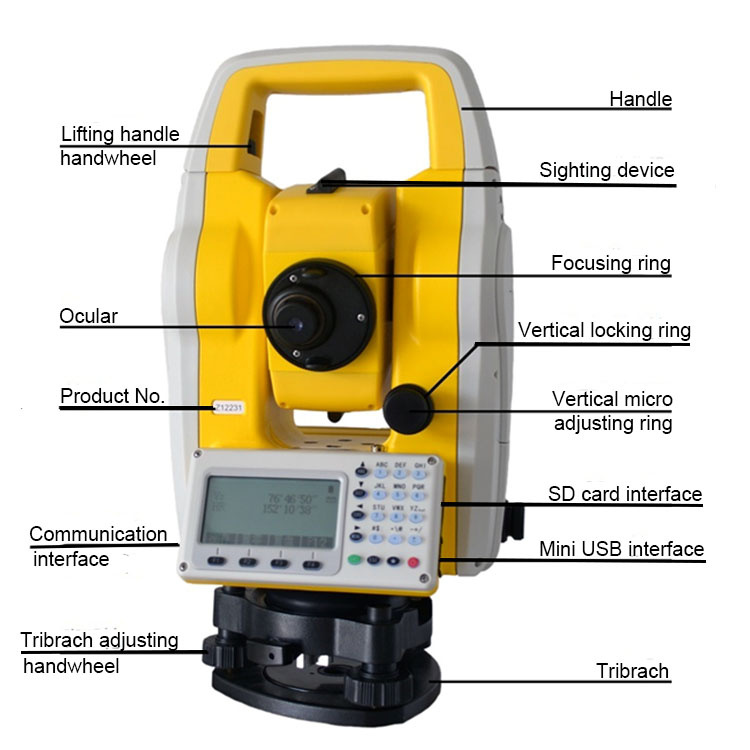

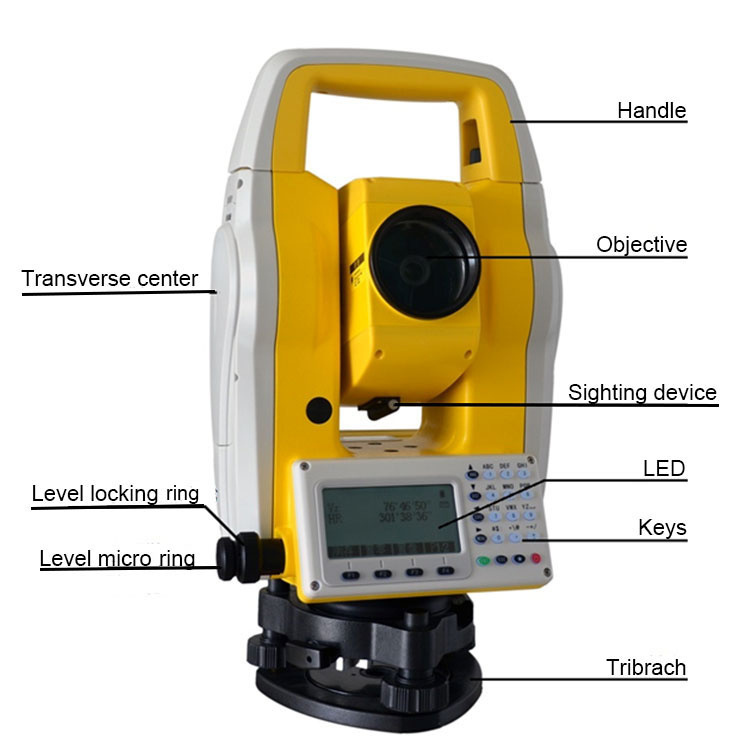

HI-TARGET Geodetic Survey Total Station with 2" Accuracy in Land Survey Instrument
With powerful measurement module, Stable Dual-axis Compensation system, and Intelligent Calibration Software, ZTS-320R improves the speed and distance of measurement efficiently. Using STM32 architecture and high-grade dustproof and waterproof structure design, Comprehensively enhance the overall performance of ZTS-320R.
*Technical Parameters of the Land Survey Instrument Geodetic Survey Total Station:
Angle Measurement
Measurement Method: Absolute Encoding
Minimum Readout: 1″/5″/10″(0.3mgon/1.5mgon/3mgon) adjustable
Accuracy1: 2"
Distance Measurement (ZTS-320 with Reflector)
Single Prism: 3000m (9,842ft.) under good condition3
Three Prisms: 6000m (19,685ft.) under good condition3
Reflective Sheet: 800m (2,624 ft.)
Accuracy: 2 mm+2ppm
Measuring Time (Fine/Quick/Tracking): 1.5s/1s/ 0.5s
Distance Measurement(ZTS-320R Reflectorless)
Reflectorless2 Range: 350m(1,148 ft.)
Single Prism: >7500m(24,606ft.)
Accuracy: 3mm+2ppm
Measuring Time: 1.5s
Telescope
Magnification: 30X
Field of View: 1°30′ (2.7m at 100m)
Minimum Focusing Distance:1.5m
Reticle: Illuminated
Compensator
System: Single-axis liquid tilt sensor/Dual-axis (optional)
Working Range: ±3′
Setting Accuracy: 1″
Communication
Bluetooth
Interface:Standard RS232,SD card4,USB pen drive,mini-B
Internal Data Memory:Approx.20,000 Points
Data Format:ASCII
Operation
Operation system: Real-time Operating System
Display:High resolution backlight black and white display with contrast adjustment/ Graphics: 192 x 96 pixels
Character:6 lines x 25 characters
Keyboard:2 sides Alphanumeric backlit crystal keyboard
Laser Plummet
Type:Laser point, 4 brightness levels adjustment / Optical plummet (optional)
Centering Accuracy:1 mm at 1.5m instrument height
Power Supply
Battery Type:Rechargeable Li-ion battery
Voltage/Capacity:ZBA-400: 7.4V (DC) / 3000mAh
Operating Time With ZBA-400:Optimal 16 hours5 (Continuous angle measurement every 30 seconds)/10 hours (typical)
Measuring Times:Approx. 12000 times
Weight
Weight (Incl. Battery & Tribrach): Approx. 5.5kg (12.1lb.)
Environmental
Operating Temperature: -20ºC ~+50ºC( -4ºF to + 122ºF)
Storage Temperature: -40ºC ~+70ºC(-40ºFto + 158ºF)
Dust &Water Proof (IEC60529 Standard)/Humidity: IP65, 95%, non-condensing)
*Main Applications of the Geodetic Survey Total Station:
1. mineral survey, exploration and mining;
2. The construction of railways, highways, bridges;
3. Irrigation and water conservancy, urban planning and construction;
4. Battlefield preparation, construction of harbor, fortress, airports, military bases;
5. Precision positioning and installation in the fields such as shipbuilding and aviation industry in areas;
6. The measurement of three-dimensional coordinates of the building, position measurement, REM measurement, vertical determination, pipe locating, section measurements;
7. Triangulation control survey, topographic survey, cadastral and property measurements.*Contact US
