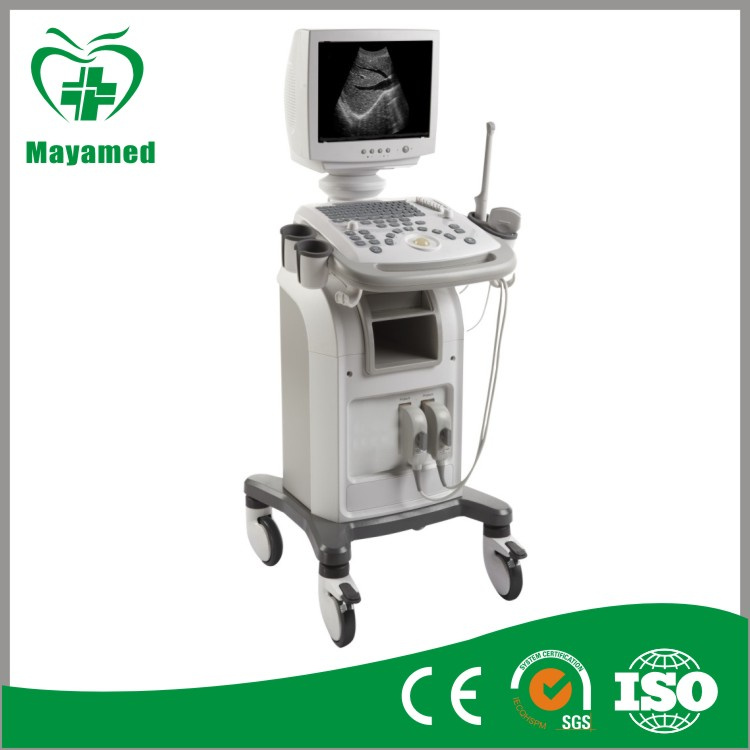

My-A020 Full Digital B Ultrasound Scanner Ultrasound Machine

Product Specifications

Prod Model:	MY-A020
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	My-A021 Full Digital 3D Ultrasound System
Optional:	Vaginal Probe, Laser Printer
Stype:	3D Ultrasound System
Display:	15 Inch LCD Screen
Permanent Storage:	2000 Images
Ultrasound System:	Windows XP
Model Number:	My-A021
Warranty Time:	12 Months
Offline Diagnosis:	Reserve Dynamic Imag
Brand Name:	Maya
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	Ultrasound Scanner
Certification:	ISO13485
Group:	All People

Product Description

MY-A020Expert full digital ultrasonic diagnostic system

1.15 inch LED screen, pretty, portable and light
2.standard with 2 probe connector
3.Full digital imaging technology, crystal-clear Image
4.3D Image function(optional)
5.PC based, abundant functions
6.Powerful image and report management
7.Large volume storage image and cineloop
8.DICOM display and transfer
9.Compatible with laser/inkjet printers
10.Built-in battery(Work 5 hours)

Specification:
-Maximum Scanning Depth: max. 250mm
-Multi-frequency: 5 segment frequencies
-Cine Loop: max. 1024 frames
-Scanning mode: B, 2B, B/M, M, 4B, 9B, ZOOM;
-Real-time Zoom on B mode
-Image gray scale: 256 level gray scale
-Image processing: Pre-processing, after-processing, dynamic range, frame rate,  line average, edge;
-enhancement, Black/White inversion; Gray scale adjustment, contrast, brightness, γ revision.
-Gain: 0-100dB; Time gain control(TGC): 8 segment adjustment, B, M adjustment separately.
-Measurement and calculation(human):
-B mode: distance, circumstance, area, volume, angle, ratio, stenosis, profile, histogram;
-M mode: heart rate, time, distance, slope and stenosis;
-Gynecology measurement: Uterus, cervix, endometrium, L/R ovary;
-Obstetric: gestation age, fetal weight, AFI;
-Cardiology: LV, LV function, LVPW, RVAWT;
-Urology: transition zone volume, bladder volume, RUV,   prostate, kidney;
-Small parts: optic, thyroid, jaw and face.
-Veterinary:  Cattle: BPD, CRL, TD;  Horse: GA; Dog: GS; Cat: HD, BD;  Sheep: BPD, CRL, TD
-Supported output apparatus: U-Disk, Laser/ink printer, video printer, VGA
-Zoom: 10 ratio, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0
-Image store: by hardisk or USB disk
-3D image function(function): can get rebuilt 3D image by any probe
-Work time by built-in battery: about 5 hours
-Monitor: 15 inch color LED screen
-Probe Connector:2
-Dimension: 362mm×340mm×60mm
-Weight: Around 4.8Kg

Standard Configuration:
One Main Unit, One Convex probe(3.5MHz), One Power adapter.

Optional:
Linear, Trans-vaginal, Micro-convex,Rectal Probe; Bag; Trolley; Laser Printer.


Product name	My-A021 Full Digital 3D Ultrasound System
Brand name	MAYA
Packaging Details	Carton box for My-A021 Full Digital 3D Ultrasound System
Delivery Detail	within 15 days after payment receipt
Payment Terms	T/T,Western Union,MoneyGram
Port	Guangzhou
