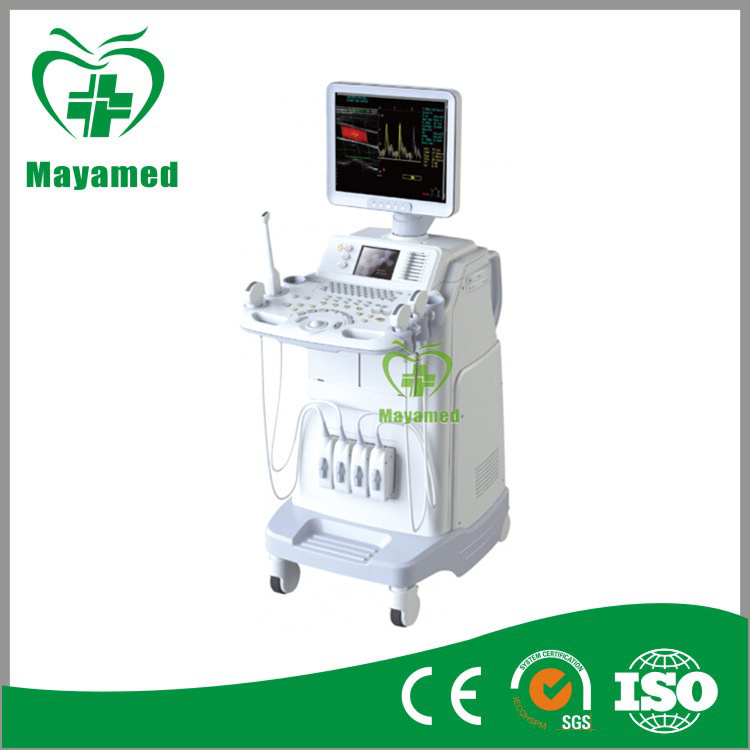

Big Promotion My-A028A Hospital Trolley 3D Color Doppler Ultrasound Machine with Good Quality

Product Specifications

Prod Model:	MY-A028A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	Color Doppler Ultrasonic Diagnostic System Paramet
Classification:	Imaging Diagnostic Equipment
Type:	Ultrasound Scanner
Certification:	CE

Product Description

Big Promotion My-A028A Hospital Trolley 3D Color Doppler Ultrasound Machine with good quality


(1) the host system
1 all-digital color Doppler ultrasonic diagnostic system
2 ultrasound host operating system: Windows XP operating system
3 Monitor:>=17-inch high-definition professional medical liquid crystal displays, with a 5.7-inch widescreen touch-navigation system
Effectively activate>=3
4 probe interface (all interfaces)
5 two-dimensional gray-scale imaging unit
6 the PW pulse wave Doppler
7 Doppler energy and directional energy diagram
8 Color Doppler ultrasound diagnostic unit
9 the THI Tissue Harmonic Imaging
10 inverting pulse harmonic imaging
11 a key optimization (optimize two-dimensional gray-scale images and PW images)
12 multilingual user interface optional, Chinese operation interface, support for Chinese input.
13 real-time synchronization unit: two-dimensional, color Doppler, spectral Doppler real-time display the same screen.
14 Professional package: abdomen, obstetrics and gynecology, small parts, urology, orthopedic surgery, cardiac
15 Measurement: distance, area, angle, time, slope, heart rate, speed, acceleration, spectrum tracing, resistance index and pulsatility index
16 Gain: B / the PW / CD can be separately adjusted
17 movie playback>=1000 frame

(2) probe configuration and specifications:
1 Configuration: convex array probe, the high-frequency linear array probe, transvaginal probe
2 convex array probe :2.5-5 .0 MHz center frequency:>=3, the visual adjustable; with harmonic imaging capabilities, the harmonic frequency of>=2, visual adjustable
3 linear probe :6.0-10 .0 MHz center frequency:>=3, the visual adjustable; with harmonic imaging capabilities, the harmonic frequency of>=2, the visual adjustable
4 transvaginal probe :5.0-8 .0 MHz (scan angle>=130 °)

(3) two-dimensional imaging modes:
1 4B imaging mode
2 B-type images in real time and freeze the zoom magnification of>=8, 10 or more adjustable
3 Grayscale: 256 Figure
4 position:>=60
5 dynamic range of 0-150db the visual adjustable 10 level and above
6 The probing depth:>=300mm
7 Resolution: lateral ≤ 2mm; vertical ≤ 1mm
8 Focus: B mode, the focus position and focus distance is adjustable
9 Ultrasonic power output:>=10 adjustable
10 preconditions:>=10 species, the user can customize the conditions
11 pseudo-color display:>=7 species
12 convex array probe: 18cm depth, the whole point of the 2D frame rate of>=30 frames / sec.
13 linear array probe beam deflection
14 digital beam formation: continuous dynamic focusing, variable aperture and dynamic apodized
15 B, 2B, 4B display modes
16 the TGC segment gain adjustment>=8 segments

4.M type
1 B / M to a variety of layout adjustable
2 M scanning speed is adjustable

(5) color Doppler:
1 color gain and PRF multi-level adjustable
2 visual color frequency adjustable:>=2
3 Sampling frame: the size and position adjustable
4 Color Atlas:>=7
5 color afterglow:>=4
6.8 color baseline adjustable

(6)Color Doppler energy diagram:
1 the direction of the energy map
2 Energy in gain: Adjustable
3 The energy landscape

7 Doppler spectrum:
1 Doppler spectrum of the emission frequency can be multi-file variable frequency
2 The measurement speed: the minimum detectable speed of 1 mm / s, maximum speed measurement>=9m / s,
3 sample volume size: 1mm-15mm, adjustable
5 Sampling point of correction: -70 degrees to 70 degrees
6 Spectrum Gain: adjustable;
7 Spectrum Automatic tracing and automatic measurement functions, including automatic envelope, manual envelope, fast measurement
8 tracings range to support the baseline above and below the baseline, and all tracings in three ways
9 Baseline: Zero moving grading adjustable>=8 levels
10 Scan speed:>=3 adjustable
11 wall Filtering:>=5-level adjustable
12 Spectrum volume size is adjustable

8 graphics management system:
1 built-in storage unit: hard drive storage capacity>=250G;
2 built-in ultrasound image archiving and management functionality: You can edit the diagnostic report, the ultrasound diagnostic images can be embedded in the report and print directly
3 built-in three-dimensional image processing functions: 3D reconstruction.
