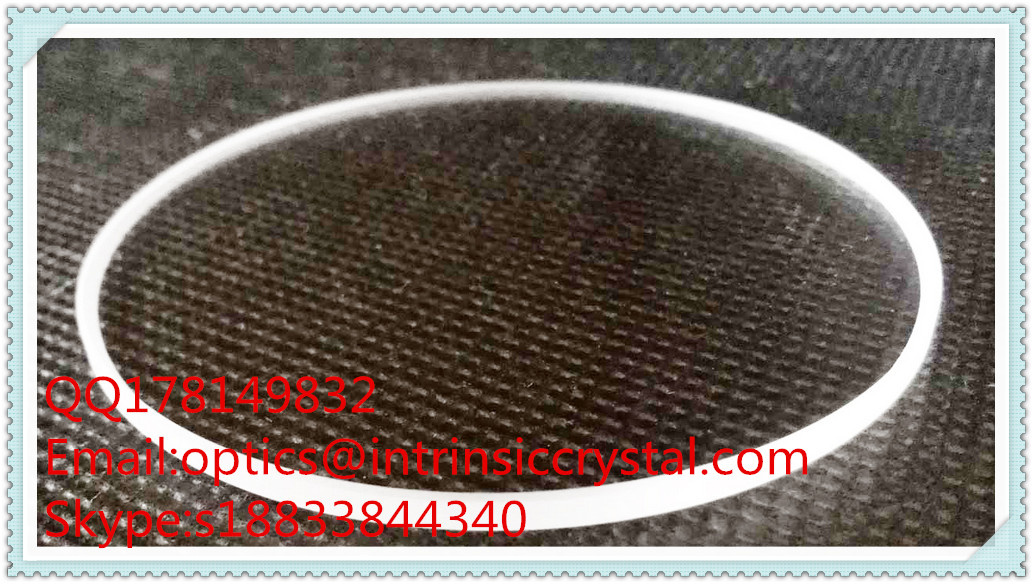

Mgf2 Crystals Mgf2 Windows, China Optics
| Price: |
US $ 10-60/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
Product Specifications
| Prod Model: |
D5~D300mm |
| Type: |
Flat Lens |
| Shape: |
Single-lens |
| Coating: |
Ar Hr |
| Material: |
Bk7 K9 CaF2 Mgf2 Baf2 |
Product Description
Qinhuangdao Inrinsic Crystal Technology Co., Ltd Optics & Coatings windows are made from select grades of the finest available optical materials. VUV/UV windows are suitable for a large range of VUV-UV applications. Flat laser windows are suitable for high-power laser applications and as substrates for mirrors and beamsplitters.
MgF2 (Magnesium Fluoride) is positive uniaxial crystal with a very high optical transmittance from the vacuum UV to IR. It also has a large resistance to mechanical and thermal shock, to optical radiation, and is chemically stable, making it a very useful materials for UV and IR optics.
we also can offers a-cut (or [100] cut) MgF2 crystals for the maximum birefringence. c-cut (or cut along the optical axis) with minimum birefringence, or random-cut (cut along a random axis) MgF2 windows are also available.
Note: Excimer-grade CaF2 and MgF2 substrates are available for laser cavity optics and are available with transmittance traces for an additional charge.
| Part Number | Diameter | Thickness | Substrate Material |
|---|
| W1D-FLC | 1.0" (25.4mm) | 0.250" (6.35mm) | Excimer-grade CaF2 |
| W1.5D-FLC | 1.5" (38.1mm) | 0.200" (5mm) | Excimer-grade CaF2 |
| W2D-FLC | 2.0" (50.8mm) | 0.375" (9.53mm) | Excimer-grade CaF2 |
| W1D-FLM | 1.0" (25.4mm) | 0.250" (6.35mm) | Excimer-grade MgF2 |
| W1.5D-FLM | 1.5" (38.1mm) | 0.200" (5mm) | Excimer-grade MgF2 |
| W2D-FLM | 2.0" (50.8mm) | 0.375" (9.53mm) | Excimer-grade MgF2 |
Specifications
| Material | Excimer-grade CaF2, MgF2 |
| Diameter Tolerance | +0.00/-0.005" |
| Thickness Tolerance | +/-0.25mm |
| Surface Figure | Both sides 1/10 Wave @ 632.8nm |
| Parallelism | 3 arc min |
| Scratch/Dig | 20-10 |
| Chamfer | 0.5mm x 45° |
| Clear Aperture | Central 85% |
Qinhuangdao Intrinsic Crsytal Technology Co., Ltd, based in China, is a recognized leader in high-performance optical solutions across a broad infrared spectrum. Combining adequate IR material supply, extensive fabricating experience, and the standardized service, U-Optical specializes in producing high-precision IR optical components for the Medical/Life Sciences, Defense & security, Semiconductor, and Industrial OEM markets. From optics designing, to material purchase, to volume production, our company endeavor to optimize your IR products for performance, cost, quality and delivery.
Our Strengths
Ample, stable and cost-efficient supply of IR materials.
ICC also offers the ability to combine infrared material supply, precision optical processes, various coating, reliable inspection and commercial service into a complete procedure, providing full professional support for both optics and trades. This enables our customers to obtain the highest level of optical integration and business advantage, minimizing time and cost while ensuring quality, performance and manufacturability.
Consistent and high-performance manufacturing
During its years of operational experience, ICC have developed unique techniques of micro-polishing which enable to easily produce elements needed for high transmission and low scattering and absorption applications.
The accumulated experience in the IR optics market, in addition to the high qualifications and strong optical background of the company's leading staff allow U-Optics to be a reliable supplier to many OEM customers and R&D institutions around the world.
Excellent quality and efficient service
From design to delivery, our material control, in-process testing and final inspections assure that our products meet your highest specifications and quality standards.
Our sales team possess a wide range of experience of not only optics, but also the international business services. By staying close to our customers and giving straightforward honest advice, we are confident to provide our overseas customers with the excellent IR products from China.
Competitive Prices
ICC can offer the customers with most competitive prices and high quality of products, supported by the close associations with the domestic suppliers, its comprehensive optical manufacturing capabilities, as well as its strong ability in exploring overseas markets.
Stable and reliable business partner
We place equal focus on processing technique, customer service and innovative research. Meanwhile, we create customer value by understanding customer needs, by unconditionally guaranteeing our work and by keeping abreast of customer developments.
Contact us today to discuss your needs. To my email: Optics@intrnsiccrysal. COM Tel: 18833844340
