Product Specifications
| Prod Model: |
D5~D300mm |
| Material: |
Znse Zns Ge Si CaF2 Mgf2 Baf2 |
Product Description

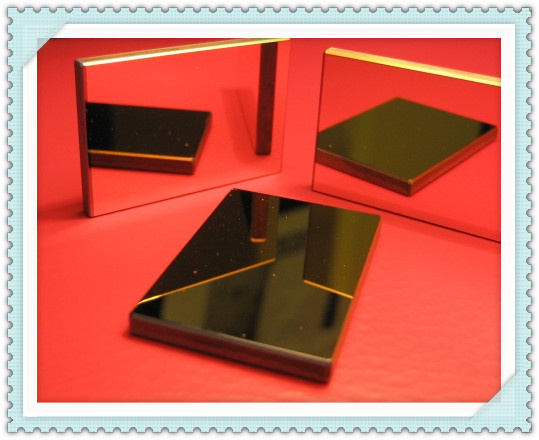

Antireflective coating is used to increase throughput of transmitted light of a component thus increasing the overall performance of the instrument.
Antireflective coatings range from single layers to high efficiency multi-layer coatings. The antireflective coatings can be vacuum deposited onto available substrates such as, Germanium, Silicon, Sapphire, Zinc Selenide and more for your infrared application. These NIR and FIR antireflective coatings can be designed for use at angles of incidence at 0° or away from the normal. It is also possible to optimise for particular wavelength bands.
Contact our sales team and discover how Alkor Technologies high quality Anti-Reflective coatings and service can improve your instrumentation and supply chain experience.
1. Single Layer Anti-Reflectance Coatings
With single layer coatings it is possible to optimise for particular wavelength bands. The single layer anti-reflection coating can be used in the 0.9 to 20µm waveband. Single layer coatings are cost effective compared to multilayer coatings as they are restrictive. Single layer AR coatings are not broadband however they are extremely efficient if used at a particular wavelength, these are classed as "V" coatings. Peak transmittance can be over 95% at a required wavelength.
2. Multilayer Anti-Reflectance Coatings
3. Multilayer Broad-Band Anti-Reflectance Coatings
High efficiency multilayer broadband coatings using multi-layers are used in the 3-5µm ,5-8µm or the 8-12µm wavebands, which are usually referred to as the atmospheric windows. It can have a peak transmittance of over 95% with a transmittance of over 90% at 2 to 5µm.
4. Partial Reflective Coatings (Beamsplitters)
4.1. Dielectric Beam Splitter Coatings
4.2. Metal Broadband Beam Splitter Coatings
5. High Reflective Coatings (Mirror lenses)
5.1. Dielectric mirror coatings
5.2. Optical Mirrors: Protected Aluminum, Protected Gold
6. Custom optical coatings and IR optical filters (narrow, broadband)
7. DLC coating (diamond like carbon)
Our specialist will make coating according to your specification. We use the following materials:
- ZrО2, ТiO2, SiO2, Y203 and others;
- PbTe, GeTe, Sb2S3, ZnS, ZnSe, AsSe4, As2Se3 and others;
- МgF2, PbF2, BaF2, SrF2;
- Si and Ge.
Qinhuangdao Intrinsic Crsytal Technology Co., Ltd, based in China, is a recognized leader in high-performance optical solutions across a broad infrared spectrum. Combining adequate IR material supply, extensive fabricating experience, and the standardized service, U-Optical specializes in producing high-precision IR optical components for the Medical/Life Sciences, Defense & security, Semiconductor, and Industrial OEM markets. From optics designing, to material purchase, to volume production, our company endeavor to optimize your IR products for performance, cost, quality and delivery.
Our Strengths
Ample, stable and cost-efficient supply of IR materials.
ICC also offers the ability to combine infrared material supply, precision optical processes, various coating, reliable inspection and commercial service into a complete procedure, providing full professional support for both optics and trades. This enables our customers to obtain the highest level of optical integration and business advantage, minimizing time and cost while ensuring quality, performance and manufacturability.
Consistent and high-performance manufacturing
During its years of operational experience, ICC have developed unique techniques of micro-polishing which enable to easily produce elements needed for high transmission and low scattering and absorption applications.
The accumulated experience in the IR optics market, in addition to the high qualifications and strong optical background of the company's leading staff allow U-Optics to be a reliable supplier to many OEM customers and R&D institutions around the world.
Excellent quality and efficient service
From design to delivery, our material control, in-process testing and final inspections assure that our products meet your highest specifications and quality standards.
Our sales team possess a wide range of experience of not only optics, but also the international business services. By staying close to our customers and giving straightforward honest advice, we are confident to provide our overseas customers with the excellent IR products from China.
Competitive Prices
ICC can offer the customers with most competitive prices and high quality of products, supported by the close associations with the domestic suppliers, its comprehensive optical manufacturing capabilities, as well as its strong ability in exploring overseas markets.
Stable and reliable business partner
We place equal focus on processing technique, customer service and innovative research. Meanwhile, we create customer value by understanding customer needs, by unconditionally guaranteeing our work and by keeping abreast of customer developments.
Contact us today to discuss your needs. To my email: Optics@intrnsiccrysal. COM Tel: 18833844340
