Product Specifications
| Prod Model: |
DEK-1325 |
| Voltage: |
380V,Single Phase,50/60Hz |
| Working Area: |
1300*2500*300mm |
| Spindle Power: |
5.5kw |
| Motors: |
Stepper Motor |
| Operating System: |
DSP Control System |
| Inverter: |
6.0kw Fuling Inverter |
| Drivers: |
Leadshine Drivers |
| Transmission: |
Taiwan Tbi Ballscrew |
| Table Surface: |
T-Slot Extrusion PVC |
| Warranty: |
12 Months |
| Function: |
Lettering |
| Application Material: |
Granite |
| Automation: |
Automatic |
| Control: |
CNC |
| Current: |
AC |
| Application: |
Stone Industry |
Product Description

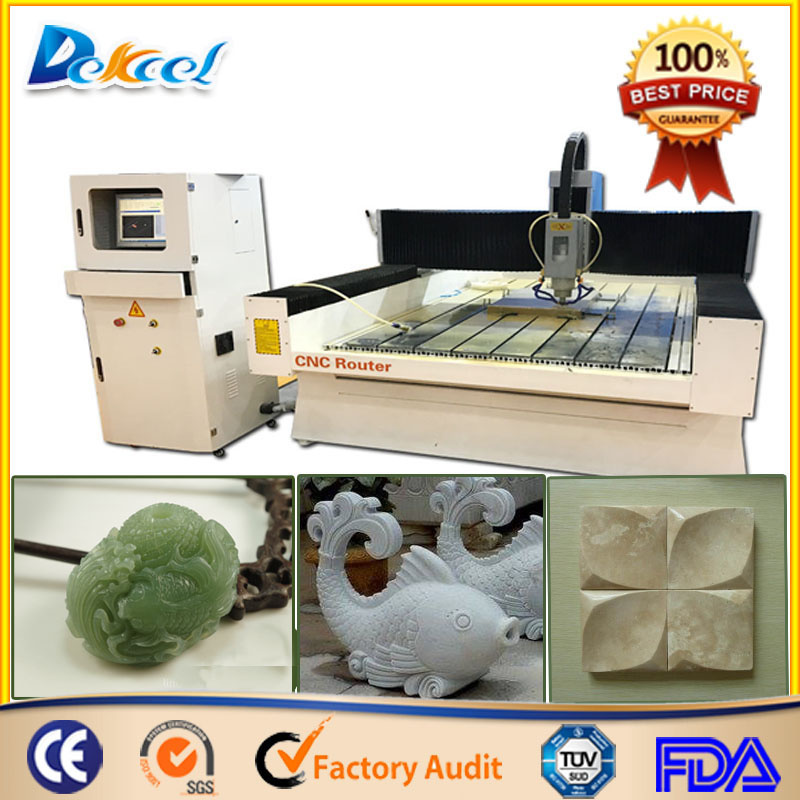

Granite Marble Stone Engraving cnc Router Machine low price
Introduction for Granite Marble Stone Engraving cnc Router Machine low price
DEKCEL marble engraving and carving machine can engrave letter or patterns on natural granite, marble,bluestone, crystal stone, rock quartz, crystal stone, microlite, all kinds of artificial stone, glass, village tablet, tombstone, milestone, decorating baseboard etc., Can make
protuberant engraving and hollow engraving. Engraving depth can reach 200mm.
Features for Granite Marble Stone Engraving cnc Router Machine low price
1.The machine bed is processed by 5 axies ATC solution, and which is treated by heat aging and relieved residual stress to get good rigidity, stableness and high precision.
2.Machine Table adopts heavy and thick steel, which improve load-bearing of the whole machine, it can bear 3 ton heavy stone.
3.Machine sides use heavy steel, it can reduce vibration during work, then improve processing accuracy.
4.Gear wheel for X Y axis, ball screw are uncovered, so it is very easy to clean it, after work, ball screw can be cleaned for many times.
5.Water tank can be moved, it is easy to clear
6.Three axises by ball screw transportation, adopt advanced electrical parts and control system. Machine idle stroke speed is 20m/min, running speed is 15m/min
Technical parameter of Granite Marble Stone Engraving cnc Router Machine low price
| Items | Parameters |
| Working area(mm) | 1300mm*2500*300mm |
| Table Structure | 1.5 mm stainless steel T-slot table |
| Transmission system | X,Y axis Gear Rack from Taiwan,z axis Ballscrew from Taiwan but with German technology |
| Lead rail system | Linear round guide rail |
| Spindle power | 3 kw Water-cooling ,3.175/4/6/12.7mm |
| spindle speed | 0-24000 rpm |
| Motor | stepper(Panasonic/Yaskawa optional) |
| Drive | Stepper / Servo Motor |
| Dust collector system | For your option |
| Tool sensor | Option |
| Software environmant | Windows 98/2000/XP |
| Control System | Ncstudio control system [DSP is optional] |
| Compatible file formats | G code ; *.u00 ; *.mmg ; *.plt . |
| Compatible CAD/CAM Softwares | Ucancam V8 / Type3 / Artcam / |
| Working Voltage | AC380V,3ph, 50Hz |
| Precision | 0.005mm |
| Max speed | 26.0m/min |
| Max engraving speed | 18.0m/min |
| Max feeding height | 200mm |
| Work-holding devices | by fixture |
| Interface type | USB |
| Warranty guarantee | One-year after-sale services |
Application
Marble/stone: engraving on various granite, bluestone, marble, grit stone, ceramic tile,
soapstone, etc.
Metal: light metal like aluminum and brass
Woodworking: wood, plastic, PVC, density board, acrylic, etc.
Marble engraving and carving machine samples
Warranty and technical support
12 months for the whole machine
24 Hours technical support by email or calling
User friendly English manual and Video CD for machine operation and maintain
After-sale service
1.Small parts will be supplied to you for free, such as, software CD, dongle.
2.Any problem will be replied to you within 24 hours!
3.By video, solution manual in English, Email, Skype, QQ, telephone etc.
4, We supply lifelong after-sale service under our professional's guide for free!
5, Free training in our factory.
FAQ
1,How about the documents after shipment?
After shipment, we ll send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
2,How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 20 days.
3,Do you arrange shipment for the machines?
Yes, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
