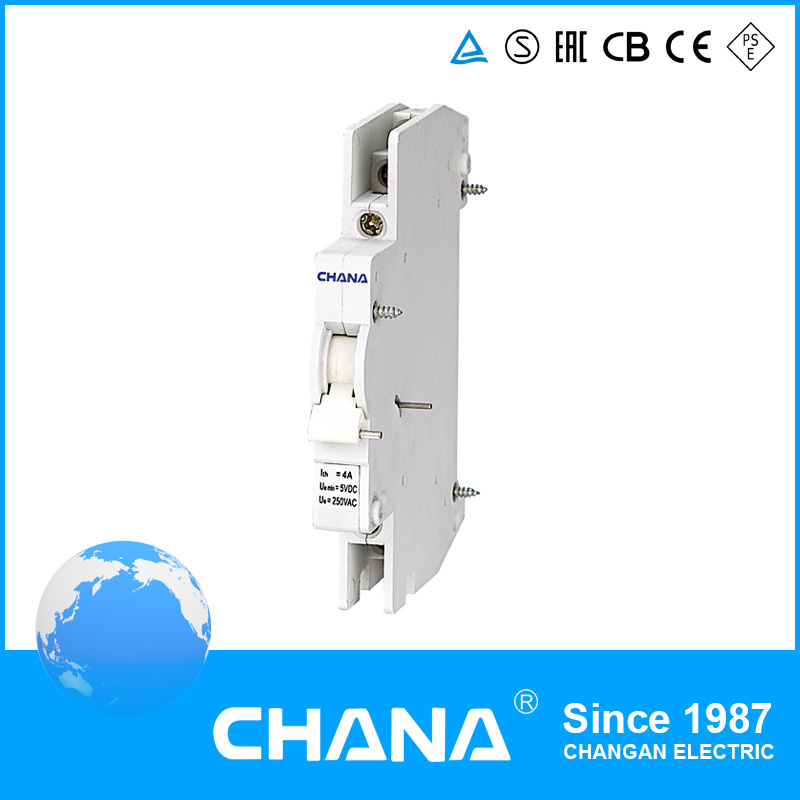

MCB Auxiliary Contact Ekm1-of for Ekm1, Ekl3
| Price: |
US $ 2-2.2/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
Product Specifications
| Prod Model: |
EKM1-OF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Manufacturer: |
Original Factory |
| Company Size: |
2000 Stuff |
| OEM: |
Acceptable |
| Export Market: |
Global |
| Company Credit Rate: |
AAA |
| Quality: |
AAA |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCB |
| Poles Number: |
1 |
| Certification: |
SGS |
Product Description
Description For EKM1-OFFree samples can be provided!!!Technical DataEKM1-OF&EKM1-FB
Electrical Features | Rated value | A C415 /400V 5 0/60Hz 3A
A C240 /400V 50/60Hz 3A
D C130V 1A
D C48V 2A
D C24V 6A |
| Configurations | EKM1-OF 1N/O+1N/C
EKM1-FB 1N/O+1N/C |
| Rated impulse withstand voltage (1.2/50)Uimp | 4000V |
| Rated short circuit making capacity | 20le, t=0.1s |
| Dielectric test voltage at ind. Freq. for 1min | 2kV |
| Insulation voltage Ui | 500V |
| Pollution degree | 2 |
Mechanical Features| Electrical life | 6,000 |
| Mechanical life | 10,000 |
| Protection degree | I P20 |
| Ambient temperature (with daily average≤35ºC) | -5ºC...+40ºC |
| Storage temperation | -25ºC...+70ºC |
Installation| Terminal connection type | Cable |
| Terminal size top/bottom for cable | 2.5mm2 18-13AWG |
| Tightening torque 0.8 N*m | 7In-Ibs. |
Item | Data |
| Contact operating | AC: Un=415V In=3A Un=240V In=6A |
| current | DC: Un=130V In=1A Un=48V In=2A Un=24V In=6A |
| Dielectric Properties | Auxiliary contact should bear 2000V, |
| 1 min frequency voltage withstand test. |
| Life | The operating life of auxiliary contact |
| shall never be less than 5000 times. |
About US: Changan Group Co.,Ltd was established at years of 1987,which is leading of industrial electric appliances,integrating the research&development,manufacture,trade,information service functions together. At present,group have passed ISO9001,ISO14001,OHASA18001 and acquired 3C certification for all products,all of our export product are strictly production according to ISO9001 and IEC standard,some product had got CE,CB,SMEKO,KEMA certification.The company has owned 10 son companies,50 sales branch,3000 employees ,areas of 0.4 million square meters,registered capital reached 26 million,yearly out put value reached 346 million.The company has the honor to be titled as "China star enterprise","China top 500 private enterprise","China top 500 in machinery industry","China top 10 of LV electric appliance".Our product range:AC/DC Contactor,LV circuit Breaker,Surge protector,Relay,Isolating switch,changeover switch,limit switch,magnetic starter,soft starter,press reduce starter,transformer,voltage stabilizer,voltage regulator
1,Circuit Breaker: MCB,RCCB,RCBO,MCCB,ACB,SPD,ATS.
2,Contactor:AC/DC contactor,Mini Contactor,Capacitor switching contactor,modular contactor,Mechanical interlocking ac contactor
3,Relay: Thermal overload relay,time relay,power relay,general relay,Crystal level relay,Pump water level automatic controller,CAD6 controller relay,Phase broken and phase sequence protection relay
4,Switch:Pushbutton switch,limit switch,CAL control box,Rotary switch,Isolation Switch,Float Switch,Cam starter and LED indicator,Mircocomputor control wsitch
6,Stabilizer and Regulator
7,Starter:Cam starter,magntic starter,Star-delta starter,soft starer,press reduce starter.
8,Meter and Instrument
9,Transformer:Current transformer and fuse
10,Motor protector:JD8,JD5,JD6
11,Distribution Box,Plastic distribution box,Metal distribution box,distribution cabinet
12,Capacitor,Compensator,Speed controller
13,LV Switchgear:0.4kV GCK,GCS,MNS,GGD,PGL1/2,XL-21.JJ1
14,MV Switchgear:10kV GZS1-12Z,KYN1-12(Z),KYN1-12(Z),JYN2-12(Z)XGN2-12;35kV KYN61-40.5(Z) JYN1-40.5(Z)
15 Box type substation:YBM,YBP.YB612/0.4
16,Intelligence Switchgear:GZD(W),CAR1-G
17,HV element:GW5-40.5 out door AC HV isolation switch,
ZN85B40.5/ZN23(39)-40.5/ZN63A(VS1(-12 indoor Vacuum circuit breaker,
ZW7-40.5,ZW8-12,ZW32-12 outdoor vacuum circuit breaker
18,Cable branch box:XGW-12,DFW-12-T,DZW-12,DUW-12,DMW-12
Shipping:1. Normally by SEA From NINGBO TO ...
2. Products are shipped via UPS / DHL / FedEx / TNT and so on expresses (door to door) If the amount is Small.
3. We Provide Drop shipping Service.
4. In order to ensure you receive your order tax free upon import, we can declare lower value according to your demand.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.Payment:1. We usually use T/T (30% deposit before production and 70% to be paid against the copy of B/L).
2.If the Amount is small, you can pay to us by western union/Paypal/Money Gram.
3. L/C also acceptableWarranty:1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goodsOur Services:A. Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.
B. After-service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 18 months warranty after goods arrive.
We Positively Revert Your Complain Within 48hours.
C. Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With All Technical Support From Engineer Team.FAQQ 1. What's the payment term?
A. We accept tt,30% deposit and 70% balance against the copy of b/l.
Q 2. How's the delivery time?
A. Usually it will take about 25 days for production.
Q 3. Tell me the standard of package?
A. Normally are cartons, but also we can pack it according to your requirement.
Q 4. Could you offer form a? or c/o?
A. It's totally not a? problem. We can prepare relative documents to foreign affairs office or other office??to apply for this certificate.
Q 5. Would you accept to use our logo?
A. If you have good quantity, it absolute no problem to do oem.

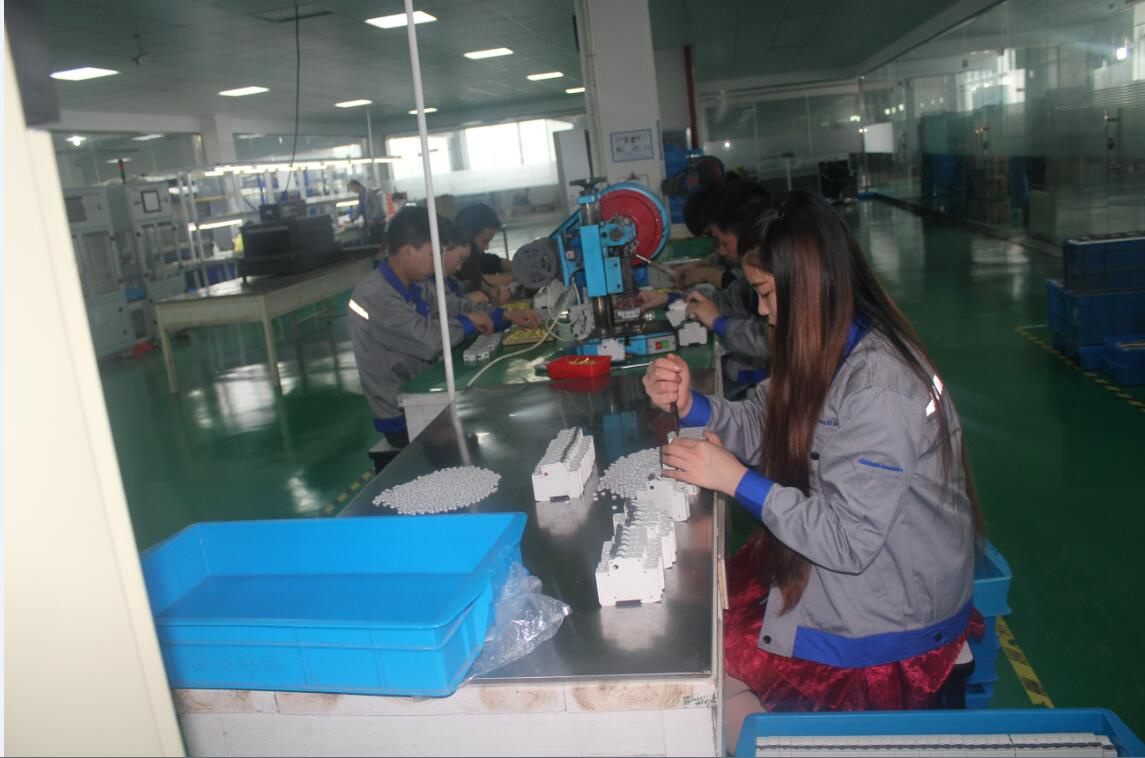

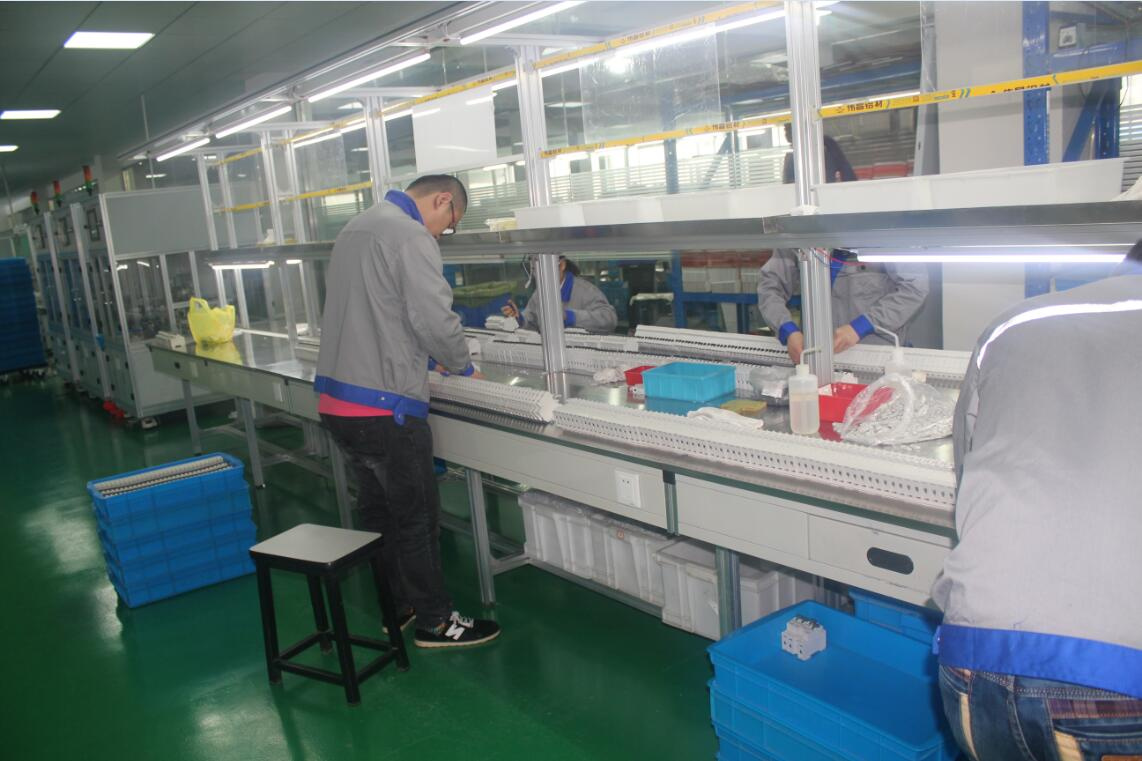

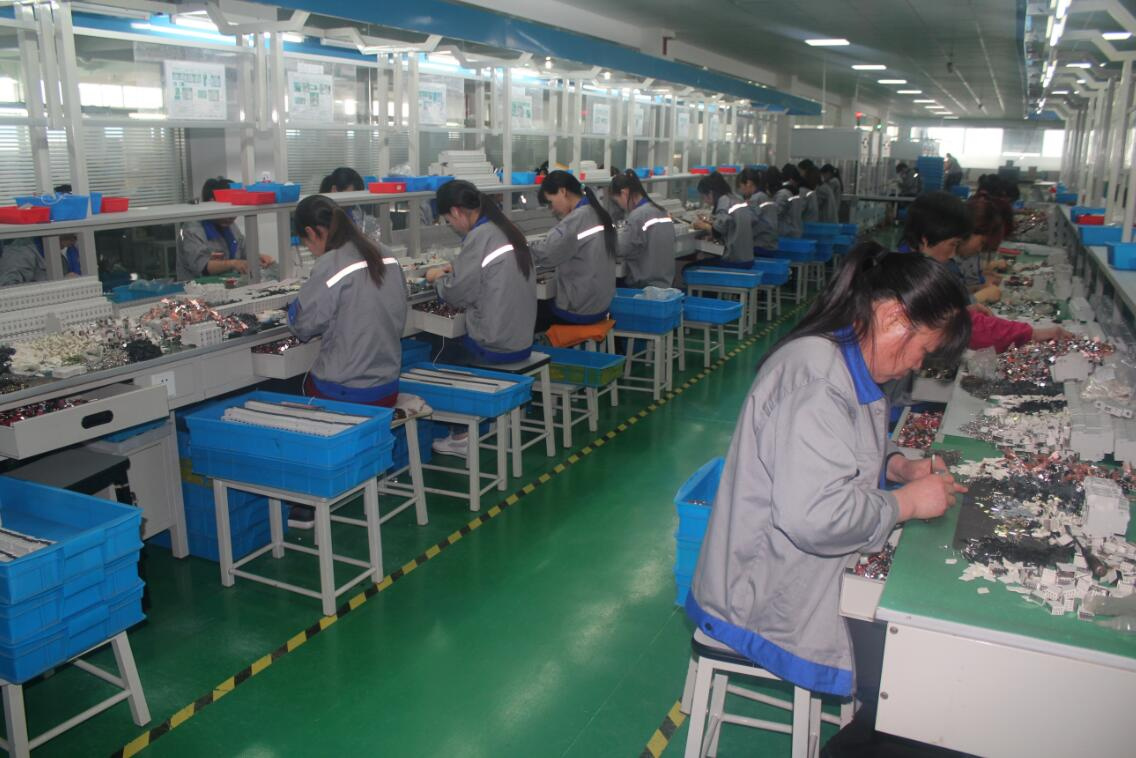

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.
