| Price: | US $ 1299-3999/Set |
|---|---|
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Western Union |
| Prod Model: | ELE1212 |
|---|---|
| Power(W): | 5kw |
| Weight: | 250kg |
| Control System: | DSP A11 Control System |
| Spindle: | Water Cooling Spindle |
| Spindle Power: | 2.2kw |
| Spindle Speed: | 0-24000rpm |
| Motor: | 450A Stepper Motor |
| Driver: | Leadshine M542 Driver |
| Inverter: | 2.2kw Fuling Inverter |
| Table Surface: | T-Slot Working Table |

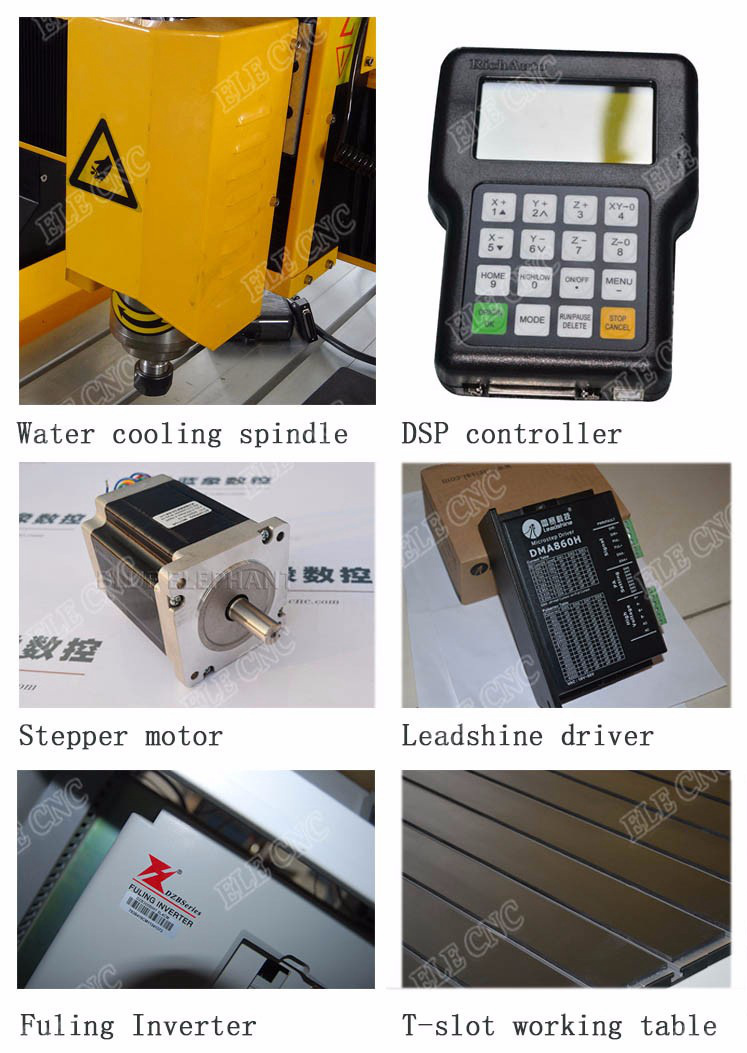

Features of cnc machine 1212:
Parameters of cnc machine 1212:
Descriptions | Parameters |
Working area | 1200*1200mm |
Spindle | 2.2KW water cooling spindle |
Spindle rotating speed | 24000RPM |
Motor | Stepper |
Inverter | FULING brand |
Control system | DSP A11 |
X,Y,Z | Ball screw imported from Taiwan |
Table surface | T-slot working table |
Frame structure | Cast aluminum structure |
Positioning accuracy | ±0.02/300mm |
Repositioning accuracy | ±0.01mm |
Max. engraving speed | 6,000mm/min |
Max. motion speed | 8,000mm/min |
Tools diameter | ER20 |
Dictate format | G code,U00,mmg,plt/HPGL/NC |
Compatible software | Type3,Ucancam,ArtCAM |
Support software | Windows98/2000/XP |
Working supply | AC220V, 1 phase,50/60HZ(110V for option) |
Guarantee | One year |
option | vacuum table, dust collector, rotary device, mist sprayer, flume |
Application | Furniture, wood craft, decorative products, signs, building models, metal, embossed pictures. |
Technical support | 24 Hours technical support by email or calling User friendly English manual and Video CD for machine operation and maintain |
PS:All the working area and specifications can be customized according to your requests.

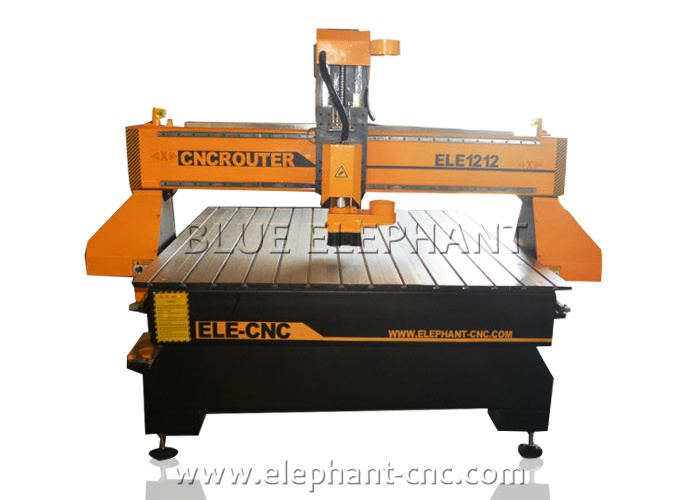

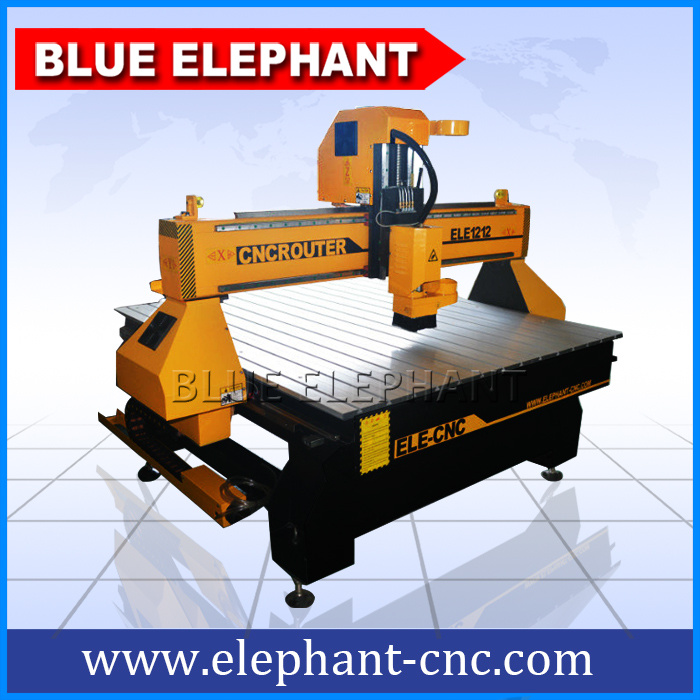

Product Details of cnc engraving machine 1212:
Applications:
1.WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors,interior doors, sofa legs, headboards and so on.
2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4.Relief sculpture and 3D engraving
Samples:

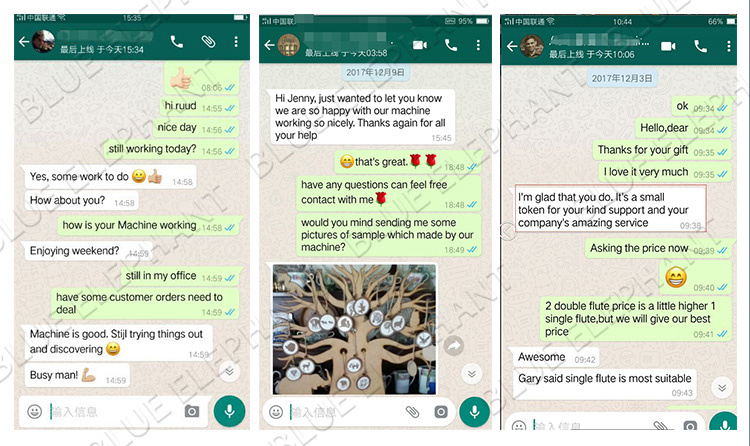

Feedback:
Packaging & Delivery:
Packaging Details: 1.Outside package:Standard marine export plywood case.
2.inner package:Stretch film and plastic film for humidity.
We can package according to your requests.
Delivery Detail: Shipped in 10 working days after payment.
Our Service:
1, Within 7 days since your local customs clearance: if the cnc router's any parts has any problems, we will change it free.
2, Exceed 7 days since your local customs clearance but within warranty period: if the cnc router parts have any problems, we can change the old machine parts to new ones free, but you should pay all the shipping cost.
3, Exceed warranty period: if the cnc router parts have any problems, we can offer new machine parts with cost price and you also should pay all the shipping cost.
4, We offer 24 hours technical support by call, and email.
5, Our technician can give you remote guide online(Skype or MSN) if you have any question.
6, We can record videos of operating the laser machine.
7, Free training course in our factory.
8.Machine will be adjusted before it is delivered, operation disk/CD was included.
