Product Specifications
| Prod Model: |
Hofic-H0394 |
| Quality Warranty: |
12 Months |
| Motor Choice: |
German Sew / China Sej |
| Control Panel: |
Japan Mitsubishi |
| Command System: |
Radar Sensor, Magnetic Loop , Remote Control, |
| Normal Working: |
-35 to 65 Celsius Degree |
| Standard Motor Position: |
Left or Right |
| Installation Base: |
Concrete,Panel, Brick,Steel Structure. |
| Safety Device: |
Photocell Sensor(Korea Autonics) |
| Door Frame Structure: |
2.0 mm Galvanized Steel / 304 Stainless Sheet |
| Wind Resistance: |
Class 12 |
| Opening Type: |
With Remote Control |
| Certification: |
SGS |
| Position: |
Interior |
| Surface Finishing: |
Finished |
| Material: |
Aluminum Alloy + PVC Fabric |
| Type: |
Stacking |
| Open Style: |
Stacking |
| Special Function: |
Insect Prevention+Dust Prevention |
| Color: |
Yellow Orange Red Grey Blue Green |
Product Description

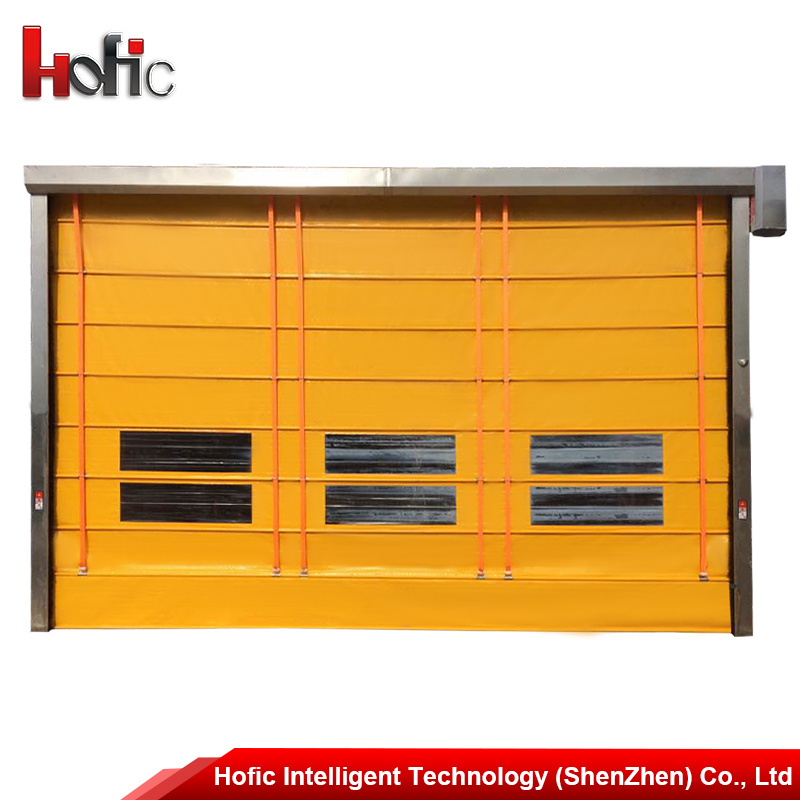

Automatic High Speed Roller Shutter Stacking Door Product Details
| PVC Fabric | Fabric Color: Blue/White/Green/Yellow/Orange/Red/Transparent
Color curtain:0.8mmthickness.
Transparent curtain:1.2mm.
Function:insect prevention |
| Door Frame | 201/304 Stainless Steel/Galvanized Steel |
| Bottom Bar | Aluminum alloy 95mm width
Function:reinforce the crutain to keep the door opening without a hitch |
| Radar Sensor | The place on the cover box. Can detect 3 meters area!
Function: detect the moving thing and open the door.
For the place which has more people through. |
| Photocell Sensor | Function:It's stop the door when the door is closing and someone through the door. |
Drive System | High speed door motor: Germany brand(SEW)and Our own brand Hofic.
Germany SEW motor(380V/220V 50Hz 0.75KW,1.5KW,2.2kw.)
Our own brand Hofic(380V/220V 50Hz 0.75KW,1.5KW,2.2KW) |
| Control System | Control box:Include control system+PLC+transducer+encoder+airbag system.
Brand:Japan Mitsubishi and Our own Hofic
Function: all the control system are inside in it. |
| Cover Box | Material: Stainless steel201#or304#
To avoid corrosive thing corrode the roll and dustproof |
| Opening Way | Radar sensor+push button for People through
Magnetic loop+push button for forklift through |
| Running Speed | Open Speed:0.8-1.5 m/s
Close Speed:0.6-1.0 m/s |
Material Selection:
1. Frame: 2MM thicknesses cold-roll Stainless steel.
2. Motor: Germany SEW brake motor (outer), power 0.75KW, power supply 220V.
3. Control system: Imported Japan Mitsubishi converter and PLC to control of electric box (150%1HZ)
4. Opening & closing speed: 0.6-1.5m/s (adjustable).
5. Safety Device: Korea Photocell Sensor, emergency stopping reaction when sensing obstacles.
6. Curtain: France high-density polyester fiber and the surface coating processing, thickness 0.8MM, variety colors can be
chose: Red, yellow, blue, green, orange, gray, white, transparent, etc. Tensile strength: 4000/3500N/5cm, tear strength
600/600N. Fire-proofing level: German standard DIN75200 Usage temperature: -30 C +70 C.
7. Wind resistant: The Aluminium alloy Reinforce Girder to increase wind resistant effect.
8. Curtain replacement function: Aluminium alloy Reinforce Girder is loaded between 2 pieces Curtain, can be replaced
easily if any curtain broken, save your cost.
9. Transparent window: 1.2MM thickness transparent PVC window, size and location is up to your request, more safer.
10. Seal: Seal brush are Installed inside the guides, and the special bottom design, to fit any uneven ground.
11. Cotrolling way: Push button + radar sensor, very convenient.
12. Limiting Switch: Mechanical limiting switch, easily and exactly.
13. Emergency STOP: With emergency stop button on control panel, can stop easily by
Hand once disconnect or accident
14 Fault recovery function: All Hongfa's production is with fault recovery function, system will self-recovery after power cut off.
15. Delivery time: About 7 business days with contract and deposit confirmed.
16. Pyament item: 50% before production, and the other 50% before shipment.
17. Warranty Details: We provide 12 months warranty for all doors and accessories (except man-made disasters, Irresistible
natural disasters, ect^).
18. Above quotation contains door and all of its accessories.
19. This quotation period of validity is 2 months.
If you are interested in our products,please see the bottom of this page and send the inquiry. I will give you more information.↓
Company Information
Hofic Intelligent Technology Co.,ltd. is a high-tech company that engages in the development of world-class
advanced automatic doors. Our main products include quick rolling door, industrial accumulation door, industrial rolling
door, PVC rolling door, rapid rolling door, fire-resisting rolling door, industrial lift door, automatic induction door,
automatic vertical hinged door, medical automatic door, stainless steel automatic door, electric folding gate, crystal
rolling door, electric roller shutter of various materials, and parking lot series.
