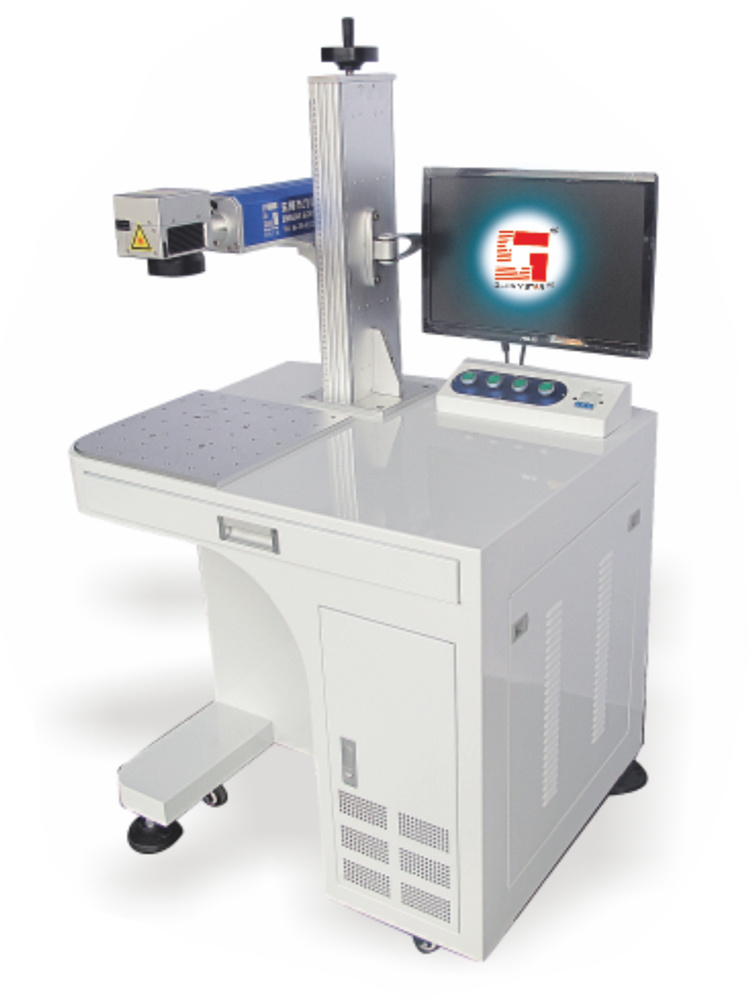

High Precision UV Laser Marker Machine for Crystal
| Price: |
US $ 35000-39000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
Product Specifications
| Prod Model: |
UV3W/5W/7W/10W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Name: |
UV-3W/5W |
| Laser Type: |
ND:Yvo/355nm |
| Maximun Laser Power: |
3W/5W |
| Laser Beam2: |
1.1 |
| Laser Source: |
Diode 808nm Pump Laser Source |
Product Description
Product Details
Basic Info.
Model NO.:UV-3W / 5W / 7W / 10W
Engraving Machine Type:Laser Marking Machine
Usage:Marking for Various Materials
Power:3W / 5W / 7W / 10W
Certification:SGS, CE, ISO 9001, FDA
Laser Type:Diode
Condition:New
Model No:UV-3W/UV-5W/ UV-7W/ UV-10W
Laser Source:Diode 808nm Pump Laser Source
Marking Speed:400 Characters / S
Marking Area:110mm*110mm / 180mm*180mm
Dimension:900*680*1200mm
Working Voltage:220V 50Hz 10A
Export Markets:Global
Additional Info.
Trademark:Glorystar
Packing:Package by Plywood
Origin:Dongguan City, Guangdong Province, China
HS Code:8456100090
Production Capacity:8000 PCS / Year
Product Description
Product Features
1.Using the German semiconductor laser pumping, three times optical resonant cavity frequency doubling output 355nm wavelength laser.
electro-optical conversion efficiency, high beam quality is TEM 100 mode.
2.UV laser is a cold light source, heat-affected zone is small, excellent beam quality to create ultra fine marking results.
3.Imported scanning, marking fast, suitable for both micro-cutting and drilling.
4.High and ultra-high peak power characteristics with minimal thermal effect, very suitable for alumina, zirconia ceramic drill cutting.
5.Lasers 20,000 hours maintenance free, no supplies, use of low cost, energy saving.
6.The software can receive DXF,PLT,BMF,AI,JPG and other formats, and can automatically generate serial number and production date, barcode, two-dimensional code.
Applicable Industry
Metal and nonmetal materials, such as ceramic, sapphire, glass, transparent polymeric materials, plastics, etc.
Applicable Materials
Consumer electronics, mobile phone parts, LCD screen, two-dimensional code and trademarks sculpture, ceramics, sapphire piece, FPC flexible circuit board microdrilling.
Cutting biomedical glass engraved lines, capactive touch screen ITO etching.
Technical Data
Model name | UV-3W/ 5W | UV-7W / 10W |
| Laser Type | ND: YVO | ND: YVO |
| Wavelength | 355nm | 355nm |
| Laser source | Diode 808nm pump laser souce | Diode 808nm pump laser souce |
| Maximum Laser Power | 3W/ 5W | 7W / 10W |
| Laser beam | 1.1 | 1.3 |
| Minimum character | 0.1mm | 0.1mm |
| Minimum line width | 0.01mm | 0.015mm |
| Speed | 400 characters / second | 500 characters / second |
| Repeat precision | ±0.001mm | ±0.001mm |
| Working area | 110mm*110mm / 180mm*180mm | 110mm*110mm / 180mm*180mm |
| Dimension | 900mm*680mm*1200mm | 900mm*680mm*1200mm |
| Gross Weight | 120kg | 120kg |
| Power | 220V / 50Hz / 10A | 220V / 50Hz / 10A |
| Gross Power | 1.2 KW | 1.5 KW
|
1. Features:
Good laser beam, stable laser output and high marking precision.
Small heat-affected zone, which will not damage processed material
Fast marking speed
High stability, compact design and low power consumption
2. Applications:
It can mark logo, character, serial number, bar code or data matrix on electronic components, charger, wire cable, mobile phone and computer accessories, PVC tube, flexible PCB, wafer, rubber, etc.
Dongguan GloryStar Laser Technology Co. Ltd is a Sino-German cooperation laser machine manufacturer in China, which integrates mechanical, optical, electronic technology together. GloryStar laser Tech is one famous brand in China as well as the world. We have exported our machines to over 100 countries and supply the professional laser application for our customers. More than 10K sets laser machines are working in the market by now.
We specialize in export and service of various types of laser machinery, such as:
1. Diode Pump (Side) series laser marking machines. (Apply for electronic component, hardware, tooling, telecommunication, clocks and watches, plastic and glass parts, automobile, medical equipment, jewelry, architecture construction, packing fields. )
2. End Pump laser marking machines. (Apply for plastic products, digital products, precise machinery, jewelry, sanitary appliance, measuring and cutting tooling, clocks and watches, electronic components and applicants, hardware accessories and tools, telecommunication, automobile parts, architecture construction, packing fields, etc. )
3. Fiber laser marking machines. (Widely used in electronic components, medical equipments industries, watches and glasses, IC card industry, plastic tooling industry, mobile phone and PC keyboard, kitchen and bathroom appliance, etc. )
4. CO2 Series laser marking machines. (Widely used in various consumer products, food and beverage packing garment accessories, cloths and crafts, leather and rubber, nameplates, construction and ceramic, jeans, etc. )
5.3D Dynamic Focus Large-Scale laser marking machines. (Apply to art crafts, bamboo and wooden products, advertising decoration, clothing and leather, jewelry and architecture model, etc. )
6. On-Line laser marking machines. (Widely used in medical, chemical, electronic, tobacco, wine, food and beverage industries)
7. Laser cutting/engraving machines. (Apply for fabric, garment, embroidery, toy, handbag, model making, advertisements, decoration, electronic appliances, plastic, metal industries, etc. )
8. Two Head laser cutting machines. (Apply for fabric, garment, embroidery, toy, handbag, model making, advertisements, decoration, electronic appliances, plastic, metal industries, etc. )
9. Video Camera laser cutting machines. (Widely used in woven labels, logos and trademarks, various embroidery badges and crafts, etc. )
10. Shoes Industry Double heads laser cutting/engraving machines. (Widely used in vamp and outsole of shoe manufacturing process, also apply to the leather bag manufacturing industries. )
11. Specially applied for acrylic or MDF cutting machines. (Widely used in Acrylic and MDF board processing)
12. Movable and Exchanging Table laser cutting machines. (Apply for costume, shoes, cases and bags, computer embroidery, model making, electronic components and appliances, toys, furniture decoration, advertisements, arts and crafts, packing and printing, etc. )
13. Rotary Lifted Flat laser cutting machines. (Widely used in leather, cloth, organic glass, acrylic, rubber, plastic, wood, bamboo, ceramic industries. )
14. Auto Feeding and Unloading laser cutting machines. (Apply for garment, toy and handbag industries. )
15. Sheet metal fiber laser cutting machine. ( widely used for cutting steel, Iron, Stainless steel, Aluminum, Copper and other metal materials)
Glory Star can also manufacture the product designed by the customer' S requirement (OEM). We can arrange and negotiate everything for you: Price, transport, import duties, insurance, and taxes. All you have to do is tell us what you want.
Our Motto: Offer good quality, fair price and excellent service
We sincerely welcome our friends from all over the world.
