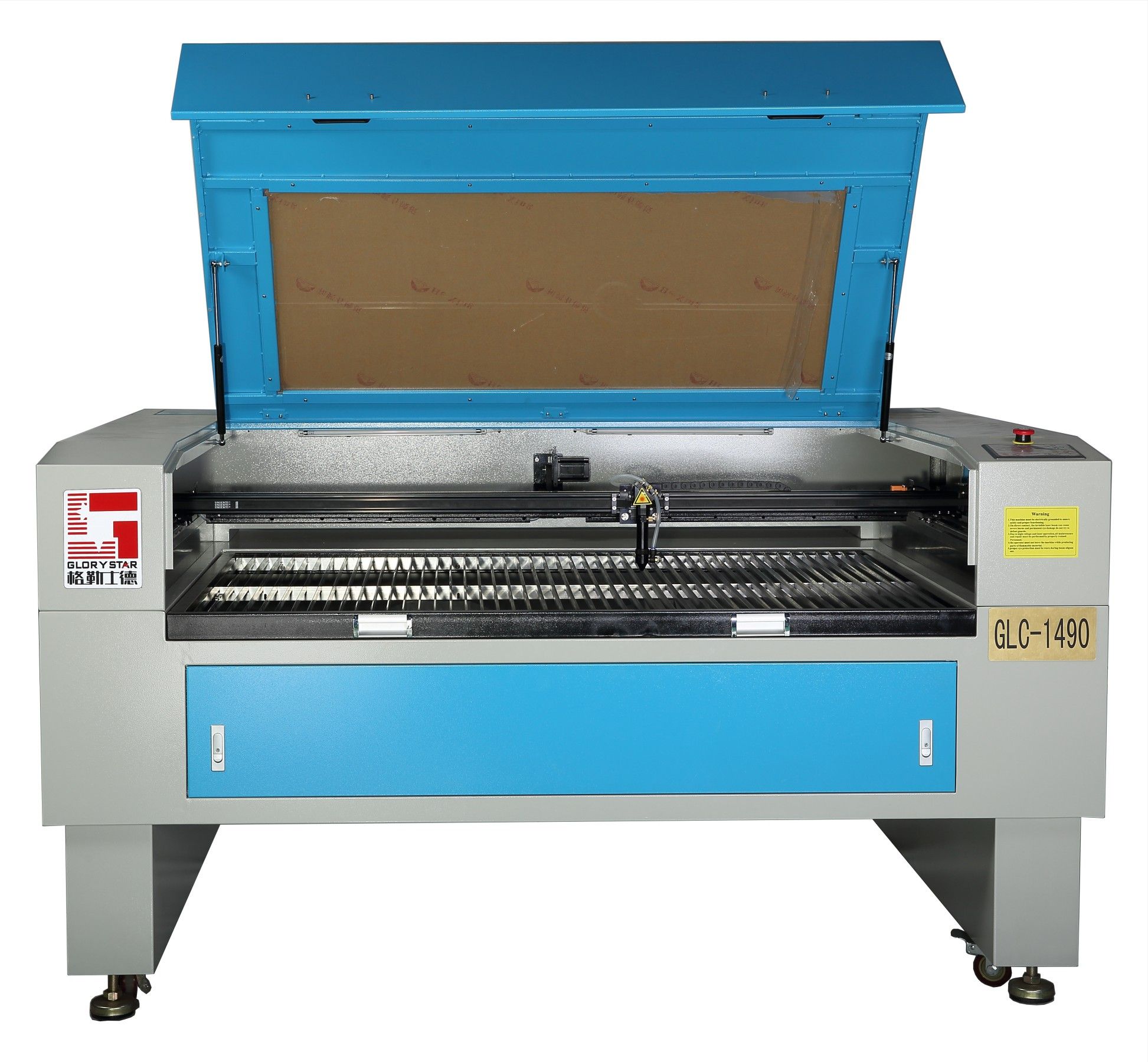

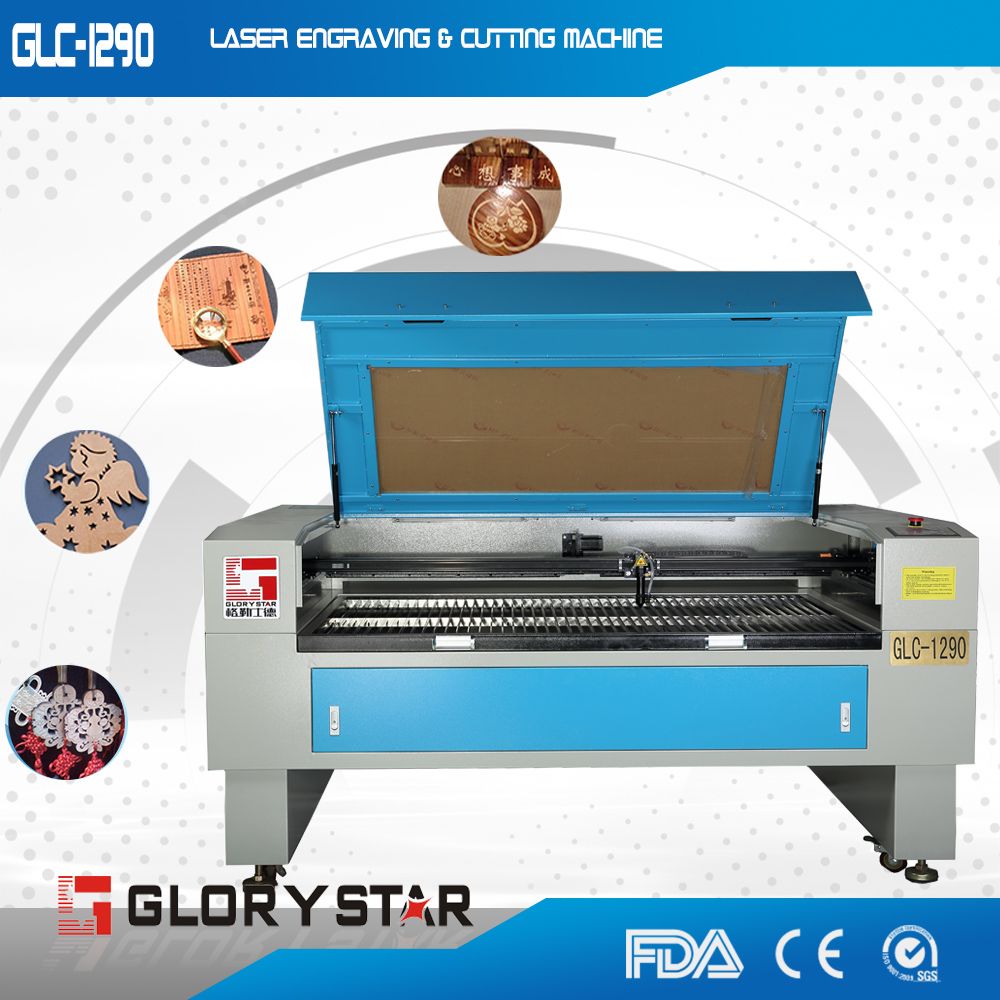

80W Glass Tube Laser Cutting and Engraving Machine for Cloth
| Price: |
US $ 3000-5000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
Product Specifications
| Prod Model: |
GLC-1290 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
GLS-1080V |
| Laser Source: |
Reci, Sp,Efr, Yongli |
| Warranty: |
One Year for Whole Machine, Except for Consumable |
| Other Parts Included: |
Exhaust Fan, Water Chiller, Air Pump |
| OEM Services: |
Supported |
| Package Dimension: |
1700*1500*1270mm |
| Export Markets: |
Global |
| Motor: |
Stepper Motor |
| Laser Type: |
CO2 Glass Laser Tube |
| Product Name: |
Laser Cutting Machine |
Product Description
80W Glass Tube Laser Cutting and Engraving Machine for Cloth
Product featuresCO2 Laser cutting/engraving machines series are very popular in the market around the world. They has the high speed, high cutting accuracy and high stability. The quality and price ratio is very high.
This series laser cutting/engraving machines imported origionaly division stepping motor and driver from USA. Origional straight-line-guiding-track from Japan. High speed USB 2.0 port, LCD and silicon panel, water-cooling system, domestic-made glass CO2 laser tube, sealed
Laser beam by use of the imported Lens and mirros, ensure high cutting speed and long life time of laser tube.

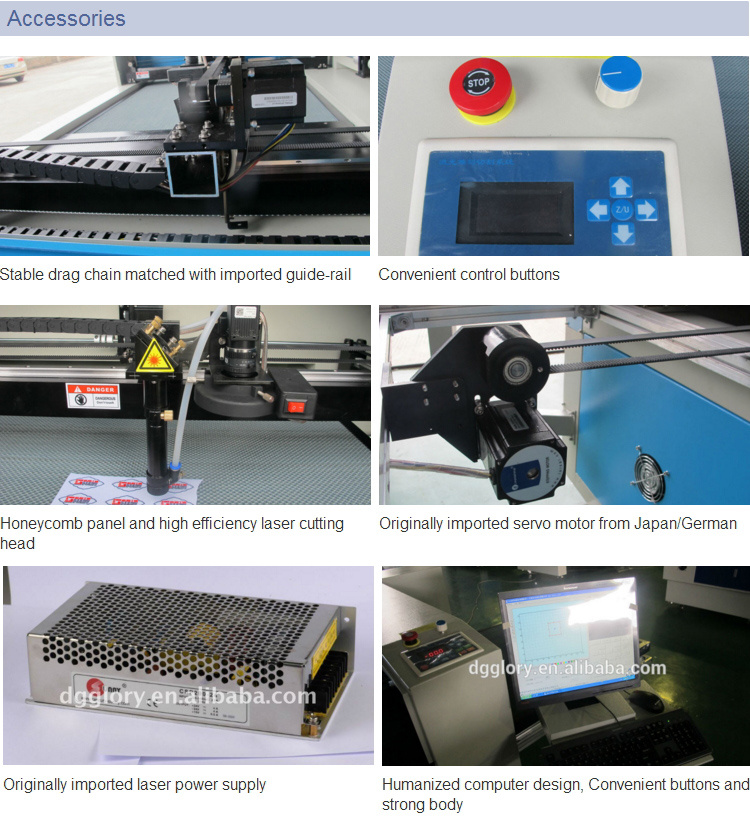

Accessories
ApplicationsEngraving/cutting of fabric and leather in garment, embroidery, toy, handbag, glove precisioncutting of decoration board and non-metal board, like Acrylic and medium-density board in ads, upholstery, electrical appliance and plastic industry, Cardboard box industry, rubber printing plate engraving. Ultra-thick material surface carving.
MaterialsWood, paper, leather, choth, organicglass, resin, acrylic, wollens, plastic, rubber, ceramic tille. Crystal bowlder bamoo and other non-metal material.
Sample Show
Technical Data| Model | GLC-6040/9060/1080/1290/1490/1610 |
| Laser Type | CO2 laser |
| Laser Power | 60W/80W/100W/130W |
| Engraving Speed | 0-64m/m |
| Cutting Speed | 0-36m/m |
| Repeat Accuracy | ±0.05mm |
| Moving System | CNC control system |
| Cooling Mode | Water-cooling and protection system |
| Overall Power Consumption | ≤1250W |
| Working Voltage | 220±10% 50Hz(60Hz) |
| Operating Temperature | 0~45ºC |
| Operating Humidity | 5%-95% |
| Controlling Software | Glorystar laser software |
| Graphic Supported Format | PLT,AI,JPG,PNG,TIF,PCX,TAG, MP,IOO,GIF, |
| Model | Working Area: | G.W. | Package Dimension: |
| GLC-6040 | 600mm*400mm | 290KG | 1620mm*970mm*1270mm |
| GLC-9060 | 900mm*600mm | 320KG | 1900mm*1250mm*1270mm |
| GLC-1080 | 1000mm*800mm | 440KG | 1940mm*1500mm*1270mm |
| GLC-1290 | 1200mm*900mm | 520KG | 2040mm*1600mm*1270mm |
| GLC-1490 | 1400mm*900mm | 600KG | 2100mm*1600mm*1270mm |
| GLC-1610 | 1600mm*1000mm | 660KG | 2280mm*1690mm*1270mm |
About UsDongguan Glory Star Laser Technology Co., LTD, Sino-German cooperation, focusing on laser technology & applications, after years of continuous innovation and development, has become a well-known large-scale manufacturer of laser equipment. The company owns office building, R&D Building, machining shop, painting and welding shop, assembling shop, modern showroom and standard industrial factory. The company's main products are metal laser cutting machines, non-metal laser cutting machines, laser marking machines,laser welding machines and bending machines. The annual production capacity of 8,000sets of products sold in more than 100 countries and regions. The company was identified as the national high-tech enterprise, and repeatedly won the technology Innovation Award. As a leader in laser equipment,Glorystar Laser technology Co.,Ltd has a complete R&D system, with many domestic famous universities and research institutions to maintain the close optical and technical cooperation, also is Nanyang institute of science and technology Graduate Trainee base. Products made EU CE certification and the SGS certification, and in all aspects of the incoming, process, machine, shipping and other compliance with ISO quality and environmental management system management guidelines to ensure that the national quality. Carrying the Global view sight, GLORYSTAR keeps on focusing the laser science and technology to share with you in the future successfully
Dongguan GloryStar Laser Technology Co. Ltd is a Sino-German cooperation laser machine manufacturer in China, which integrates mechanical, optical, electronic technology together. GloryStar laser Tech is one famous brand in China as well as the world. We have exported our machines to over 100 countries and supply the professional laser application for our customers. More than 10K sets laser machines are working in the market by now.
We specialize in export and service of various types of laser machinery, such as:
1. Diode Pump (Side) series laser marking machines. (Apply for electronic component, hardware, tooling, telecommunication, clocks and watches, plastic and glass parts, automobile, medical equipment, jewelry, architecture construction, packing fields. )
2. End Pump laser marking machines. (Apply for plastic products, digital products, precise machinery, jewelry, sanitary appliance, measuring and cutting tooling, clocks and watches, electronic components and applicants, hardware accessories and tools, telecommunication, automobile parts, architecture construction, packing fields, etc. )
3. Fiber laser marking machines. (Widely used in electronic components, medical equipments industries, watches and glasses, IC card industry, plastic tooling industry, mobile phone and PC keyboard, kitchen and bathroom appliance, etc. )
4. CO2 Series laser marking machines. (Widely used in various consumer products, food and beverage packing garment accessories, cloths and crafts, leather and rubber, nameplates, construction and ceramic, jeans, etc. )
5.3D Dynamic Focus Large-Scale laser marking machines. (Apply to art crafts, bamboo and wooden products, advertising decoration, clothing and leather, jewelry and architecture model, etc. )
6. On-Line laser marking machines. (Widely used in medical, chemical, electronic, tobacco, wine, food and beverage industries)
7. Laser cutting/engraving machines. (Apply for fabric, garment, embroidery, toy, handbag, model making, advertisements, decoration, electronic appliances, plastic, metal industries, etc. )
8. Two Head laser cutting machines. (Apply for fabric, garment, embroidery, toy, handbag, model making, advertisements, decoration, electronic appliances, plastic, metal industries, etc. )
9. Video Camera laser cutting machines. (Widely used in woven labels, logos and trademarks, various embroidery badges and crafts, etc. )
10. Shoes Industry Double heads laser cutting/engraving machines. (Widely used in vamp and outsole of shoe manufacturing process, also apply to the leather bag manufacturing industries. )
11. Specially applied for acrylic or MDF cutting machines. (Widely used in Acrylic and MDF board processing)
12. Movable and Exchanging Table laser cutting machines. (Apply for costume, shoes, cases and bags, computer embroidery, model making, electronic components and appliances, toys, furniture decoration, advertisements, arts and crafts, packing and printing, etc. )
13. Rotary Lifted Flat laser cutting machines. (Widely used in leather, cloth, organic glass, acrylic, rubber, plastic, wood, bamboo, ceramic industries. )
14. Auto Feeding and Unloading laser cutting machines. (Apply for garment, toy and handbag industries. )
15. Sheet metal fiber laser cutting machine. ( widely used for cutting steel, Iron, Stainless steel, Aluminum, Copper and other metal materials)
Glory Star can also manufacture the product designed by the customer' S requirement (OEM). We can arrange and negotiate everything for you: Price, transport, import duties, insurance, and taxes. All you have to do is tell us what you want.
Our Motto: Offer good quality, fair price and excellent service
We sincerely welcome our friends from all over the world.
