Dongguan Glory Star Laser Technology Co., Ltd. >> High quality Dynamic Jean CO2 Laser Marking and Engraving Machine

High quality Dynamic Jean CO2 Laser Marking and Engraving Machine

High quality Dynamic Jean CO2 Laser Marking and Engraving Machine
Price: US $ 32000-70000Set
Trade Terms: FOB,CFR,CIF
Min Order: 1Set
Pay Type: L/C,T/T,D/P,Western Union,Paypal

Product Specifications


Prod Model: GLD-100/GLD-200/GLD-350
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Working Area: 800X800mm/550X550/650X650(Optional)
Protection: Door-Open Protection (Optional)
Tube: Germany Rofin Metal Laser Tube
Pulse Frequency: 0-130kz
Max. Linear Speed: 7000mm/S
Dynamic Axial Response Time: <4ms
Min Character: 1mm
Repeat Accuracy: ±0.02mm
Average Power Consumption: ≤4.5kw
Power Voltage: AC220V 30A 50Hz(60Hz)

Product Description

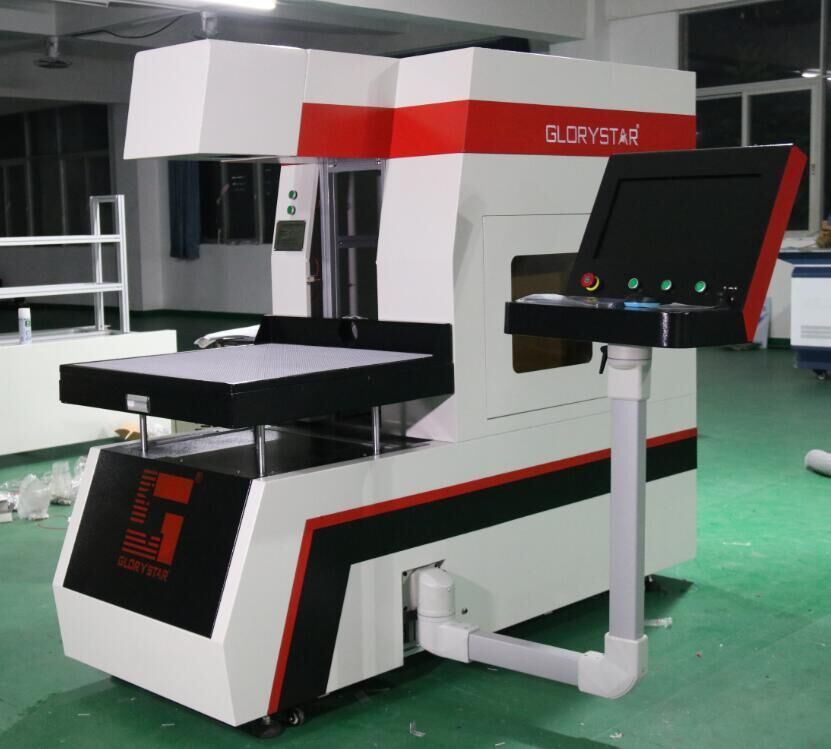

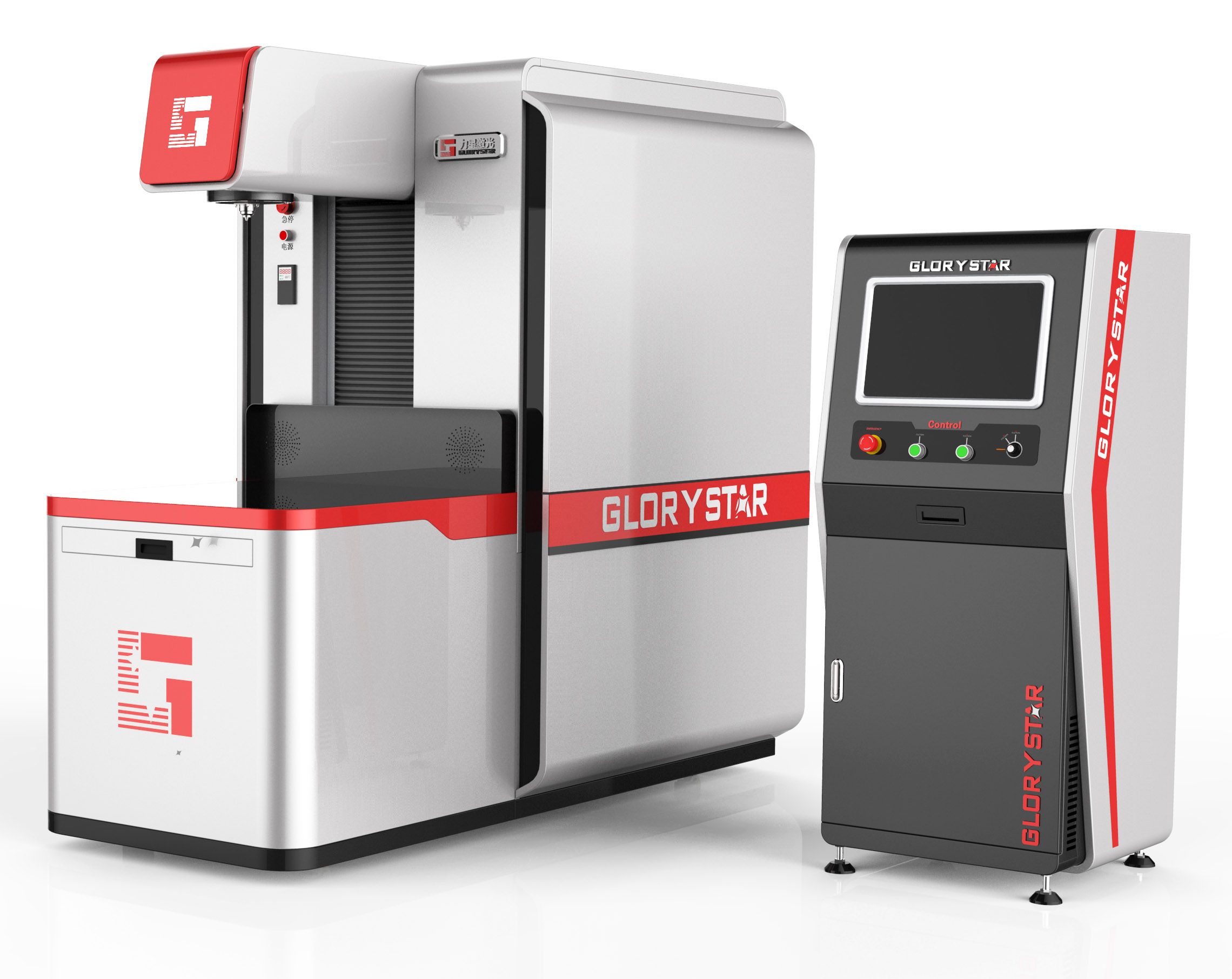

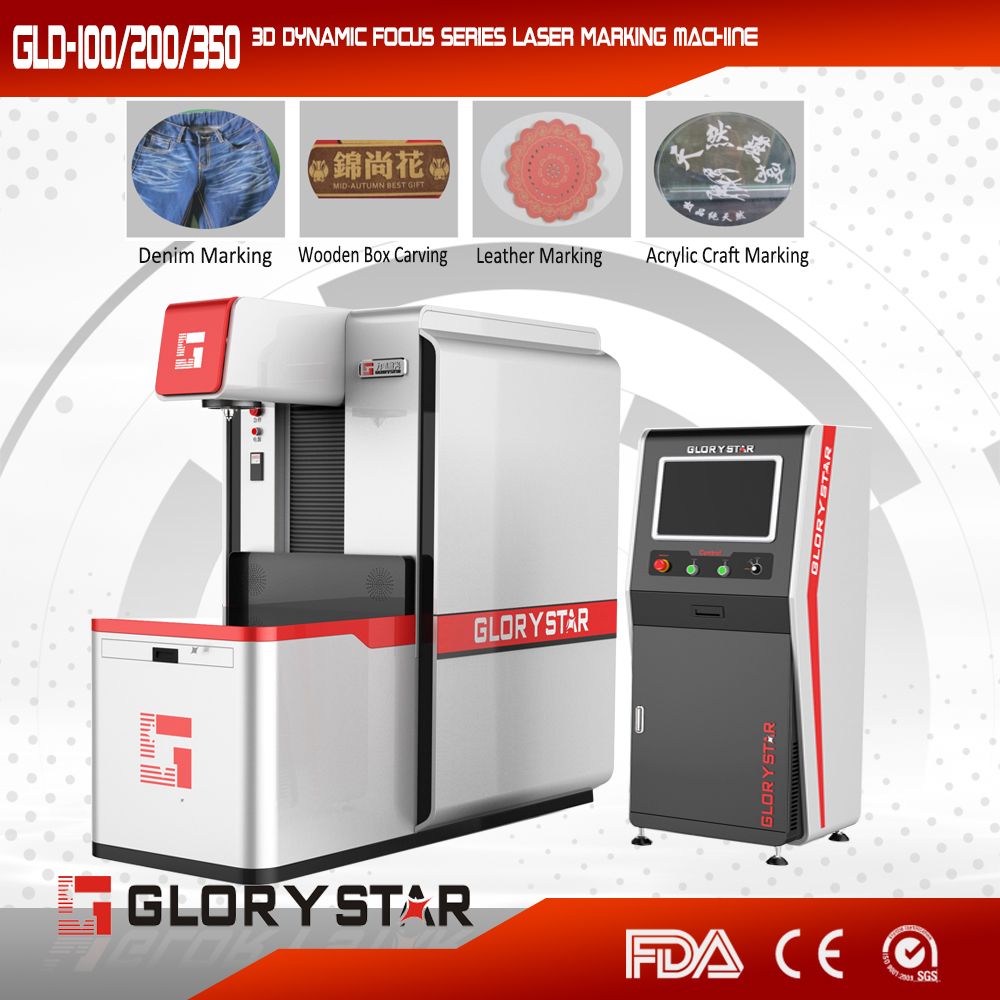

High quality Dynamic Jean CO2 Laser Marking and Engraving Machine

Product Feature
According to the demand of domestic and foreign markets, Glorystar R&D team well designs and develops thismodel for various industries. It adopts original imported RF laser modules from USA and Germany to ensurethehigh marking speed, precise beam quality, stable output performance and long lifetime. Under our professionalsoftware control circumstance, the combination of USA digit scanner head and 3D dynamic focal system can make the full advantage use of laser application.



New Design

Technical Data
ModelGLD-100/150/300
Wavelength10.64um
Average Power100W/150W/300W
Pulse Frequency0-130KHZ
Marking Area550mmx550mm/650mmX650mm/ 800mmX800mm
Max. Linear Speed7000mm/s
Dynamic Axial Response Time< 4ms
Min. Character1mm
Repeat Accuracy± 0.02mm
Cooling SystemWater-cooling
Average Power Consumption≤ 3.5KW
Power VoltageAC220V 30A 50Hz(60Hz)
Marking GraphUser-defined character, CAD data
Supported FormatBMP, JPG, PNG, TIF, PCX, TAG, IOO, GIF, PLT
Working Humidity45%-75%
Environment Temperature10 º C -30º C
GLD-100Working Area:
550mmX550mm
G. W.: 330KGPacking Dimension:
1800X1600mmX1800mm
GLD-150Working Area:
650mmX650mm
G. W.: 340KGPacking Dimension:
2000X1600mmX1800mm
GLD-275Working Area:
800mmX800mm
G. W.: 350KGPacking Dimension:
2200X1600mmX1800mm

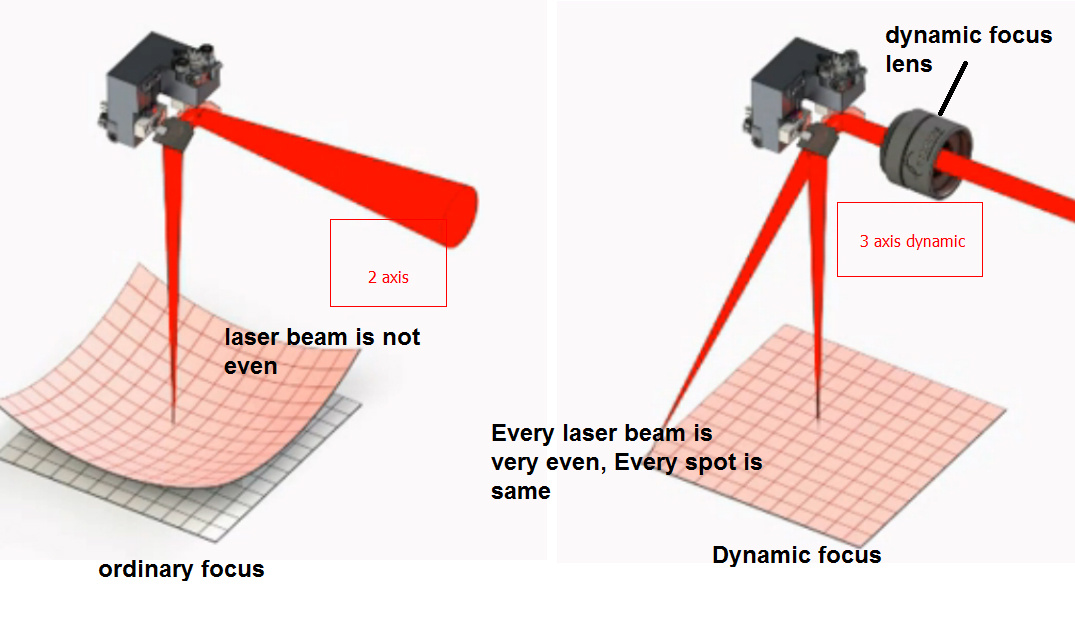

Optical Design
It adopts the whole-sealed laser optical system, free maintenance without adjustment. Therefore, it can be put into use whenever it is fixed.

Mechanical Design
The 3 axis laser scanning system have compact structure, dust-proof, easy and accurate assembly, strong anti-jamming features. It has been taken into full consideration to radiate the heat from the scanning motor and driver board in its design, which ensures the stability of system under the conditions of long-time running.


Application Industries

Footwear, apparel, arts & crafts, bamboo and wooden products, advertisement decoration, packing, architectural model and so on.

Materials
Leather, rubber, wood, bamboo, organic glass, ceramic tile, plastics, jade, crystal, fabric and other non-metal materials.

Samples Show

Jeans Marking

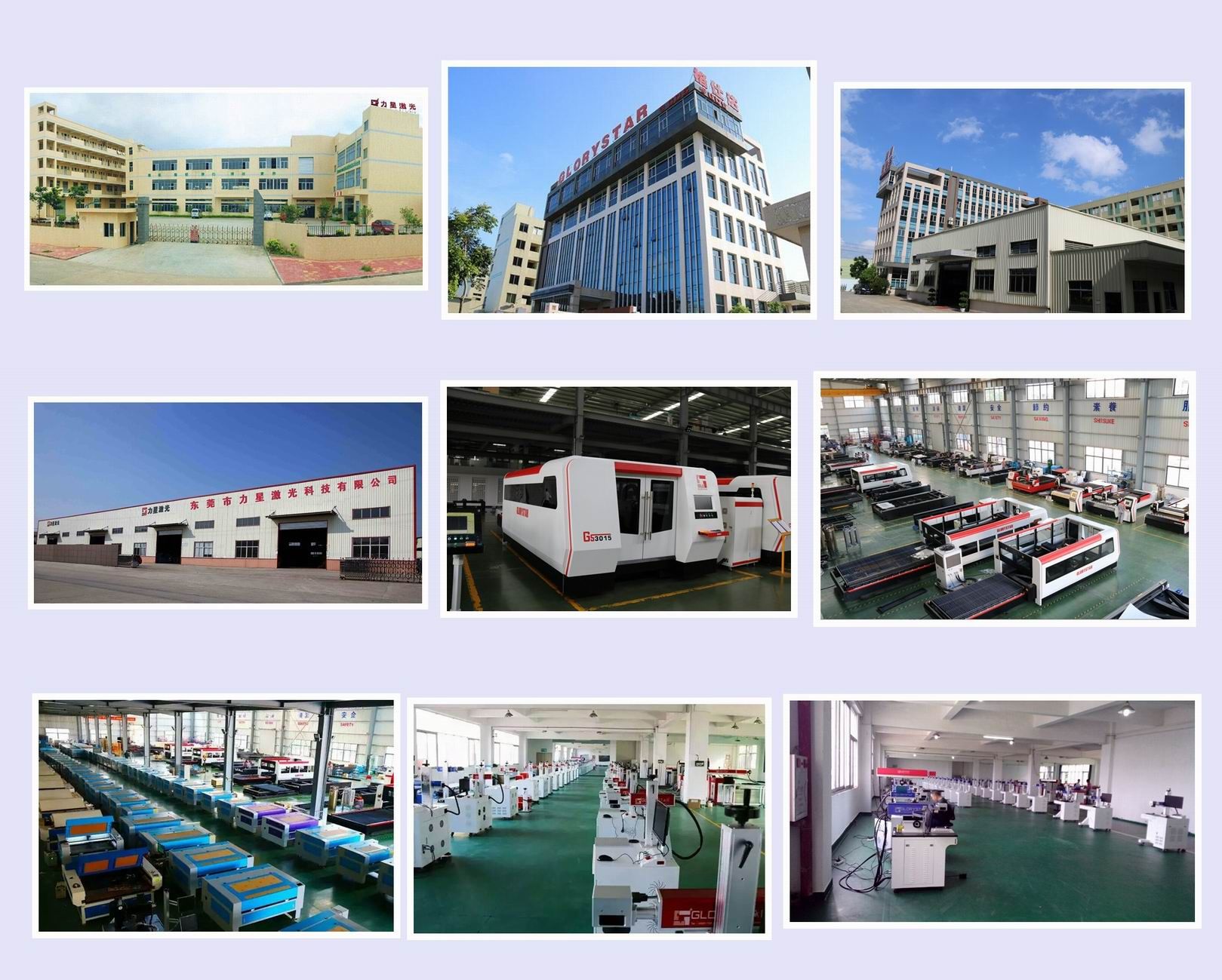

Our Factory



After-sale Sevice
<<< We offer professional after-sales installation and  guidance, after-sales online. we can be remotely controlled by teamviwer, to help customers solve the problem.

<<< For on-line not solve the problem, we will arrange technical personnel to the customer's company offer after-sales service

 << one year, optical lenses can not be maintained. Laser generator has 12months warranty, machine maintenance of life.



About Glory Star
<<<<8,000sets of products sold in more than 100 countries and regions.

Dongguan GloryStar Laser Technology Co. Ltd is a Sino-German cooperation laser machine manufacturer in China, which integrates mechanical, optical, electronic technology together. GloryStar laser Tech is one famous brand in China as well as the world. We have exported our machines to over 100 countries and supply the professional laser application for our customers. More than 10K sets laser machines are working in the market by now.

We specialize in export and service of various types of laser machinery, such as:

1. Diode Pump (Side) series laser marking machines. (Apply for electronic component, hardware, tooling, telecommunication, clocks and watches, plastic and glass parts, automobile, medical equipment, jewelry, architecture construction, packing fields. )

2. End Pump laser marking machines. (Apply for plastic products, digital products, precise machinery, jewelry, sanitary appliance, measuring and cutting tooling, clocks and watches, electronic components and applicants, hardware accessories and tools, telecommunication, automobile parts, architecture construction, packing fields, etc. )

3. Fiber laser marking machines. (Widely used in electronic components, medical equipments industries, watches and glasses, IC card industry, plastic tooling industry, mobile phone and PC keyboard, kitchen and bathroom appliance, etc. )

4. CO2 Series laser marking machines. (Widely used in various consumer products, food and beverage packing garment accessories, cloths and crafts, leather and rubber, nameplates, construction and ceramic, jeans, etc. )

5.3D Dynamic Focus Large-Scale laser marking machines. (Apply to art crafts, bamboo and wooden products, advertising decoration, clothing and leather, jewelry and architecture model, etc. )

6. On-Line laser marking machines. (Widely used in medical, chemical, electronic, tobacco, wine, food and beverage industries)

7. Laser cutting/engraving machines. (Apply for fabric, garment, embroidery, toy, handbag, model making, advertisements, decoration, electronic appliances, plastic, metal industries, etc. )

8. Two Head laser cutting machines. (Apply for fabric, garment, embroidery, toy, handbag, model making, advertisements, decoration, electronic appliances, plastic, metal industries, etc. )

9. Video Camera laser cutting machines. (Widely used in woven labels, logos and trademarks, various embroidery badges and crafts, etc. )

10. Shoes Industry Double heads laser cutting/engraving machines. (Widely used in vamp and outsole of shoe manufacturing process, also apply to the leather bag manufacturing industries. )

11. Specially applied for acrylic or MDF cutting machines. (Widely used in Acrylic and MDF board processing)

12. Movable and Exchanging Table laser cutting machines. (Apply for costume, shoes, cases and bags, computer embroidery, model making, electronic components and appliances, toys, furniture decoration, advertisements, arts and crafts, packing and printing, etc. )

13. Rotary Lifted Flat laser cutting machines. (Widely used in leather, cloth, organic glass, acrylic, rubber, plastic, wood, bamboo, ceramic industries. )

14. Auto Feeding and Unloading laser cutting machines. (Apply for garment, toy and handbag industries. )

15. Sheet metal fiber laser cutting machine. ( widely used for cutting steel, Iron, Stainless steel, Aluminum, Copper and other metal materials)

Glory Star can also manufacture the product designed by the customer' S requirement (OEM). We can arrange and negotiate everything for you: Price, transport, import duties, insurance, and taxes. All you have to do is tell us what you want.

Our Motto: Offer good quality, fair price and excellent service

We sincerely welcome our friends from all over the world.
