Product Specifications
| Prod Model: |
DEK-1390 |
| Voltage: |
220V, 50/60Hz |
| Dimension(L*W*H): |
1200X800X500mm |
| Weight: |
800kg |
| Engraving Speed: |
8000mm/Min |
| Table: |
Blade Table |
| Lathe Structure: |
Welding Steel Frame |
| Belt: |
Fulong Belt |
| Rail: |
Hiwin Guide Rail |
| Driving System: |
Stepper Motor |
Product Description

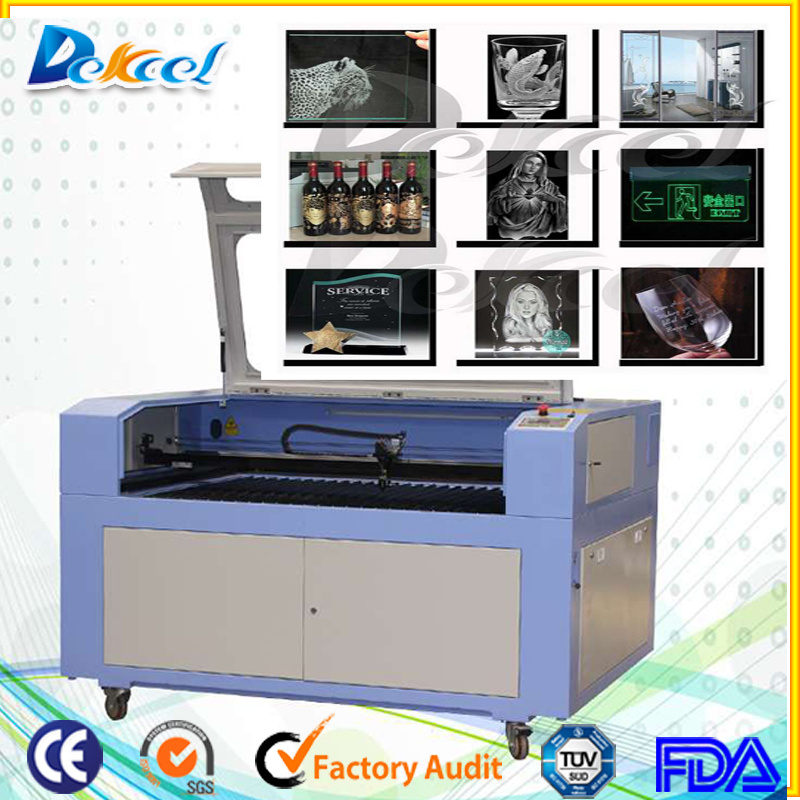

Features of cnc laser engraver for glass:
1.High speed laser cutting machine adopts the new high efficiency laser tube,the laser beam is
more stable than the traditional type,and the life time of the laser tube is very long .
2.Compared with the ordinary laser machine,the series adopts more scientific design and high
strength steel frame structure,which increase the fuselage strength more than 40% to prevent
the machine from dsitortion during long term work.
3.The humanized and mordem appearance shows Machinery consistent humanity idea,
and it also makes the operation and maintenace quite easy.
4.Advanced Ruida control system,professional motion control chip,consecutive high speed
curve cutting and the shortest path selection function improve the working efficiency a lot.
Application of Mini CNC CO2 Laser Cutting Machine:
Advertising industry, metal ,Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry
Technical Detailes for cnc engraver co2 laser for glass:
| Type | DEK-1390 |
| Engraving Area | 1300 x 900mm |
| Laser Power | 80W/100W/130w/150W |
| Laser Type | CO2 Laser Tube |
| Engraving speed | 0~1000mm/s |
| Cutting speed | 0~600mm/s |
| Resetting positioning accuracy | 0.01mm |
| Cutting depth | depend on materials |
| Minimum Shaping Character | 1.5×1.5mm |
| Power supply | 220V±10% 50HZ or 110V±10% 60HZ |
| Gross power | 1200W |
| Software supported | ArtCut, CorelDraw, PhotoShop, AutoCAD |
| Graphic format supported | PLT,DXF,BMP,JPG,GIF,PGN,TIF |
| Engraver for Curve surfaces (Yes/No) | No (rotary attachment can be added for cylinders) |
| Water Cooling: (Yes / No) | Yes |
Maximum Height of Materials to
Engrave (mm) | 280mm(Up and down by motor) |
| Laser Tube (life hours) | 10000 hours |
| Assistant Equipment | Water pump | Exhaust Fan | Aluminum alloy worktable |
| Optional Spare Parts | RF Tube | Rotary System | Cooling water system | Red Dot Pointer |
| Recommended Spare Parts / Consumables | Laser Tube and Lens |
service:
Of the training
We offer free training in our factory, welcome foreign friend come here to study the machine.
engineer oversea service is aviliable if you like, and Engineers will be trained user programming,
peration, processing and routine maintenance.
We will offer Multi-language software and operation CD, Detailed User Manual together with machine
for your reference.
Of on line service
24 hours (all days) technical support by call ,e-mail, skype or computer remote control service by engineer.
Of guarantee time
2 year guarantee for whole machine, if any problem of components, we will express you good ones. As we have strictly ex factory inspection, so there in no any problem of the machine.
