Product Specifications
| Prod Model: |
DEK-9060 |
| Cutting Area: |
900*600mm |
| Cutting Thickness: |
0-30mm |
| Cutting Speed: |
0-40000mm/Min |
| Graphic Format Supported: |
Ai, BMP, Dst, Dwg, Dxf |
| Certification: |
Ce, ISO, FDA |
| Format Of Instructions: |
Gcode, Hpgl |
| Driving System: |
Stepper Motor |
| Control Configuration: |
DSP /USB Interface |
| Belt: |
Fulong Belt |
| Rail: |
Hiwin Guide Rail |
Product Description

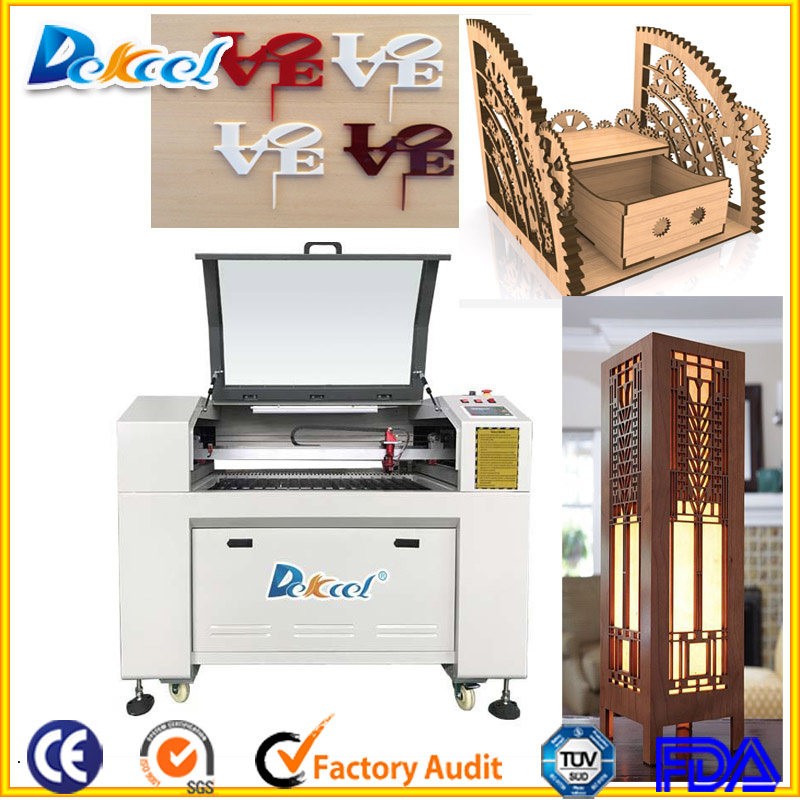

1. Machine features of 9060 cnc laser cutting engraving machine:
1) Advanced LCD Touch Screen+ USB port+ DSP Offline Control, which can not only work without computer, but also connect to U disk, USB communication.
2) LCD Control System own 128M Big Memory, which can store files in the machine for engraving and cutting, compatible with AutoCAD, CorelDraw, Photoshop and some other kinds of graph disposal software.
3) Imported high precision linear guide rail and professional optical system, dustproof and lubricate, which improve the engraving quality and prolong machine lifetime.
4) Special Front and back running through design, the unique door for the limitless engraved materials through.
5) Professional Honeycomb or blade table, which meet the needs of diversified laser procession;
6) Water Cooling System with Alarm Protection function, adopt CW-5000 Water Chiller with temperature display, which can avoid over burning, to protect the water circulation from electricity-off.
7)Imported Focus Lens and reflect mirror, Chinese Best Quality Laser Tube, 10000 hours Laser Tube and RF metal tube for your choose, makes high efficiency and steady.
8) High speed stepper subdivision driver control, numeral timing, simulation quantum control laser power, little error, repetition high precision, engrave 1×1mm little English character perfect.
9) Red Light Pointer realizes the exact position without laser.
Technical Detailes for cnc co2 laser engraving machine
| Working area | 900*600mm |
| Laser Types | Sealed CO2 Laser Tube 60W-150W |
| Engraving speed | 0-60,000mm/min(according to different materials) |
| Cutting speed | 0-10,000mm/min(according to different materials) |
| Control system | Ruida |
| Location precision | ≤0.01mm |
| Resetting positioning accuracy | 0.01mm |
| Voltage | AC 110V-220V(±)10% / 50-60Hz |
| Minimum shaping character | English 1.0 x 1.0mm Chinese 2.0*2.0mm |
| Driving system | Stepper motor |
| Cooling mode | Water-cooling and protection system |
| Compatible Software | CoreDraw, AutoCAD, PhotoShop |
| Graphic format supported | BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DWG,etc |
| Standard accessories | (01) User manual of machine(English version)
(02) User manual of software(English)
(03) USB cable
(04) Communication cable
(05) Air exhaust fan
(06)Air pump
(07) 3 reflecting mirrors (has been installed in the machine)
(08) One focus lens(has been installed in the machine )
(09) One laser tube(has been installed in the machine) |
Applicable Material of laser cutter engraver machine:
1.Applicable materials
Non-metal materials such as double color board, Plexiglas, glass, bamboo and wood, rubber, marble, granite and tiles, leather
2.Applicable industry
Billboards, artistic gifts, crystal ornaments, paper-cut, bamboo and wooden product, garment and leather, embroidery, decoration and upholster industry.
FAQ
1) This is the first time I use this kind of machine, is it easy operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.
2) If machine have any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem.we will give you 24hours service from phone and skype or go to your home for after-sale service
3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port or your factory directly, please tell us your port name or your detailed address. There will be best shipping freight and machine price send to you
.After sales service
1.1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free. Or charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.
If you are not sure which machine is suitable, please tell me the following questions:
i will recommend the most suitable machine to you.
1)what materials do you want to engrave or cut?
2)what's the max size of the materials?
Looking for agents for all over the world
Thanks for your time!
