Product Specifications
| Prod Model: |
DEK-1325 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cutting Area: |
1300*2500mm |
| Laser Tube Power: |
80W |
| Engraving Speed: |
0-40000mm/Min |
| Graphic Format Supported: |
Ai, BMP, Dst, Dwg, Dxf |
| Certification: |
Ce, ISO, FDA |
| Format Of Instructions: |
Gcode, Hpgl |
| Driving System: |
Stepper Motor |
| Control Configuration: |
DSP /USB Interface |
| Belt: |
Fulong Belt |
| Rail: |
Hiwin Guide Rail |
Product Description

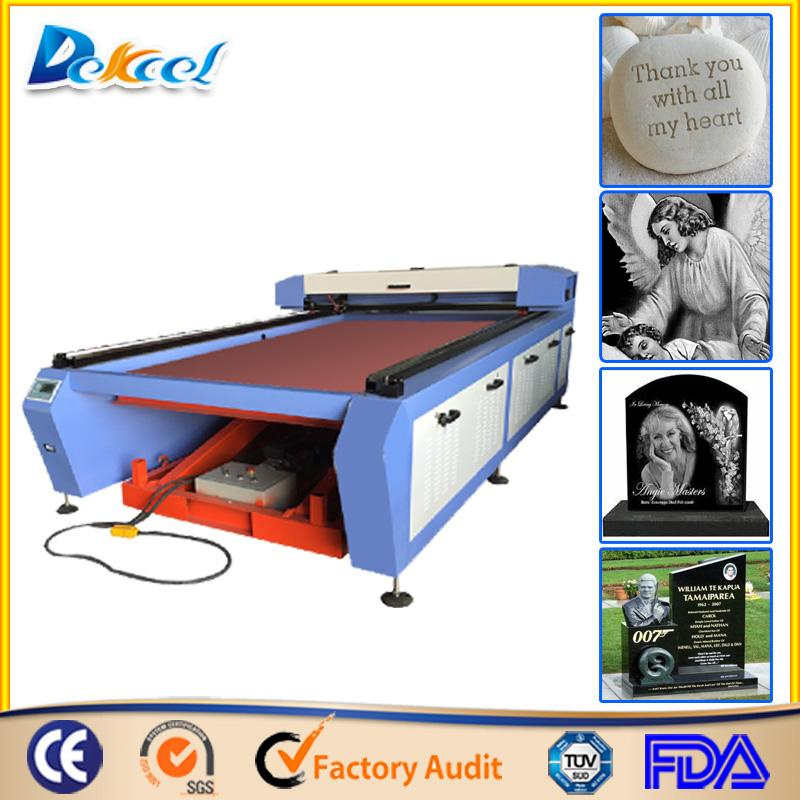

Granite Stone Laser engraver for tombstone Dek-1325
Great characteristics of laser engraver
1. High speed grainte laser engraving machine adopts the new high efficiency RECI laser tube,the laser beam is more stable than the troditional type, and the life time of the laser tube is very long.
2.Compared with the ordinary laser machine, the series adopts more scientific design and high strength steel-frame structure, which increase the fuselage strength more than 40% to prevent the machine from distortion long term work.
Laser engraver features
1).Equipped with imported dual linear guide,so machine can move stably and cut the edge smoothly
2).Adopt three-phase motor and driver, belt can move in fast cutting speed and high precision.
3).Advanced control system: Advanced DSP numerical control systm and laserge liquid crystal
display brings out much convenient operation and simpler maintenance.Special intelligent
pre-calculating system fully develops the potential of the engine and leads to high speed processing
of smoother curves and straight lines simultaneously.
4).Powerful compatibility: Internationalized directives ensure that it is compatible with CAD/CAM
software like type3/ artcam/ castmate/ proe/ UG/ artcut etc. home and abroad.
5). Off-line control system: Apply USB interface to communicate with computer under the system
of WIN98/NT2000/XP, which can instantly compete transmission. Laser engraver standard accessories
1×CO2 laser cutting machine
1×Air Pump(installed inside the machine) for Air Assist (for blowing off debris as the laser engrave or cut)
1×Air Exhaust Fan(installed inside the machine) with Tube ducts ( for extracting gases from the work area)
1×Water Chiller
1×USB Cable (connecting PC and laser)
1×DVD (Including software, User manual, Guiding videos etc.)
1×Laser Tube,
3×Reflecting Mirrors
1×Focusing Len
Technical Detailes for Laser engraver
| Total power | <400W |
| Laser power | 80W |
| Laser type | CO2 acrylic laser cutter |
| Power supply | AC 220V/110V |
| Working area | 1300*900 mm |
| Engraving depth | 0-10 mm (different material differ) |
| Cutting depth | 0-10 mm |
| Engraving speed | 0-600mm/s |
| Cutting speed | 0-600mm/s |
| Lifting platform | 0-250 mm Honeycomb/Blade Worktable |
| Locating precision | <0.01 mm |
| Min shaping character | Character: 2*2mm, Letter: 1*1mm |
| Working temperature | 5ºC-45ºC |
| Working humidity | 5%-95% |
| Resolution ratio | ≤1000dpi |
| Data transfer interface | USB 2.0 (offline) |
| System environment | Windows XP / Win 7 / Win 8 |
| Cooling | Water Cooling and protection system with chiller |
| Graphic Format Supported | The Files which CorelDraw & WinsealXP can identify |
| (BMP,JPEG,PLT,CDR,AI,) TIFF,PCX,DIB,TIF |
| Compatible software | CorelDraw,WinsealXP |
| Color separation | NO |
| Sloping engraving | NO |
| Protection | Emergency stop buttom and Stop working when water broken |

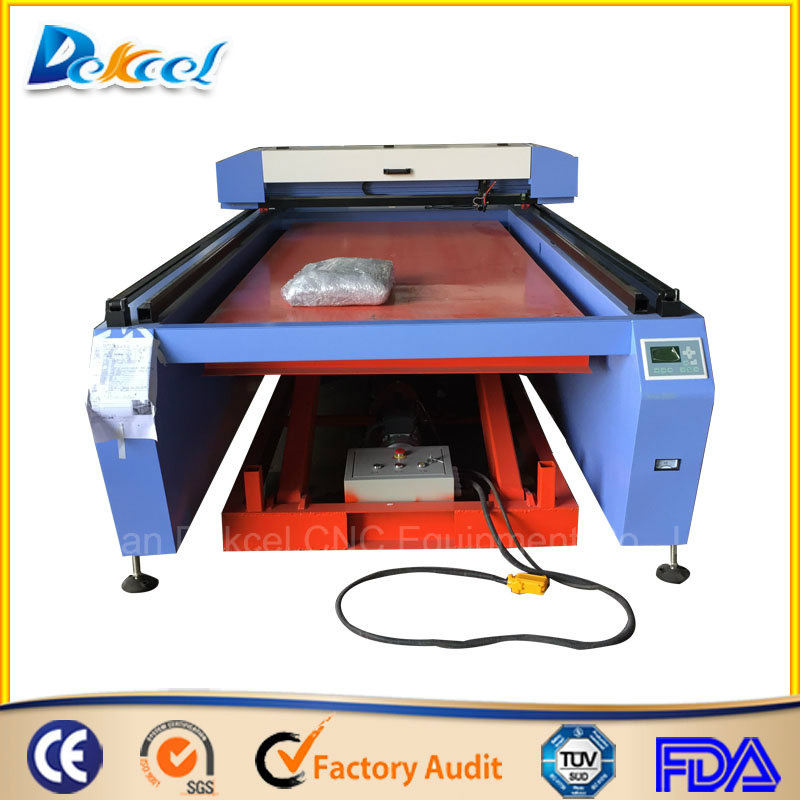

Laser engraver main parts
Laser engraver samples
FAQ
Q: Do I need two laser machines to engrave and cut separately?
A: No, the laser machines we provide are capable of both engraving and cutting. One machine alone can fulfill the two purposes.
Q: Do the laser machines need to be connected to a laptop or desktop computer to work?
A: Yes, either is ok. It supports Windows 2000, Windows XP, Win 7 and other operating systems
Q: What kind of graphic format does it support?
A: JPG, PNG, BMP, PLT, DST, DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA, PCX, JP2, JPC, PGX, RAS, PNM, SKA, RAW , etc.
Q: How to distinguish laser tubes with different powers and applications?
A: 1. Laser tube length (relatively speaking, the longer, the bigger)
2. Laser tube diameter (relatively speaking, the thicker, the bigger)
3. The bigger a laser tube power is, the deeper the machine can cut, but its light spot is bigger. So, it is better to use a machine with a low-power laser tube to engrave, such as 40W, 50W or 65W.
Q: Is it better to increase blow to improve laser processing performance?
A: For some thick materials, it works. But, when carving some other materials, you need to blow less.
Q: How long will it take to learn to operate a laser machine?
A: If you are able to use some basic graphic design software, it will only take a few hours to master the operation. You just need to do some simple tests on different processing materials to know how to set the correct speed and laser power.
Q: Is a laser machine in operation harmful to our bodies?
A: It is not harmful as long as the laser is not exposed directly to skin and eyes
.After sales service:
1.1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free. Or charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.
If you are not sure which machine is suitable, please tell me the following questions:
i will recommend the most suitable machine to you.
1)what materials do you want to engrave or cut?
2)what's the max size of the materials?
Looking for agents for all over the world
Thanks for your time!
