Product Specifications
| Prod Model: |
HZ-HSD200 |
| Perspective Window: |
1.2mm PVC Transparent |
| Wind Strength: |
Resiste 1176PA |
| Open And Close: |
0.6-1.8m/S |
| Motor Power: |
0.75kw-2.2K/50-60Hz |
| Door Curtain Material: |
French High Density Industrial Fabric |
| Drive System: |
1.German Sew 2.China Sej / Snma |
| Control System: |
1.Japan Mitsubishi 2.China Holip |
| Door Curtain Thickness: |
0.8/1.0/1.2/1.5mm |
| Opening Frequency: |
1000-1500times/Day |
| Quality Warranty: |
12 Months |
| Type: |
Rolling |
| Open Style: |
Rolling |
| Certification: |
SGS |
| Position: |
Interior |
| Surface Finishing: |
Finished |
| Material: |
Stainless Steel+PVC Fibar |
| Opening Type: |
Automatic |
| Special Function: |
Self Contol |
Product Description

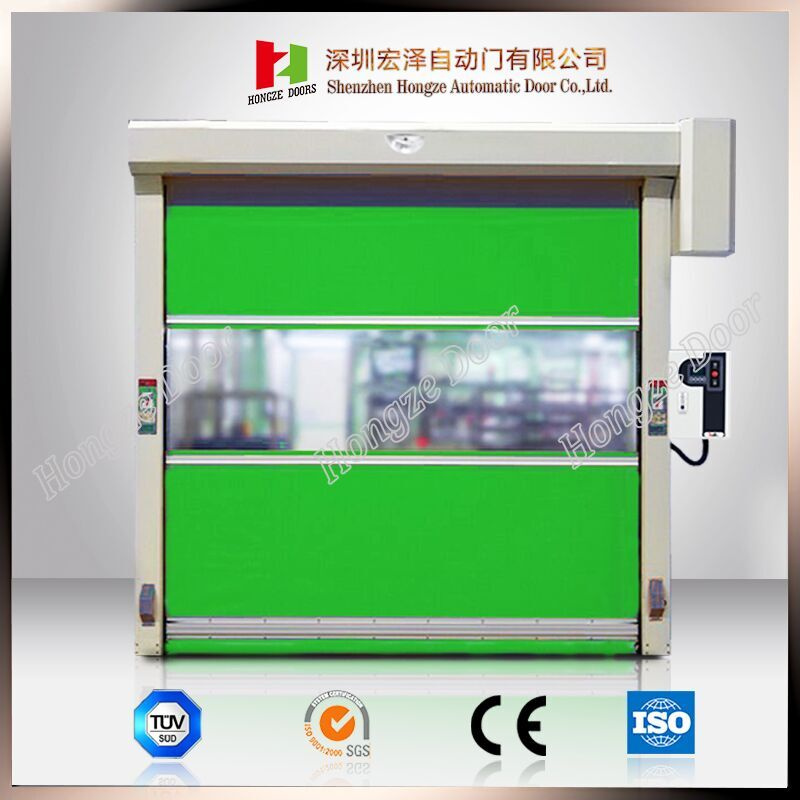

Automatic High Speed Rapid Rolling Door/Interior Roller Shutter Door(Hz-HS0013)
Good looking electric PVC high speed door with low price
Product Description
Main technical parameters| Applicable door opening | Maximum width:8000 Maximum height:8000 |
| Service life | ≥500,000times |
| Resistance to wind pressure | 160N/m² |
| Thickness of door curtain | 0.8mm |
| Opening and closing speed | 0.6-1.2m/s |
| Opening and closing frequency | 60times/h |
| Working voltage/frequency | 380V,220V/50HZ |
| Motor power | 0.275KW-1.6KW |
Materials and property of door curtain
Number | Project | Indicators |
| 1 | Thickness(mm) | 0.8 |
| 2 | Quality(g/m2) | 830-900 |
| 3 | Tensile strength(N/300mm) | 2100-2500 |
| 4 | Elongation(%) | <25 |
| 5 | Tear strength(N) | ≥280 |
| 6 | Heat resistance(ºC) | 70 |
| 7 | Cold tolerance(ºC) | 380V,220V/50HZ |
| 8 | Resistance to water pressure(mm H2O) | >2×105 |
| 9 | Abrasion resistance | 4.9N×100 |
| 10 | Mixing tolerance | 9.8N×1000 |
| 11 | Flame resistance | From 5s automatic fire extinguishing |

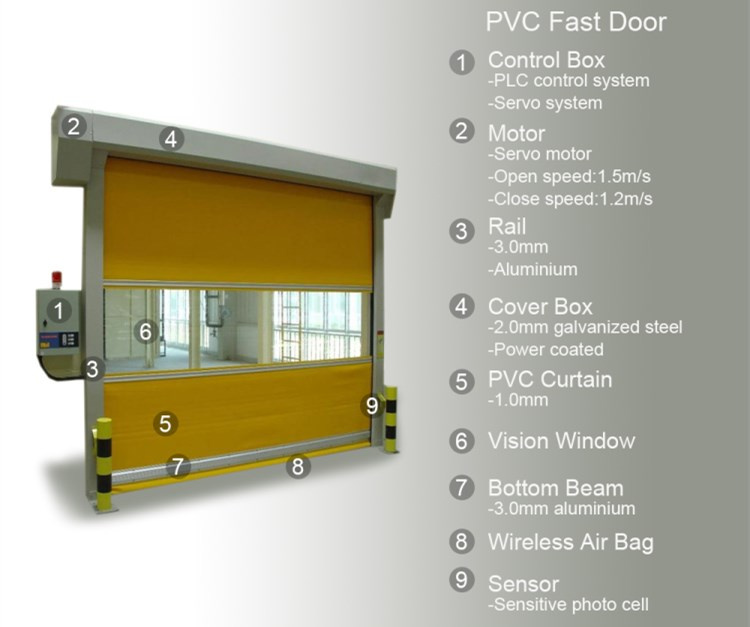

Structure and characteristics1.Rail, lower beam and windproof strip are manufactured with high-quality aluminum alloy profiles with beautiful shape.
2.Use servo control and encoder limit. The door body operates stably. The swich speed of closing and opening is fast, to be specific, less than 0.3S, and generally no noise of motor braking occurs. Upon operations of hundreds of thousands of times, the limit error is less than 2 mm.
3.Be equipped with wireless safety air bag and infrared protection system. Return quickly to fully open state in the event of people or objects when the door body is moving down. Have good safety performance.
4.Anti-collision derailing protection.
5.Geomagnetic loop or pull a rope for opening is an option in terms of the users' requirements.
Company InformationHongze Auotomatic Co.,ltd. is a high-tech company that engages in the development of world-class advanced automatic doors.
Our main products include quick rolling door, industrial accumulation door, industrial rolling door, PVC rolling door, rapid rolling
door, fire-resisting rolling door, industrial lift door, automatic induction door, automatic vertical hinged door, medical automatic
door, stainless steel automatic door, electric folding gate, crystal rolling door, electric roller shutter of various materials, and
parking lot series.
F A Q1. What's the payment details?Deposit before production, and balance before shipment.2. What's the delivery time?For common order, about 7 days only.3. What about the warranty for the doors?We provide 12 months warranty for all doors and accessories.When the product quality appear.4. Do you provide OEM Service?Yes. OEM & ODM Service is ok for us.5. What's the MOQ?We accept 1 set as sample order.6. How about the package?Plywood case or Cardboard, suitable for sea freight or air freight, as your request.
Shenzhen Hongze Automatic Door Co., Ltd. is a high-tech company that engages in the development of world-class advanced automatic doors. Our main products include quick rolling door, industrial accumulation door, industrial rolling door, PVC rolling door, rapid rolling door, fire-resisting rolling door, industrial lift door, automatic induction door, automatic vertical hinged door, medical automatic door, stainless steel automatic door, electric folding gate, crystal rolling door, electric roller shutter of various materials, and parking lot series.
Our company introduces and absorbs the state-of-the-art technologies of the automatic door industry of the world whilst accumulating rich experience in design, production and engineering installation. The overall appearance, quality, performance and service life of our products are comparable to world-famous brands, whereas our prices are much lower than those of similar imports. All these are aimed at offering our customers excellent, low-priced products in the real sense.
Hongze has been persistently offering users all-round, diversified service of wide level. Meanwhile, we have been elaborately bringing about a rich corporate culture to serve as a faithful, honest and harmonious tie among enterprise, customers and employees.
Adhering to the principle of "proceeding from details and trivial matters", we try to embody our meticulous effort in all the links and shall spare no effort in bringing about the best products and perfect service.
Over the years, we have been guided by the principle and concept of "guarantee by brand, breakthrough by technology, supported by service". In the future, we shall do our utmost to provide our customers with related engineering consultation, scheme design, technical guidance, installation and debugging, after-sales repair and other service.
