Product Specifications
| Prod Model: |
HF-FC010 |
| Command System: |
1.German Sew 2.China Sej / Snma |
| Safety Device: |
Radar Sensor, Magnetic Loop , Remote Control, |
| Perspective Window: |
1.2mm PVC Transparent |
| Standard Motor Position: |
Left or Right |
| Quantity Warranty: |
12 Months |
| Door Curtain Thickness: |
0.8/1.0/1.2/1.5mm |
| Opening Frequency: |
1000-1500times/Day |
| Control System: |
1.Japan Mitsubishi 2.China Holip |
| Motor Power: |
0.75kw-2.2K/50-60Hz |
| Drive System: |
1.German Sew 2.China Sej / Snm |
| Type: |
Rolling |
| Open Style: |
Rolling |
| Certification: |
SGS |
| Position: |
Interior |
| Surface Finishing: |
Finished |
| Material: |
Stainless Steel+PVC Fibar |
| Opening Type: |
Radar |
| Special Function: |
Self Control |
| Color: |
Red/Blue/Yellow/Green/Gray/Orange/Transparent |
Product Description

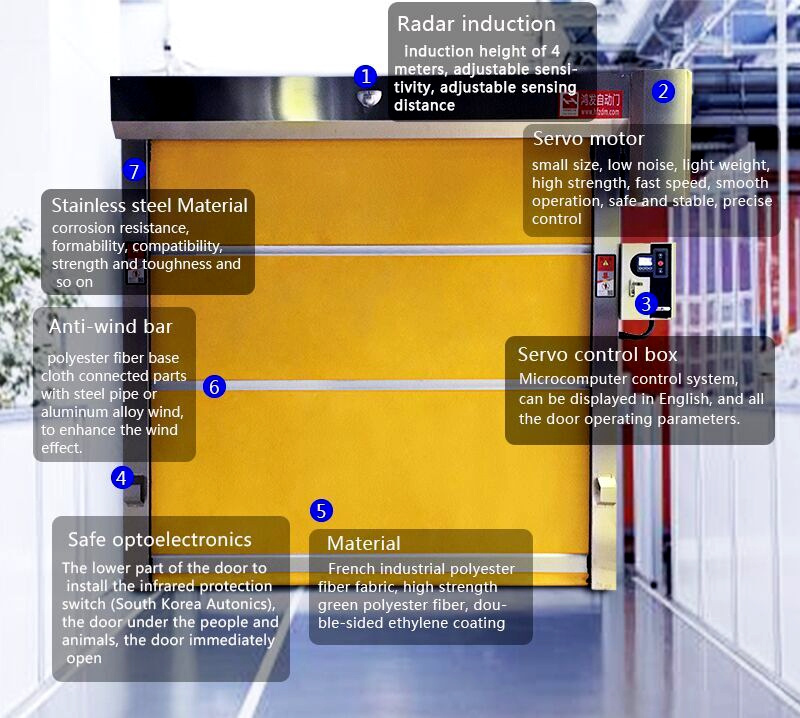

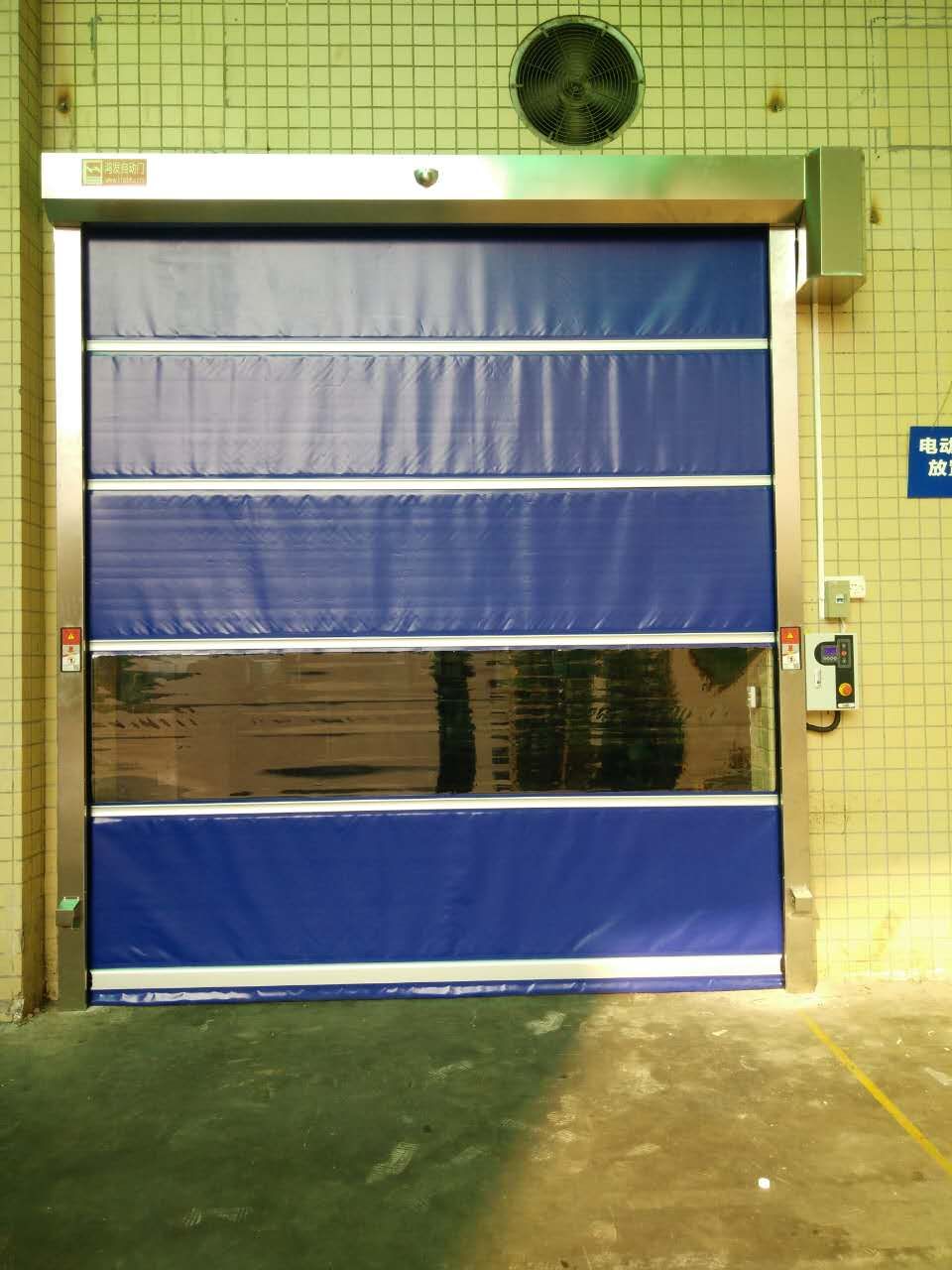

Automatic High Speed PVC Door
Product Details
Rapid PVC door | Grey,Yellow grid,Purple,Green,Light green,Black,Perforated Yellow grid,White,Blue,White grid,Sky Blue,Yellow,Orange,Red
Color curtain:0.8mmthickness. Transparent curtain:1.2mm.
Function:insect prevention |
| Reinforce girder | Aluminum alloy 45mm width.
Function:reinforce the curtain and wind resistant |
| Bottom bar | Aluminum alloy 95mm width
Function:reinforce the crutain to keep the door opening without a hitch |
Radar sensor | The place on the cover box. Can detect 3 meters area!
Function: detect the moving thing and open the door.
For the place which has more people through. |
Photocell sensor | Function:It's stop the door when the door is closing and someone through the door. |
Drive system | High speed door motor: Germany brand(SEW)and Our own brand Hofic.
Germany SEW motor(380V/220V 50Hz 0.75KW,1.5KW,2.2kw.) Our own brand Hofic(380V/220V 50Hz 0.75KW,1.5KW,2.2KW) |
| Control system | Control box:Include control system+PLC+transducer+encoder+airbag system.
Brand:Japan Mitsubishi and Our own Hofic
Function: all the control system are inside in it. |
| Cover box | Material: Stainless steel201#or304#
To avoid corrosive thing corrode the roll and dustproof |
| Opening way: | Radar sensor+push button for People through
Magnetic loop+push button for forklift through |
Main technical parameters| Applicable door opening | Maximum width:8000 Maximum height:8000 |
| Service life | ≥500,000times |
| Resistance to wind pressure | 160N/m² |
| Thickness of door curtain | 0.8mm |
| Opening and closing speed | 0.6-1.2m/s |
| Opening and closing frequency | 60times/h |
| Working voltage/frequency | 380V,220V/50HZ |
| Motor power | 0.275KW-1.6KW |
Material Selection
1. Frame: 2MM thicknesses cold-roll Stainless steel.
2. Motor: Germany SEW brake motor (outer), power 0.75KW, power supply 220V.
3. Control system: Imported Japan Mitsubishi converter and PLC to control of electric box (150%1HZ)
4. Opening & closing speed: 0.6-1.5m/s (adjustable).
5. Safety Device: Korea Photocell Sensor, emergency stopping reaction when sensing obstacles.
6. Curtain: France high-density polyester fiber and the surface coating processing, thickness 0.8MM, variety colors can be chose: Red, yellow, blue, green, orange, gray, white, transparent, etc. Tensile strength: 4000/3500N/5cm, tear strength 600/600N. Fire-proofing level: German standard DIN75200 Usage temperature: -30 ° C +70 ° C.
7. Wind resistant: The Aluminium alloy Reinforce Girder to increase wind resistant effect.
8. Curtain replacement function: Aluminium alloy Reinforce Girder is loaded between 2 pieces Curtain, can be replaced easily if any curtain broken, save your cost.
9. Transparent window: 1.2MM thickness transparent PVC window, size and location is up to your request, more safer.
10. Seal: Seal brush are Installed inside the guides, and the special bottom design, to fit any uneven ground.
11. Cotrolling way: Push button + radar sensor, very convenient.
12. Limiting Switch: Mechanical limiting switch, easily and exactly.
13. Emergency STOP: With emergency stop button on control panel, can stop easily by
Hand once disconnect or accident
14 Fault recovery function: All Hongfa's production is with fault recovery function, system will self-recovery after power cut off.
