Good Laser Spot Support Plt, Ai, BMP, Dst, Dsb, Dxf Sealed Glass Tube Type 40-50watt CO2 Laser Engraver

Name: Good Laser Spot Support Plt, Ai, BMP, Dst, Dsb, Dxf Sealed Glass Tube Type 40-50watt CO2 Laser Engraver
Brand: china-crystals.com
SKU: 732814772
Availability: InStock
Rating: 4.9 (95 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	3050/50W CO2 Laser engraver
Laser Power:	40-50W
Engraving Area:	300X500mm
DSP Control:	Yes
128m Internal Memory:	Yes
U Disk File Reading:	Yes
Delivery Time:	5-7 Working Days for 10 Sets
Delivery Method:	Air or Sea Shipping
Warranty:	2 Year
Graphic Form:	Plt,Ai,BMP,Dst,Dsb,Dxf
Software:	Autocad, Coreldram CAD,Cam

Product Description

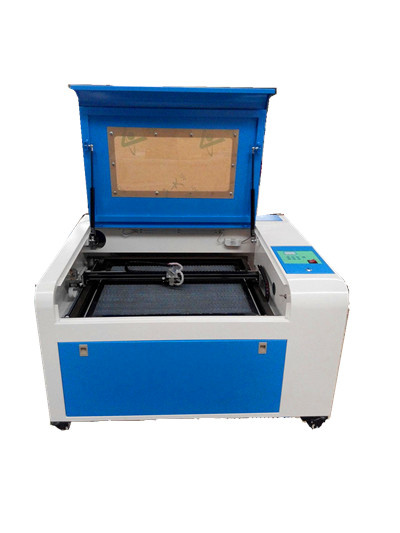

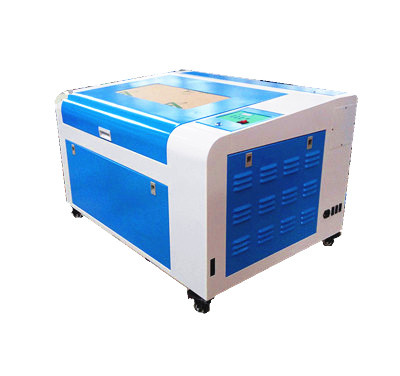

LC3050B CO2 Laser Engraving Machine

Features

1. 3.5 inch Color display screen makes operation easy and friendly man-machine interface. It has laser cutting head movement control, output laser power control,engraving speed control, press key then engraving function, engraving border preview and U disk file reading functions.

2. It adopts DSP high speed processor which supports USDB 2.0 interface and U flash memory disk read and write file. It is good for mass engraving or cutting.

3.It has internal memory makes it can separate from PC and independently set parameters.

4. It has stable high speed cutting and soft velocity variations performance which realizes no sawtooth shape during high speed cutting.

5. Network management makes it communicate with PC easy, security and relible.

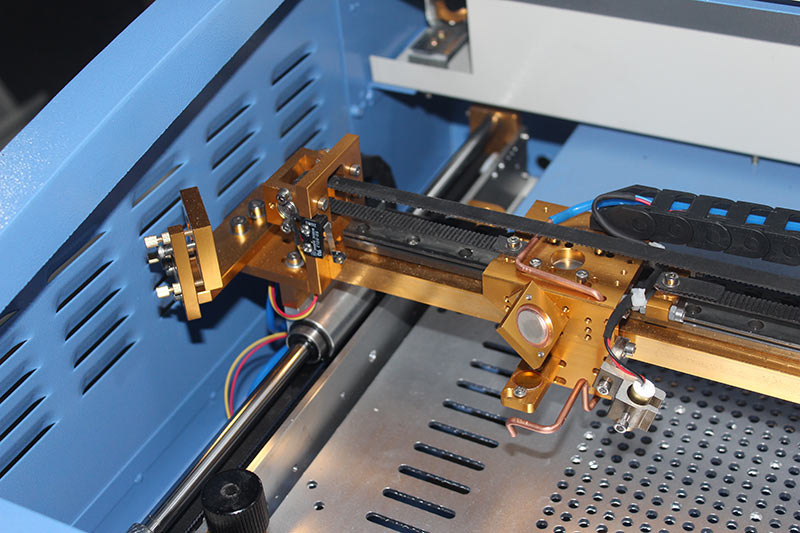

6. It has auto lifting platform which is good for different material engraving. The upgrade industrial CO2 laser cutting head has laser adjustment screw. It can get more accuracy laser optics path and engraving effect.

7. It also has automatic blowing, auto focus, pedal switch and security protection function. Also soft/hard coordinate limit protection is applied.

8. It has power off continued carving, power failure recovery, processing time prediction, intelligent typesetting and cost budget function.

9. It supports two laser control function. Each laser power can be adjusted individually. Also two laser head reciprocal cutting is applied at this machine.

10.Small circle cutting speed can be flexibly set and improve small circle cutting effect.

11.Hierarchy data output function is applied. Output power, output speed,laser mode(engraving,cutting or slope engraving at tach hierarchy and these data can be saved automatically.

12. Real-time status or track of engraving or cutting and lock display function are applied on this machine.

13. Gallery has 2000 documents, laser anti-counterfeit fingerprints and thousands of fronts.

Specification

1.Laser power:40/50W

2.Voltage:110/220V,50/60Hz

3.Laser power supply:MYJG-40/50 CO2 power supply

4.Engraving mainboard: DSP digital control panel. It supports AutoCAD, CoreLDRAM CAD,CAM and other graphics processing software.It supports PLT,AI,BMP,DST,DSB,DXF,etc.

5.Weight: 75Kg

6.Machine size:120x750x850mm

7.Max engraving size:300x500mm

8.Platform lifting range:300mm, Rotary fixture is optional.

9.Max engraving speed:800m/min,0-60000mm/s

10.Engraving accuracy: 0.8x0.8mm,data,English character

11.Resolution:1000DPI

12. Repeatability:0.01mm

Application materials

Apply on jade,MDF,metal,paper,leather,plastic,rubber,crystal and other non metal material.

Welcome to Jinan Ruby Laser Technology Co., Ltd(Short for Rubylasertech). Seven years ago, it once worked as a premier provider to develop CO2 power supply, YAG pulsed or CW power supply for laser engraving or cutting machine. From then on the company devotes its time and energy to various laser and optics solutions to machine factory in China and other countries. Up to now, it has rich experience to offer high quality products and service to factories or machine users.

Owing to strong demand of laser processing around the word recently, it starts to design, manufacture and sell its own brand laser machine. Product range mainly is small and medium-sized CO2 or fiber marking machine. As skilled laser integrator, Rubylasertech uses high quality laser spares(Eg, fiber laser, scanning galvanometer, motor, laser cutting control system) to build machine and make sure it has excellent cutting performance and good user experience. Some spares are imported from Germany, USA and Japan.

Besides standard configuration, the company can also offer special configuration machine on client demand. Design flexibility is our biggest feature. With advanced technology, qualified products and excellent after sales service, it is Rubylasertech's wish to let worldwide client enjoy convenience and delight brought by its product.
