Product Specifications
| Prod Model: |
GLC-1290T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Automation: |
Automatic |
| Type For Cutting Machine: |
Laser Cutting Machine |
| Type For Fold-Bending Machine: |
CNC Fold-Bend Machine |
| Type: |
Laser Cutting Engraving Machine |
| Laser Power: |
150W |
| Working Area: |
1.2m*0.9m |
| Engraving Area: |
1.2m*0.9m |
Product Description
Glorystar 60-150W Acrylic Wood Stencil Laser Cutting MachineProduct Features:CO2 Laser cutting engraving machines series are very popular in the market around the world. They have high speed, high cutting accuracy and high stability. The quality and price ratio is very high.
This series laser cutting machines imported originally division stepping motor and driver from USA. Original straight-line-guiding-track from Japan. High speed USB 2.0port, LCD and silicon panel, water-cooling system, domestic-made glass CO2 laser tube, sealed laser beam by use of the imported Lens and mirrors, ensure high cutting speed and long life time of laser tube.

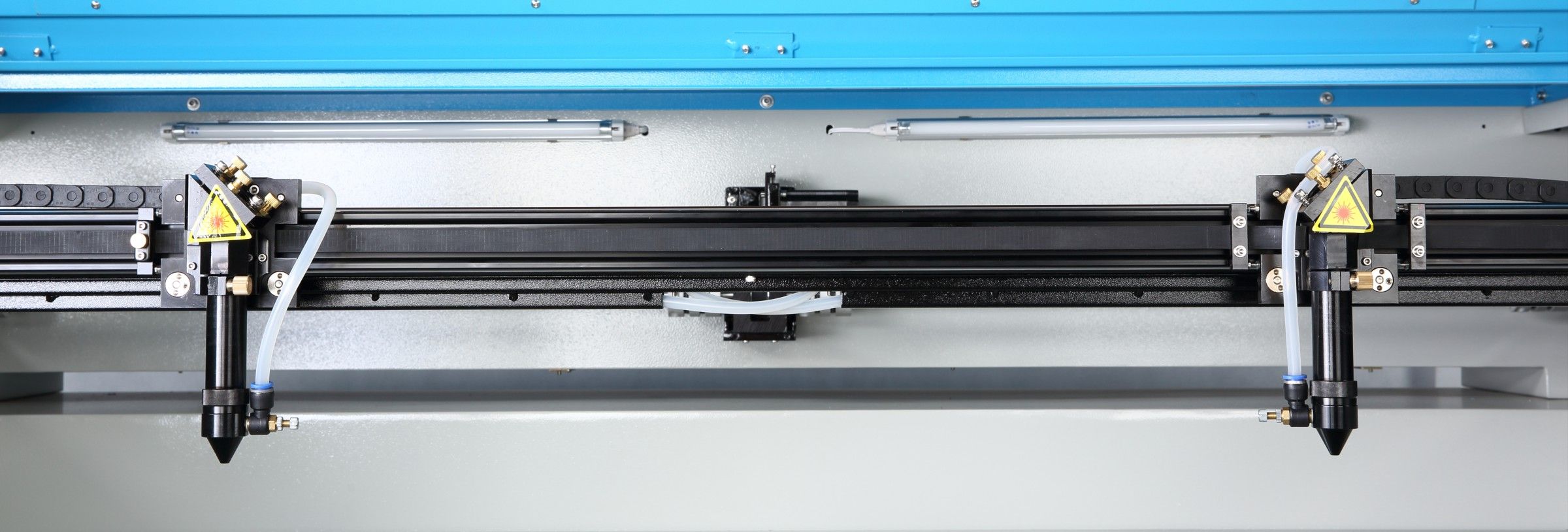

Double Laser Heads
Applications:Engraving&cutting of farbric and leather in garment, embroidery, toy, handbag, glove precisioncuting of decoration board and non-metal board, like Acrilic and medium-density board in ads, upholstery, electrical appliance and plastic industry, Cardboard box industry, rubber pritting plate engraving. Ultra-thick material surface carving.
Applicable Materials:Wood, paper, leather, cloth, organicglass, resin, acrylic, wollens, plastic, rubber, ceramic tile, crystal, bowlder, bamboo and other non-metal materials.
Sample Show

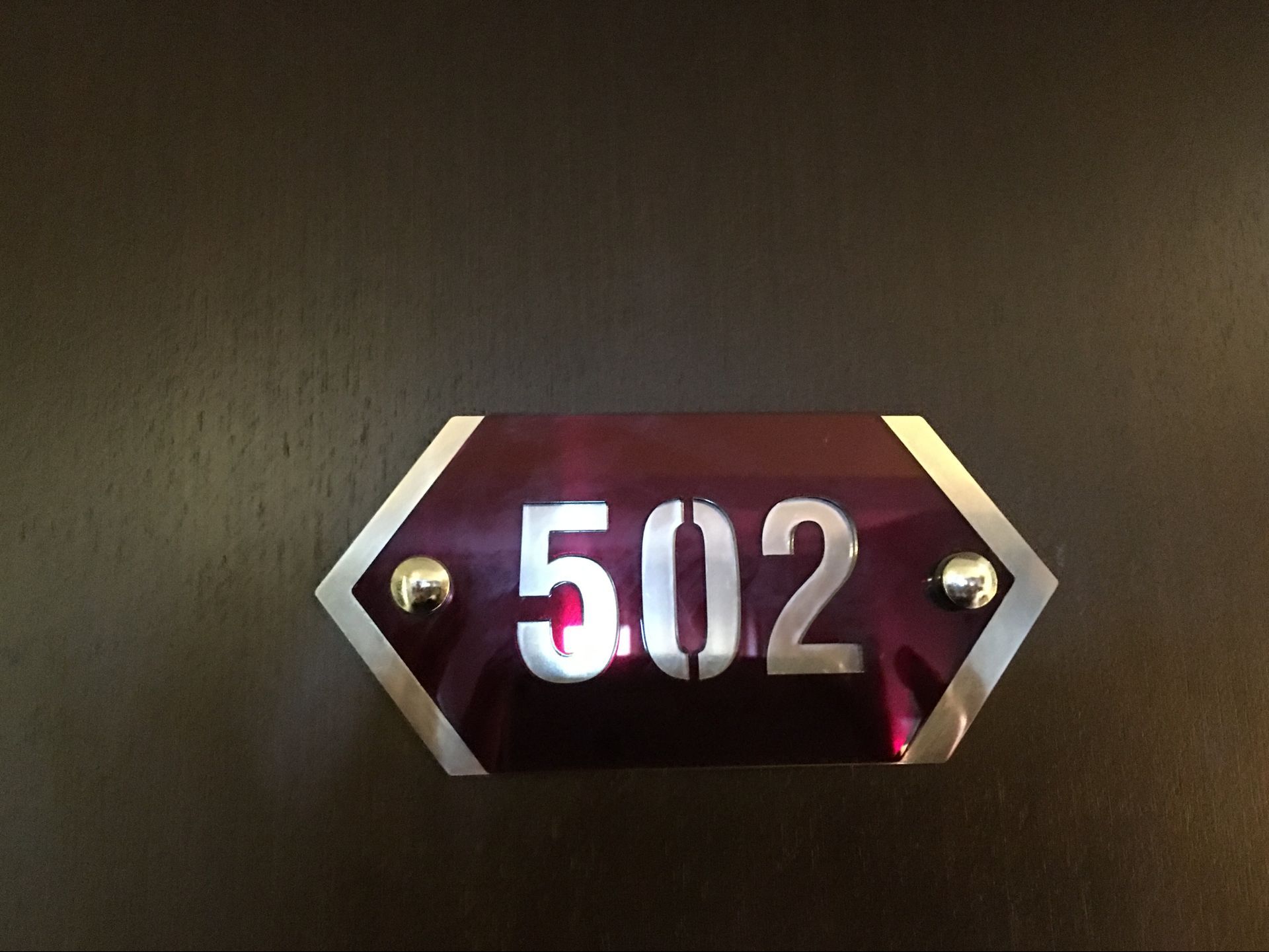

Acrylic cutting for room card

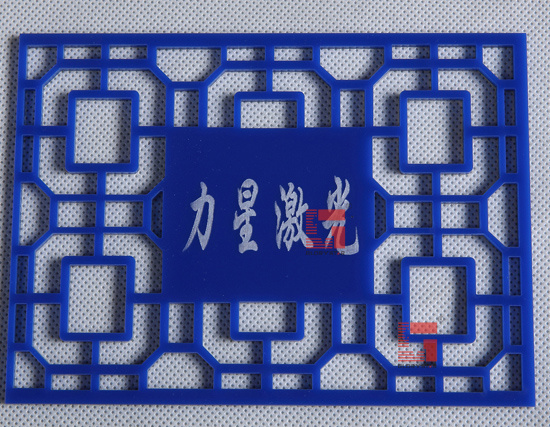

Acrylic cutting sample

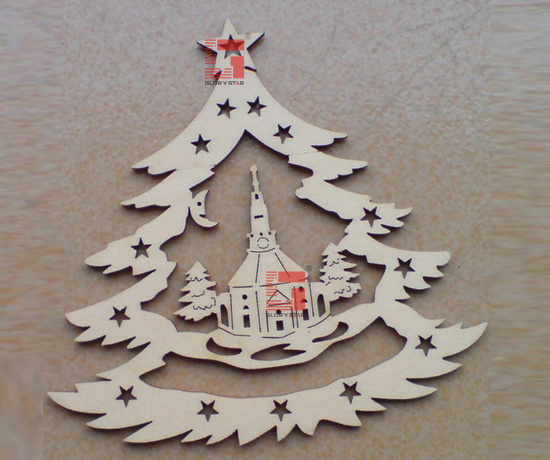

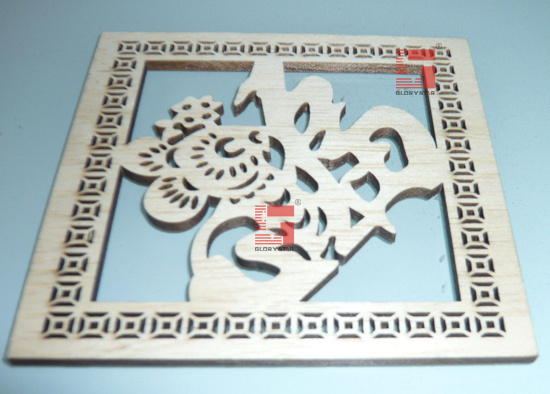

Wood Crafts Cutting Sample
Technical Data| Model | GLC-1290T |
| Laser type | Sealed Glass CO2 Laser Tube |
| Laser power | 60W / 70W / 80W / 100W / 130W / 150W |
| Engraving area | 1.2m*0.9m |
| Engraving speed | 0-64m/min |
| Cutting spees | 0-36m/min |
| Repeating lacating | ± 0.05mm |
| Moving system | CNC control system |
| Cooling mode | Water-cooling and protection system |
| Whole power | ≤ 1250w |
| Working voltage | 220V± 10% 50Hz(60Hz) |
| Operating temperature | 0~45º C |
| Prerating humidity | 5%-95% |
| Controlling sofeware | Glory star laser software |
| Graphic format supported | CAD BMP, JPG, PNG, TIF, PCX, TAG, IOO, GIF, PLT |
| Gross weight | 520KG |
The principle of laser cuttingLaser cutting is a processing of thermal, the horizontal laser beam which is emitted from laser tube is changed to vertical laser beam through 45° Reflecting mirrors, then through the focus lens, the laser beam can be focused on a extremely small diameter for high precision, its temperature can reach 10000° C or higher, fine cuts are possible with a minimum cut width of up to 15 µ M (0.0006 in). In addition, the heat-affected zone along the cut is very small (up to 2µ M). This means that deformations of the parts to be processed can be avoided.
The high energy depth in the focus point of the laser beam causes the material to melt and evaporate. If the work piece or laser beam is now moved, a cut is created. The smallest possible cut width is dependent on both the beam characteristics and the material and material strength. When cutting fine contours, the precision and dynamics of the cutting machine are of extreme importance.
With Glorystar CO2 laser cutting machines, below materials can be cut:
Cloth, fabric,
Leather, PU artificial leather,
Acrylic sheet, PVC, rubber
Wooden plate and bamboo plate
Paper, carboard
The application of Glorystar laser cutting machines as below:
Clothes, Garment industry
Shoes and bags industry
Advertizing industry
Handicrafts and construction industries
Gifts and packaging industries
If you would like to have your samples processed in Glorystar laser Company, we would be pleased to do for you.
If you have questions on applications or problems, please contact us, we would be pleased to help you.
