Product Specifications
| Prod Model: |
DEK-9060 |
| Power(W): |
2.2kw |
| Voltage: |
380V, 50/60Hz |
| Dimension(L*W*H): |
700*1000*150mm |
| Weight: |
1600kg |
| Engraving Speed: |
12000mm/Min |
| Spindle: |
2.2kw Water Cooling Spindle |
| Software: |
Type3, Artcut, Artcam, Ucancam |
| Table: |
T-Slot or Vacuum Working Table |
| Control System: |
DSP |
| Lathe Structure: |
Welding Steel Frame |
| Spindle Layout: |
Vertical |
| Spindle Number: |
Single-Spindle |
| Feed Mode: |
Mechanical |
| Controlling Mode: |
CNC |
| Certification: |
ISO |
Product Description

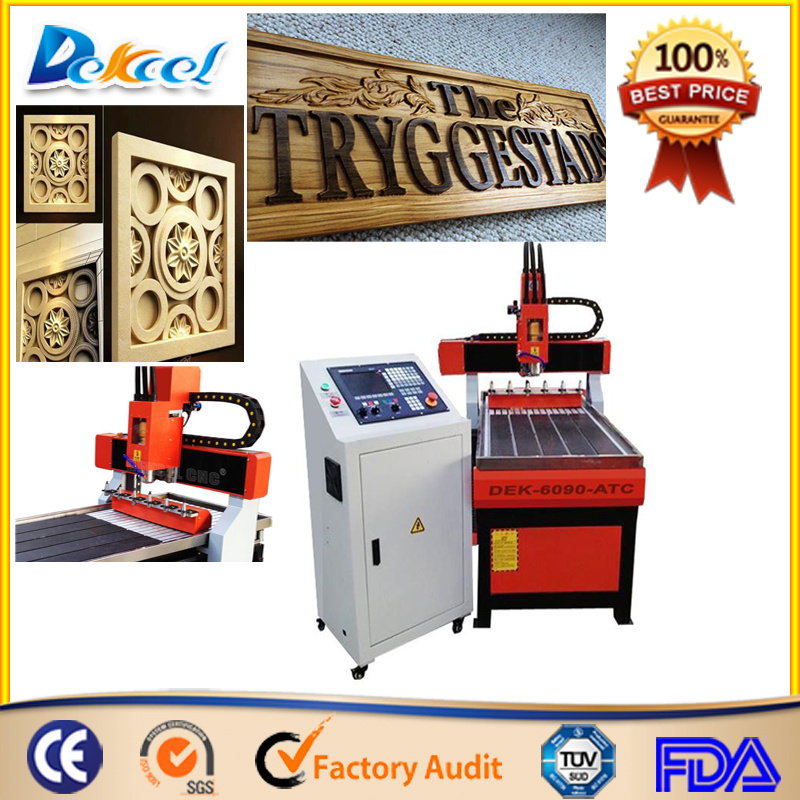

FEATURES OF DEK-0609 hobby cnc router systems
1. X, Y axies Transmission: Helical tooth rack and pinion, faster speed than straight tooth with higher accuracy.
2. The Machine adopts seamless welded steel structure and performance is strong, not deformed.
3. Chinese DSP: Introduction, convenient, easy to learn. The user can quickly use the
Equipment, strong independence.
4. The machine system has the functions of continuing carving after power failing and breakpoint.
5. Y axis adopts dual drivers design, dual drive power, making sure the process precision of the workpiece.
6. The machine adopts all good components and parts, long service lifetime.
7. Guide rail and transmission part from Taiwan, top quality.
8. Workpiece clamps fixture, vacuum adsorption optional.
Application of 3d cnc router for sale
1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2. Advertising industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word aking, blaster molding, and other advertising materials derivatives making.
3. Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4. Relief sculpture and 3D engraving
Technical Parameter of wood cnc router systems
| Number | Description | parameter |
| 1 | XYZ Working area | 600*900*100MM |
| 2 | Table Size | 710*1100MM |
| 3 | Repeatability | ±0.05MM |
| 4 | X Drive System | Rack and pinion drive |
| 5 | Y Drive System | Rack and pinion drive |
| 6 | Z Drive System | Ball Screw |
| 7 | Max Consume Power | 5kw |
| 8 | Max Rapid Traverse | 0-6000mm/min |
| 9 | Max Working Speed | 0-3000mm/min |
| 10 | Spindle Power | 2.2kw |
| 11 | Spindle Speed | 0-24000rpm |
| 12 | 3-axis Control Motor | stepper motor |
| 13 | Working Voltage | 3p380 |
| 14 | Supported Command Code | G code |
| 15 | Operating System | DSP or Nc Studio |
| 16 | Software | Type3 or ucancam or artcam |
| 17 | Packing Size | 1380*1080*950mm |
| 18 | Net Weight | 140kgs |
| 19 | Gross Weight | 250kgs
|
0609 cnc woodworking router service:
Of the training
We offer free training in our factory, welcome foreign friend come here to study the machine.
engineer oversea service is aviliable if you like, and Engineers will be trained user programming,
peration, processing and routine maintenance.
We will offer Multi-language software and operation CD, Detailed User Manual together with machine
for your reference.
Of on line service
24 hours (all days) technical support by call ,e-mail, skype or computer remote control service by engineer.
Of guarantee time
2 year guarantee for whole machine, if any problem of components, we will express you good ones. As we
have strictly ex factory inspection, so there in no any problem of the machine.
lifetime maintenance, charge the appropriate fee and the cost of replacement parts
