Fully Automatic Soft Handle Bag Making Machine (XY-1000ZD)
| Price: |
US $ 30000-38000/Set |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
XY-800/1000ZD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
One Year |
| Machine Color: |
As Customers Requirements |
| Switches: |
Schneider |
| Inverter: |
Taiwan |
| Photoelectric Tracking: |
Taiwan |
| Bag Length: |
250-850mm |
| Computer: |
LCD Screen |
| PLC: |
Made in China |
| Temperature Controller: |
Made in China |
| Cylinder: |
Airtac |
| Machine Type: |
Bag Forming Machine |
| Computerized: |
Computerized |
| Type: |
Plastic Bag Making Machine |
| Voltage: |
220V/380V |
Product Description

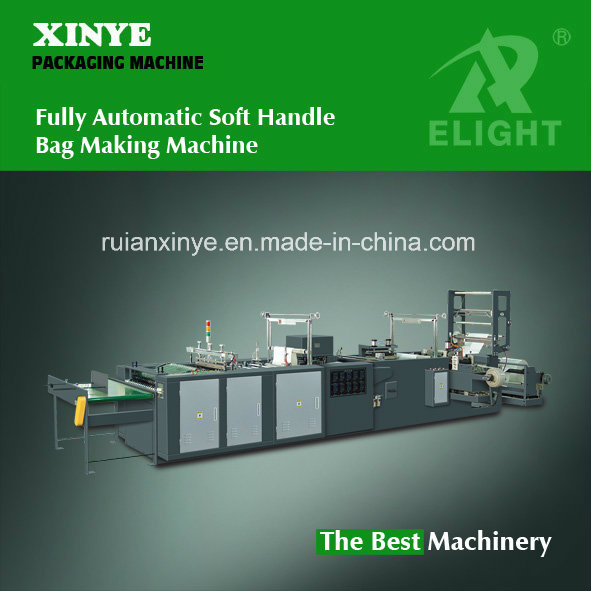

Full Automtic Soft Loop Bag Making Machine(XY-1000ZD)
Use:This fully automatic soft handle plastic bag making machine is researched and manufactured by our company on the basis of integration of lots of advantages of others, and the feedback of the home and overseas market. It integrates the machine/light/electricity/gas into a system, and it is a multi-functional automatic bag maker with high speed. It is applicable to produce all sort of costume bag/data bag/shoe bag, and so on.Charteristics:The machine is applicable to high/low polyethylene plastic film.Electrical control adopts CRT real-time display system, system, the needed parameter can be set up according to different products.All the temperature control systems adopt electronic liquid crystal digital displayer Both portable rings can seal at one time, and the seal is excellent.The machine possesses the automation alarm functions of color mark losing. temperature exceeding limit. counting down and the deliver of finished products.Bag delivery adopts servo motor special control system, the main machine is controlled by soft start-up transducer, tranquilization in course..All the four-layer film of the machine has been warm-up before side-sealing, which make the seal quite fast.All the pneumatic component and electrons adopt famous mark at home or abroad. Main Technical Variables:| Model | XY-800ZD | XY1000ZD |
| Bag Size | Width | 250-600mm | 250-650mm |
| | Length | 250-600mm | 250-850mm |
| Production speed (cycle/min) | Patch 60,String Draw 70, Carry 65 |
| Thickness of film | 0.045-0.09mm | 0.045-0.09mm |
| Total Power | 8KW | 10.5KW |
| Weight of Machine | 3000kg | 4200kg |
| Overall Dimensions(L*W*H)mm | 8600X2800X1950 | 8600X3100X1950 |
Note:These are our standard machine, more wide also canbe customized.
Every smart business as you would understand, the machine with different specification, the quotation would be wide different.

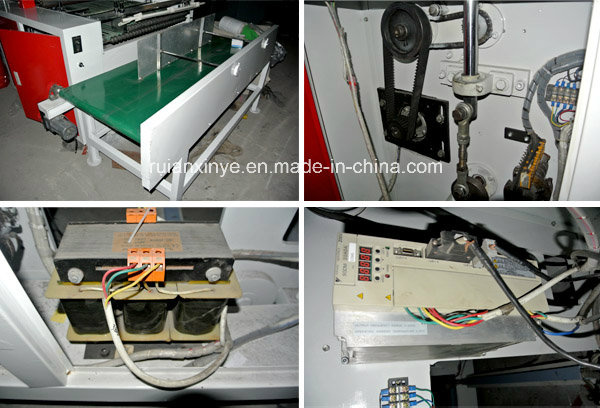

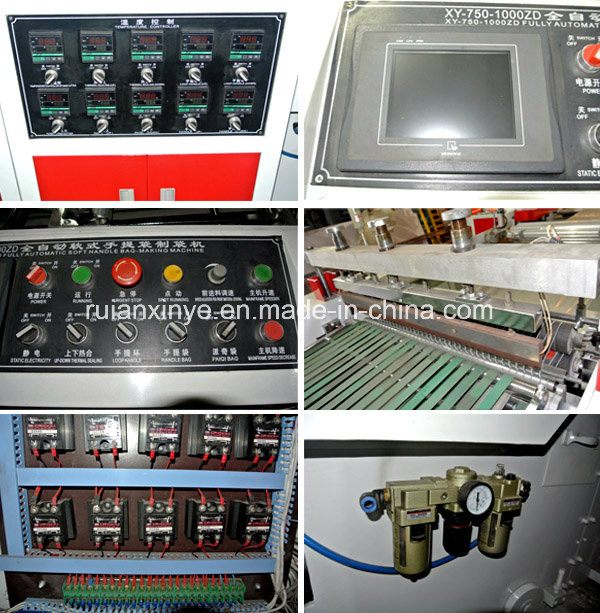

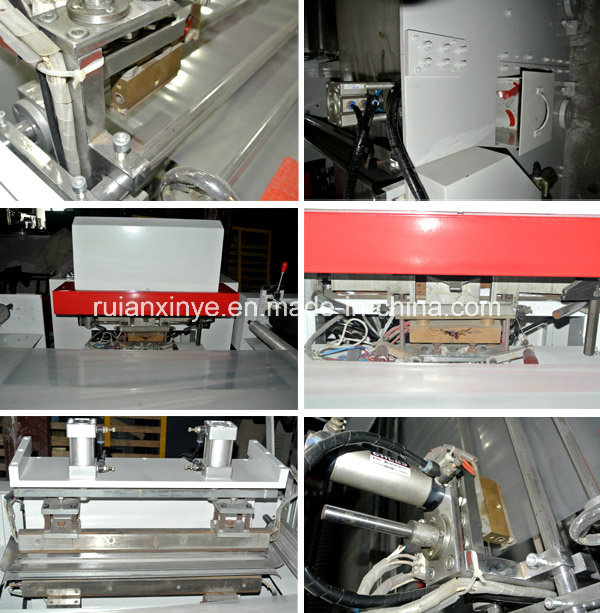

Machine Production:

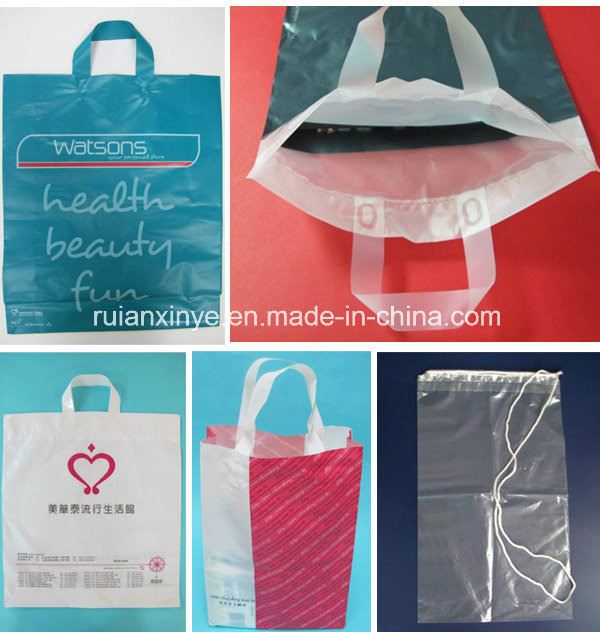

End Products:
Products Advantages:1.Top quality
2.Large output
3.Delivery timely
4.Competitive price
5.Satisfying service
6.Old and experienced factory Payment:The fully automatic soft handle plastic bag making machine with 30%T/T payment of total value in the contract should be paid before production. And 70% T/T balance of total value should be paid before shipment when goods are ready.
Delivery:The fully automatic soft handle plastic bag making machine with 20-30 working days after receiving the deposit by T/T.
If the buyer don't load the machines in six month after paying the deposit and the machines are ready at same time ,the seller will cancel the order and the contract would be invalid.
Company Information:Ruian Xinye Packaging Machine Co.,Ltd. with a long history is located in Ruian economically developed city on the seashore of the East China sea of Zhejiang. It is specialized in producing Series of plastics-packaging equipment.We are engaged in producing bag-making machine,Printing Machine,Film Blowing Machine, etc.
1) Bag-making Machine:Multifunction bag-making Machine; Arc-shaped bag-making Machine;Autosoft handle bag-making Machine ; high speed heat sealing and slitting bag-making Machine;Microcomputer control bag-making Machine;Computerized vest bag-making Machine; Bubble film bag-making Machine ;High speed continous-rolled vest bag-making Machine;
2) Printing Machine: Flexography Press; Rotogravure Printing Press;
3) Film Blowing Machine: HDPE-LDPE Dual-purpose Film Blowing Machine,High Speed Film Blowing Machine Unit;
4) Others:Auto Slitting and Rewinding Machine, Hem Folding Machine, Material Cutting and Punch Machine.Since its establishment, with the purpose of " Gain the customer's confidence base on good quality."and "Improve continuously, meet customer's needs",we have won the support and trust from most national and International customers,from the Southeast Asia,the Middle East, Russia,America, Europe and Africa, etc.
Certificate:
Our Services:Installation services:
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
After sales services:
We offer the Preventative Maintenance and After Sales Service. For we strongly feels that importance of supporting our customers and the product solutions we provide. Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period. FAQ:1.Q: Are you a factory or trading company?
A: We are established in 1995, an actual factory and manufacturer in the line of printing and packing machine for 20 years.
2.Q: Where is your factory loaded? How can I visit there?
A: Our factory located in Rui'an city, Zhejiang Province, China, about one hour by air from Shanghai. All our clients, from home or abroad, are warmly welcome to visit us.
3.Q: Which industries are widely used in of your machine?
A: Bag making machine, film blowing machine, printing machine.
4.Q: How about the payment term?
A: For new customer, our payment term is 30% T/T in advance before production, the balance 70% should be paid before delivery.
5.Q: What about your main market?
A: Our products be sold well in 30 provinces in China and have good reputation in China, also we pay attention to developing the oversea market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries.
6.Q: How does your factory do regarding quality control?
A: Quality is the most important principle. GREAT WALL always attach great impartance to quality controlling from the every beginning to the every end. Our factory has passed SGS and CE certifications.Welcome to Inquiry!
XINYE, as it may be, A Level Industry & Trading Co., Ltd has a senior team, consisting of professionals engaged in this line for 20 years, and striving to offer the exceptional service to our clients who are located in 5 continents, more than 60 countries. Our products have gained ISO9000, CE certificates.
Major products:
1) bag making machine which can produce as following:
Soft loop handle bags, carry bags, patch bags, string-draw bags, envelope bags, pillow bags, PVC shrinkable bags, arc-shaped bags, flat bags, vest bags( t-shirt bags), bubble bags, rolling vest &flat bags, garbage bags, disposable glove.
2)Printing Machine: Flexography Press; Rotogravure Printing Press;
3) Film Blowing Machine: HDPE-LDPE Dual-purpose Film Blowing Machine, High Speed Film Blowing Machine Unit; 2 and 3 layer co-extrusion film blowing machines
4) Others: Auto Slitting and Rewinding Machine, Hem Folding Machine, Material Cutting and Punch Machine., Grinder.
We are willing sincerely to execute extensive technical exchange and cooperation with users both at domestic and overseas, as well as supply the best productions and services to them.
