Product Specifications
| Prod Model: |
XY-750/850/1000ZD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine Type: |
Sealing Machine |
| Computerized: |
Non-Computerized |
| Type: |
Plastic Bag Making Machine |
Product Description
Characteristics :Use:

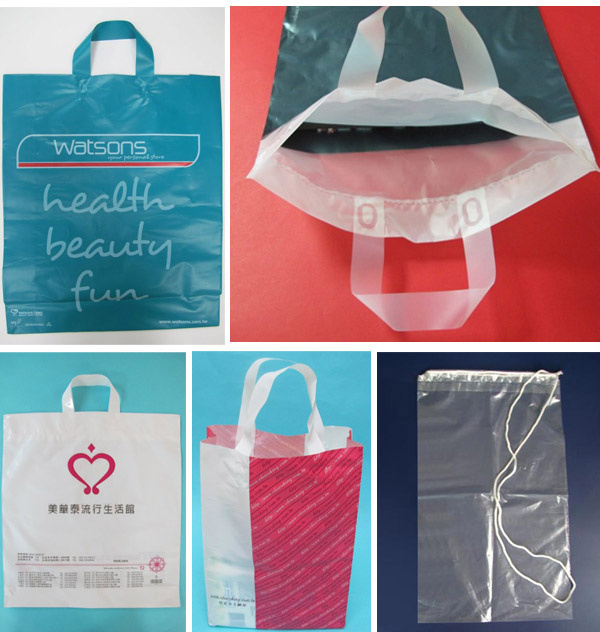

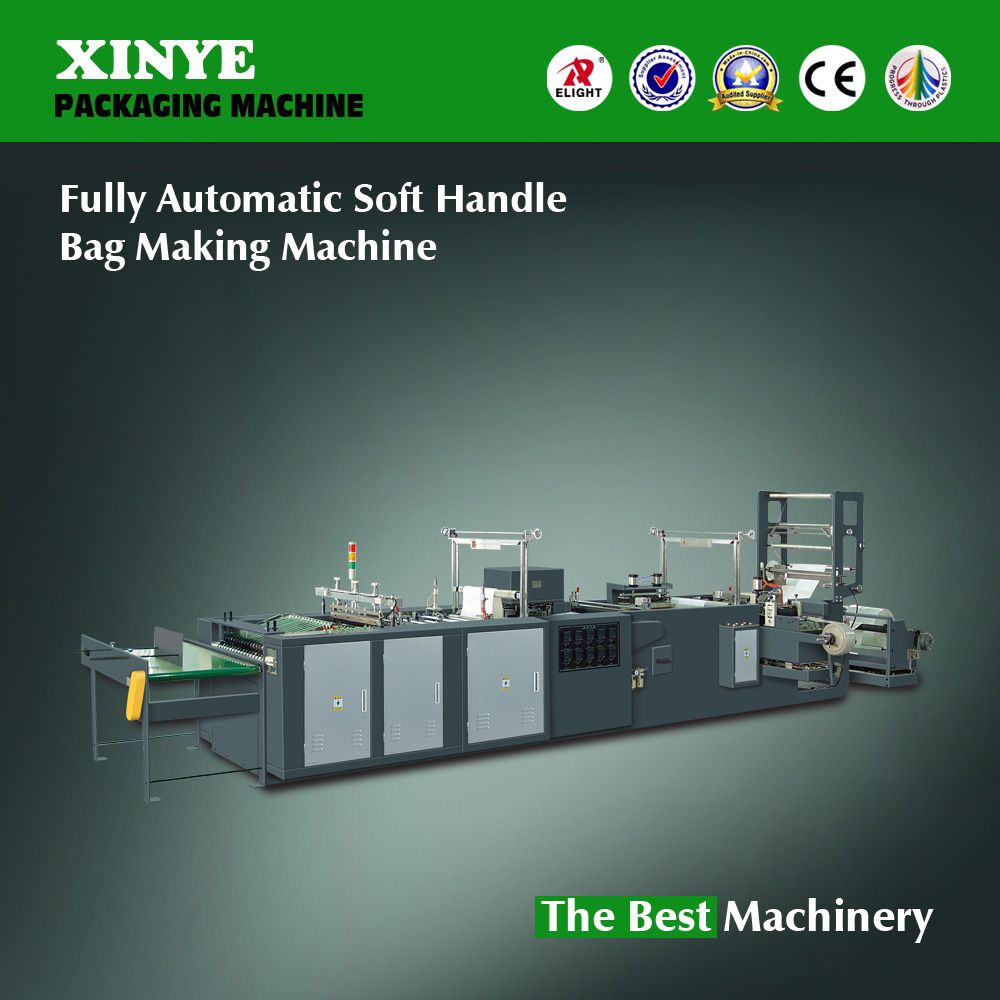

This machine is researched and manufactured by our firm on the basis of integration of lots of advantages of others of this kind, and the feedback of the home and overseas market. It integrate the machine\light\electricity\gas into a system, and it is a multi-functional automatic bag maker with high speed. It is applicable to produce all sort of bags such as costume bag/shoe bag/shoft loop handle bag/patch bag/ carry bag/string draw bag and so on.
Characteristics:
1, The machine is applicable to high/low polyethylene plastic film.
2, Electrical control adopts CRT real-time display system, the needed parameter
Can be set up according to different products.
3, All the temperature control systems adopt electronic liquid crystal digital displayer.
Both portable rings can seal at one time, and the seal is excellent.
5, The machine possesses the automatic alarm functions of color mark losing,
Temperature exceeding limit, counting down and the deliver of finished products.
6, Bag delivery adopts servo motor special control system, the main machine is
Controlled by soft start-up transducer, tranquilization in course.
7, All the four-layer film of the machine has been warm-up before side-sealing, which
Make the seal quite fast.
8, All the pneumatic component and electrons adopt famous mark at home or abroad.
| Model | XY-750ZD | XY-850ZD | XY-1000ZD |
| Bag Size Width | 250-600mm | 250-650mm | 250-650mm |
| Bag Size Length | 250-600mm | 250-650mm | 250-850mm |
| Production speed | Patch 60cyce/min, String Draw 55cyce/min,Carry 65cyce/min | Patch 60cyce/min, String Draw 55cyce/min,Carry 65cyce/min | Patch 60cyce/min, String Draw 55cyce/min,Carry 65cyce/min |
| Thickness of film | 0.045-0.09mm | 0.045-0.09mm | 0.045-0.09mm |
| Total Power | 8kw | 8.5kw | 10.5kw |
| Weight of Machine | 3000kg | 3500kg | 4200kg |
| Overall Dimensions | 8600×2800×1950mm | 8600×2900×1950mm | 8600×3100×1950mm |
XINYE, as it may be, A Level Industry & Trading Co., Ltd has a senior team, consisting of professionals engaged in this line for 20 years, and striving to offer the exceptional service to our clients who are located in 5 continents, more than 60 countries. Our products have gained ISO9000, CE certificates.
Major products:
1) bag making machine which can produce as following:
Soft loop handle bags, carry bags, patch bags, string-draw bags, envelope bags, pillow bags, PVC shrinkable bags, arc-shaped bags, flat bags, vest bags( t-shirt bags), bubble bags, rolling vest &flat bags, garbage bags, disposable glove.
2)Printing Machine: Flexography Press; Rotogravure Printing Press;
3) Film Blowing Machine: HDPE-LDPE Dual-purpose Film Blowing Machine, High Speed Film Blowing Machine Unit; 2 and 3 layer co-extrusion film blowing machines
4) Others: Auto Slitting and Rewinding Machine, Hem Folding Machine, Material Cutting and Punch Machine., Grinder.
We are willing sincerely to execute extensive technical exchange and cooperation with users both at domestic and overseas, as well as supply the best productions and services to them.
