Product Specifications
| Prod Model: |
XY-750ZD XY-850ZD XY-1000ZD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motor: |
Stepping Motor |
| Color: |
Grey |
| Warranty: |
One Year |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Automatic: |
Fully Automatic |
| Bag Design: |
Patch Bag,String Draw Bag,Carry Bag,Loop Handle Ba |
| Inverter: |
Huifeng |
| Certification: |
CE |
| Brand Name: |
Elight |
| Place Of Original: |
Zhejiang China |
| Machine Type: |
Cutting Machine |
| Computerized: |
Computerized |
| Type: |
Plastic Bag Making Machine |
| Seals Mode: |
Side Sealing |
Product Description
Use:

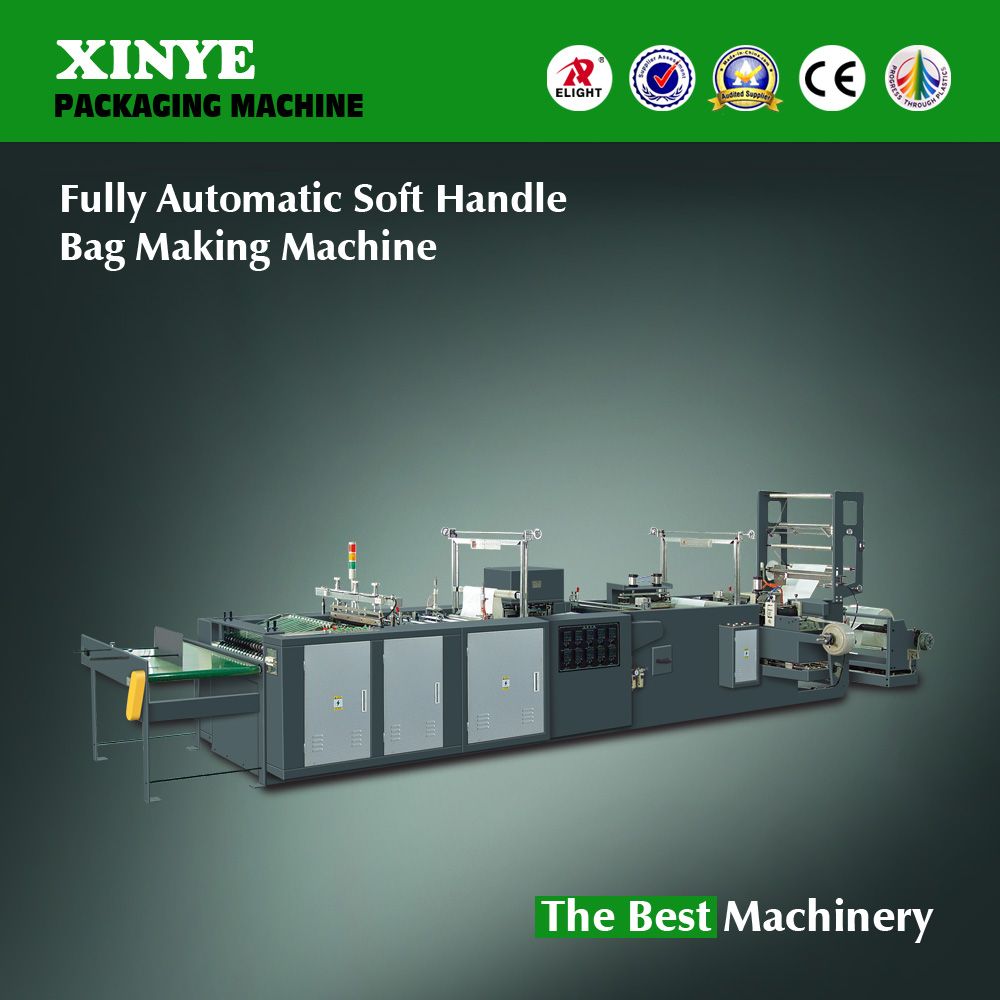

This machine is researched and manufactured by our company on the basis of integration of lots of advantages of others of this kind, and the feedback of the home and overseas market. It integrate the machine\light\electricity\gas into a system, and it is a multi-functional automatic bag maker with high speed. It is applicable to produce all sort of costume bag\data bag\shoe bag and so on.
Characteristics:
1. The machine is applicable to high/low polyethylene plastic film.
2. Electrical control adopts CRT real-time display system, the needed parameter can be set up according to different products.
3. All the temperature control systems adopt electronic liquid crystal digital displayer. Both portable rings can seal at one time, and the seal is excellent.
5. The machine possesses the automatic alarm functions of color mark losing, temperature exceeding limit, counting down and the deliver of finished products.
6. Bag delivery adopts servo motor special control system, the main machine is controlled by soft start-up transducer, tranquilization in course.
7. All the four-layer film of the machine has been warm-up before side-sealing, which make the seal quite fast.
8. All the pneumatic component and electrons adopt famous mark at home or abroad.
Installation Service
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
After Sales Service
We offer the Preventative Maintenance and After Sales Service. For we strongly feels about the importance of supporting our customers and the product solutions we provide. Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.
In one words, your satisfication is our persuit forever!
| Model | XY-750ZD | XY-850ZD | XY-1000ZD |
| Width of bag | 250-600mm | 250-650mm | 250-650mm |
| Length of bag | 250-600mm | 250-650mm | 250- 8 50mm |
| Production speed | Patch 60cyce/min String draw 55cyce/min Carry 65 cyce/min |
| Thickness of film | 0.045-0.09mm | 0.045-0.09mm | 0.045-0.09mm |
| Total power | 8kw | 8.5kw | 10.5kw |
| Machine Weight | 3000kg | 3500kg | 4200kg |
| Overall Dimensions | 8600*2800*1950mm | 8600*2900*1950mm | 8600*3100*1950mm |

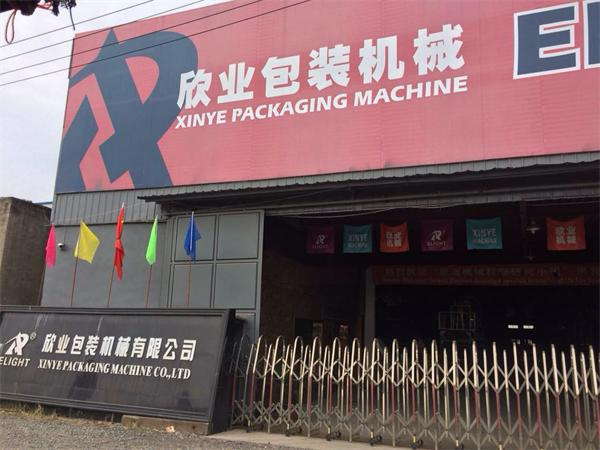

XINYE, as it may be, A Level Industry & Trading Co., Ltd has a senior team, consisting of professionals engaged in this line for 20 years, and striving to offer the exceptional service to our clients who are located in 5 continents, more than 60 countries. Our products have gained ISO9000, CE certificates.
Major products:
1) bag making machine which can produce as following:
Soft loop handle bags, carry bags, patch bags, string-draw bags, envelope bags, pillow bags, PVC shrinkable bags, arc-shaped bags, flat bags, vest bags( t-shirt bags), bubble bags, rolling vest &flat bags, garbage bags, disposable glove.
2)Printing Machine: Flexography Press; Rotogravure Printing Press;

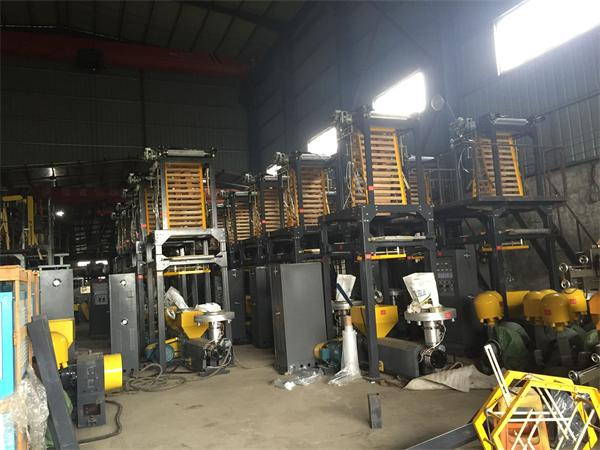

3) Film Blowing Machine: HDPE-LDPE Dual-purpose Film Blowing Machine, High Speed Film Blowing Machine Unit; 2 and 3 layer co-extrusion film blowing machines
4) Others: Auto Slitting and Rewinding Machine, Hem Folding Machine, Material Cutting and Punch Machine., Grinder.
We are willing sincerely to execute extensive technical exchange and cooperation with users both at domestic and overseas, as well as supply the best productions and services to them.
