Product Specifications
| Prod Model: |
HZ-H007 |
| HS Code: |
73083000 |
| Perspective Window: |
1.2mm PVC Transparent |
| Open And Close: |
0.6-1.8m/S |
| Open Frequency: |
1000-1500times/Day |
| Motor Power: |
0.75kw-2.2K/50-60Hz |
| Drive System: |
1.German Sew 2.China Sej / China Servo |
| Control System: |
1.Japan Mitsubishi /China Hlp/China Servo |
| Type: |
Rolling |
| Open Style: |
Rolling |
| Special Function: |
Fire Proofing |
| Color: |
Grey |
| Certification: |
CE |
| Position: |
Interior |
| Surface Finishing: |
Finished |
| Material: |
PVC- |
| Opening Type: |
Radar |
Product Description

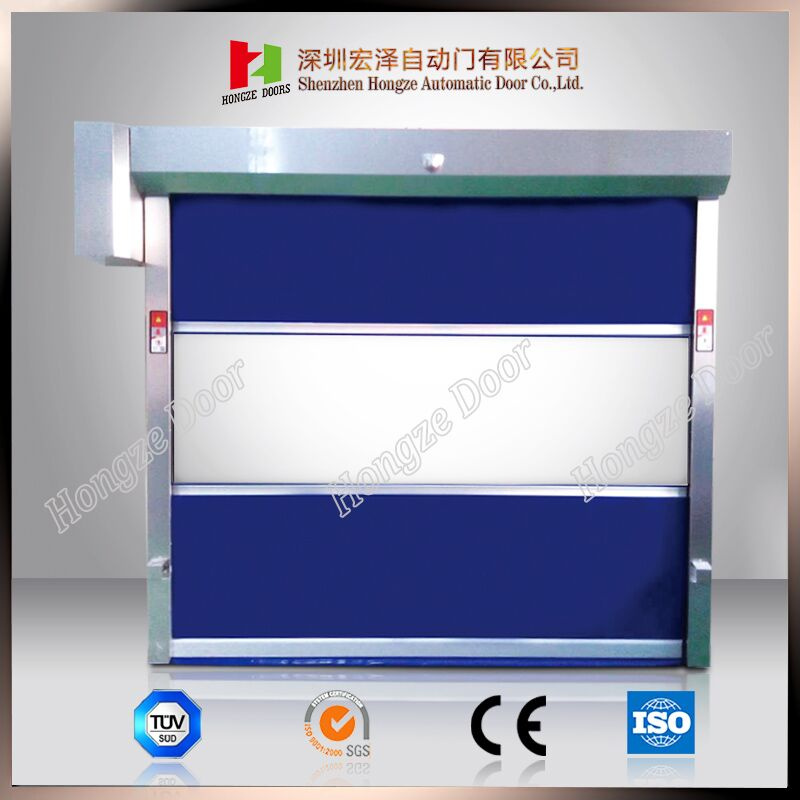

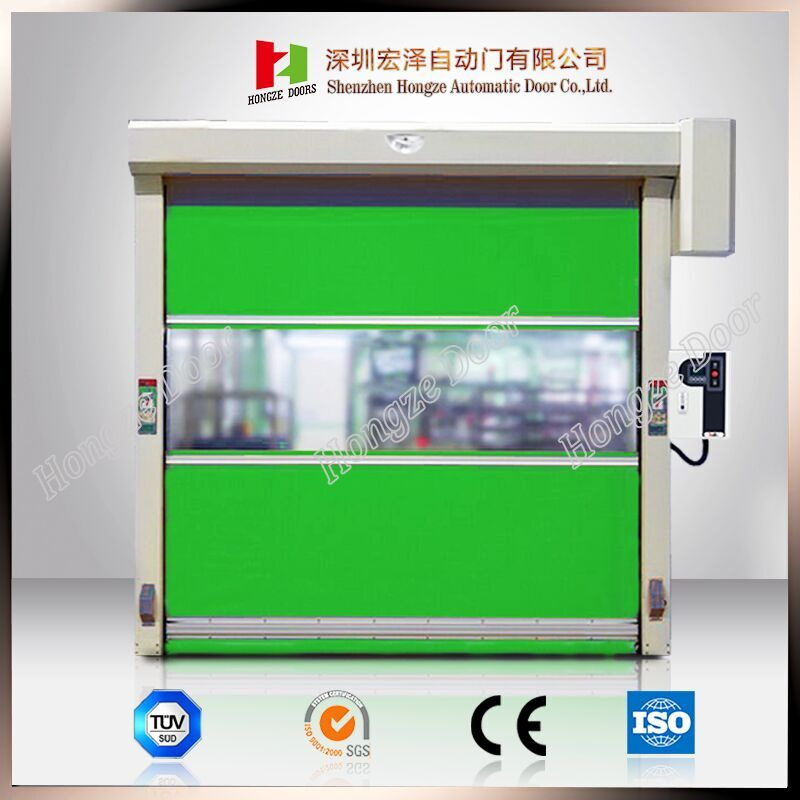

Flexible High Speed Door/Automatic Rapid Rolling Door/Fast Speed Roller Shutter
Product Specification:
Rapid PVC door | Grey,Yellow grid,Purple,Green,Light green,Black,Perforated Yellow grid,White,Blue,White grid,Sky Blue,Yellow,Orange,Red
Color curtain:0.8mmthickness. Transparent curtain:1.2mm.
Function:insect prevention |
Reinforce girder | Aluminum alloy 45mm width.
Function:reinforce the curtain and wind resistant |
Bottom bar | Aluminum alloy 95mm width
Function:reinforce the crutain to keep the door opening without a hitch |
Radar sensor | The place on the cover box. Can detect 3 meters area!
Function: detect the moving thing and open the door.
For the place which has more people through. |
Photocell sensor | Function:It's stop the door when the door is closing and someone through the door. |

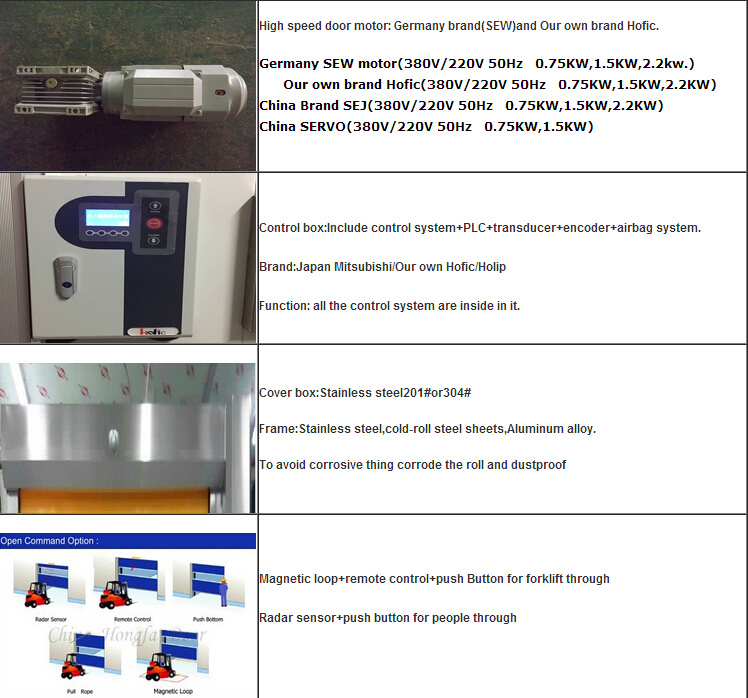

Drive system | Germany SEW motor(380V/220V 50Hz 0.75KW,1.5KW,2.2kw.) Our own brand Hofic(380V/220V 50Hz 0.75KW,1.5KW,2.2KW) |
Control system | Control box:Include control system+PLC+transducer+encoder+airbag system.
Brand:Japan Mitsubishi and Our own Hofic
Function: all the control system are inside in it. |
Cover box |
Material: Stainless steel201#or304#
To avoid corrosive thing corrode the roll and dustproof
|
Opening way: |
Radar sensor+push button for People through
Magnetic loop+push button for forklift through |
1. Frame: 2MM thicknesses cold-roll Stainless steel.
2. Motor: Germany SEW brake motor, power 0.55- 1.5KW, power supply 220V/380V, brake voltage is 220V.
3. Control system: Imported Japan Mitsubishi converter and PLC to control of electric box.
4. Opening & closing speed: 0.6-1.5m/s (adjustable).
5. Safety Device: Korea Photocell Sensor (AUTONICS), emergency stopping reaction when sensing obstacles.
6. Curtain: France high-density polyester fiber and the surface coating processing, thickness 0.8MM-1.5MM.
7. Wind resistant: The Aluminium alloy Reinforce Girder to increase wind resistant effect.
8. Curtain replacement function: Aluminium alloy Reinforce Girder is loaded between 2 pieces Curtain, can be
replaced easily if any curtain broken, save your cost.
9. Transparent window: 1.2MM thickness transparent PVC window, size and location is up to your request.
10. Seal: Seal brush is Installed inside the guides, and the special bottom design, to fit any uneven ground.
11. Cotrolling way: Radar Sensor, Magnetic loop, Remote Control, Push button, Rope Switch, ect …
12. Limiting Switch: Mechanical limiting switch, easily and exactly.
13. Emergency stop button on control panel, stop easily by hand once disconnect or accident.
14. All Hongfa's production is with fault recovery function, system will self-recovery after power cut off.
15. Delivery time: About 7 business days with contract and deposit confirmed.
16. Pyament item: 50% before production, and the other 50% before shipment
17. Warranty Details: We provide 12 months warranty for all doors and accessories.
