Excellent High Precision CNC Machine Woodworking Machinery
| Price: |
US $ 5000-9800/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
Product Specifications
| Prod Model: |
NM-48 |
| Model: |
Nm-48 |
| Controller: |
Nk-105 DSP |
| Rail: |
Taiwan |
| Motor: |
Stepper Motor ( Servo Motor Is Optional) |
| Rack: |
M1.5 Helical |
| Table: |
T-Slot Vacuum Table |
| Spinde: |
6kw Air Coolng |
| Transmission: |
Reducer |
| Pump: |
5.5kw Air Cooling |
| Dust Collector: |
3kw with Two Bags |
| Process Usage: |
CNC Non-Conventional Machine Tools |
| Movement Method: |
Contour Control |
| Control Method: |
Semi-Closed Loop Control |
| Numerical Control: |
CNC/MNC |
| Performance Classification: |
Economical CNC Machine Tools |
Product Description

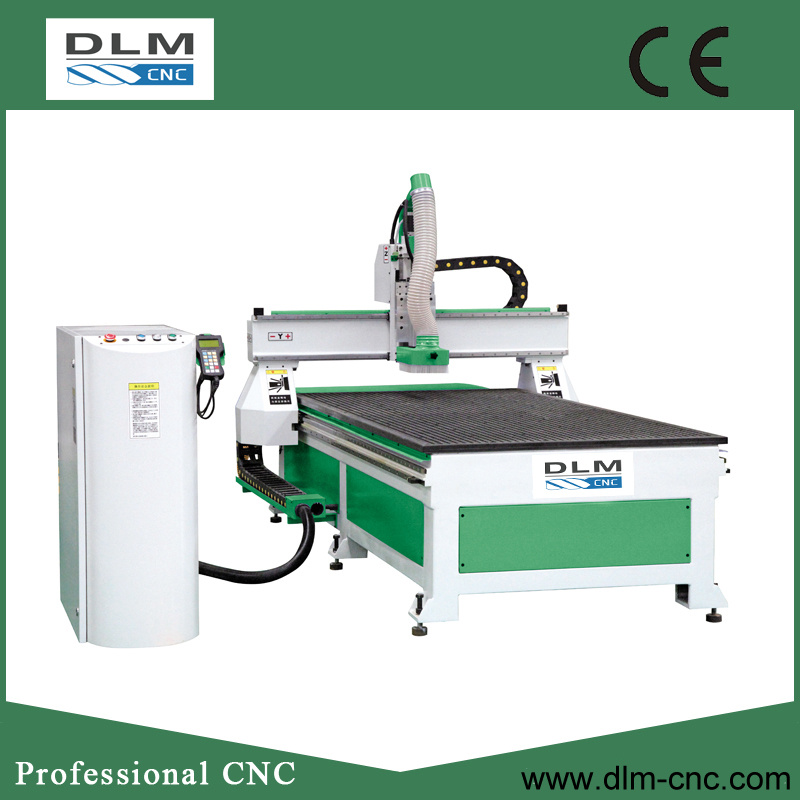

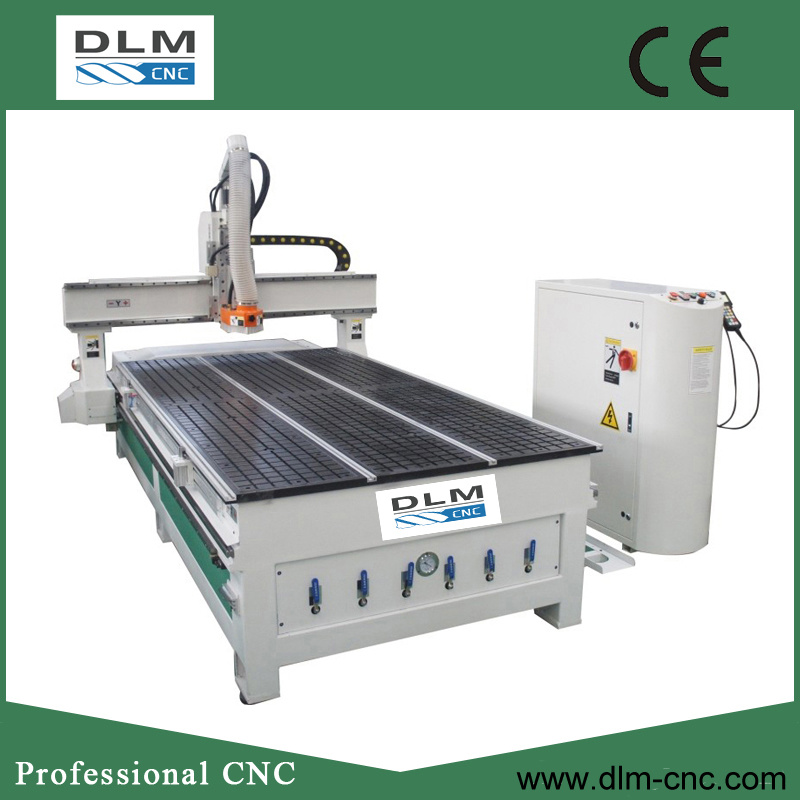

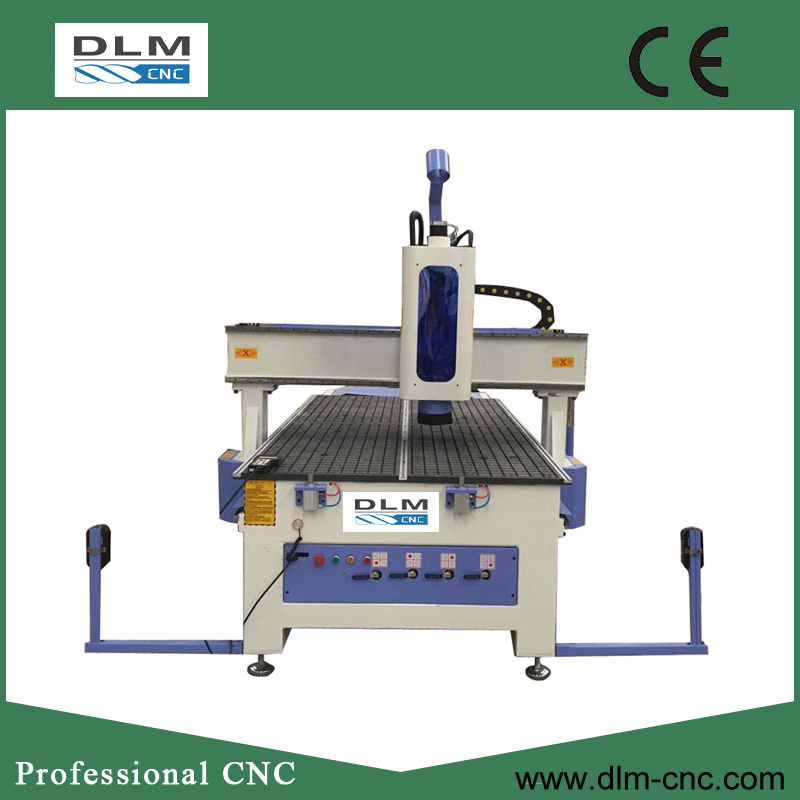

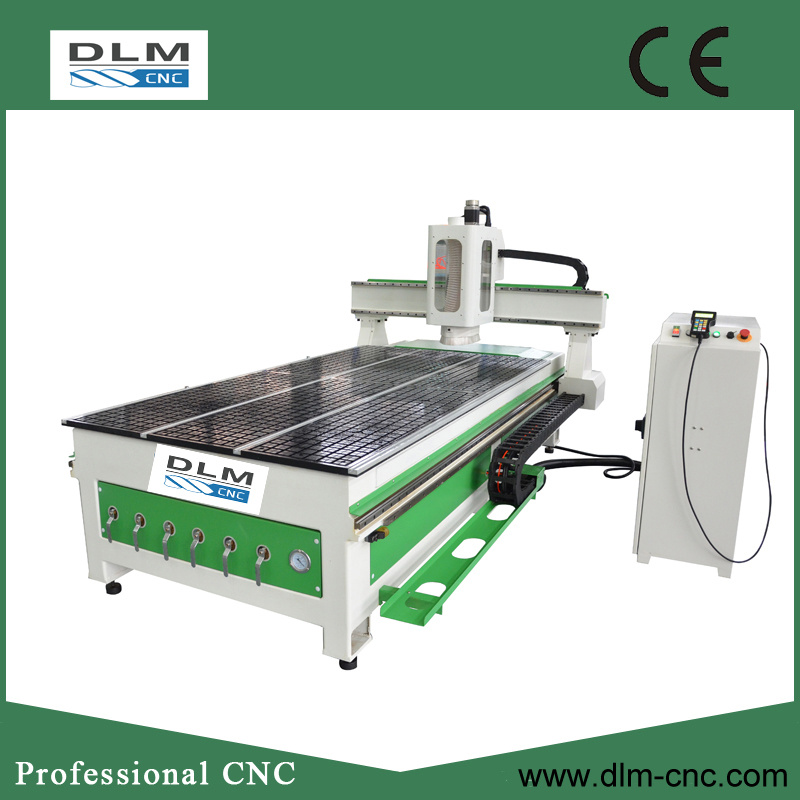

CNC Woodworking Machinery NM-48
The standard configuration of NM-48 is:
| Spindle Power | 3.5KW |
| Controller | Weihong hand-held controller |
| Motor | Stepper motor |
| Gear Reducer | Japanese Shimpo planetary gear reducer |
| Table | PVC+T-slot vacuum table |
| Software | Type-3 |
| Transmission | Precision helical rack and pinion drive & Z axis direct drive |
| Ball Screw | 25mm Taiwan AMT |
| Guide Rail | 25mm Taiwan PMI |
| Table Size | 1220x2440mm |
| Max. Traveling Size (X/Y/Z) | 2540x1320x200mm |
| Max. Workpiece Height | 150mm |
| Dimensions (X/Y/Z) | 3500x1800x2000mm |
| Net Weight | 1500kg |
Upgrade:- Positioning air cylinders
- Boring aggregate
- Pushing device
- Protection enclosure
- Laser light screen
- Spindle cover
- Full-body cover
- Movable vacuum suction chucks
- Multi-spindle design
- +/-90°spindle horizontal processing design
- Loading & unloading roller table and floating table
- Spindles with enhanced power
Spare Parts:
1) Pump 5.5KW Chinese Becker Pump
2) Dust collector 3KW with two bags
3) Rotary axis
Applicable Materials: wood, solid wood, acrylic, PVC, MDF, brass, aluminum, etc.c

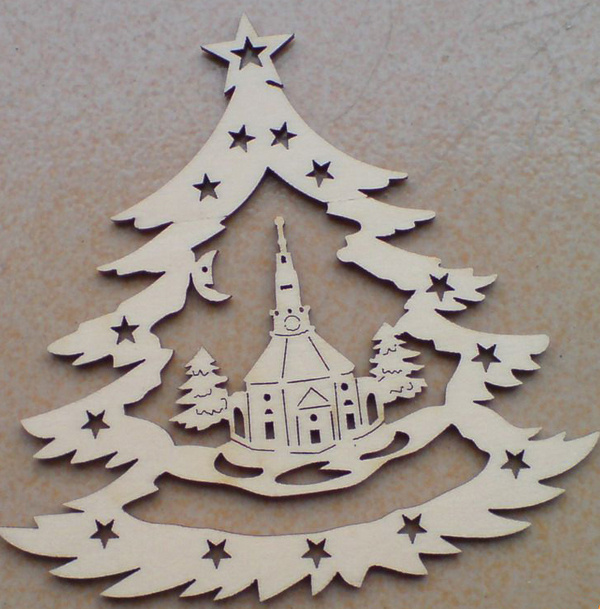

Application:1. Woodworking industry: three-dimensional wave board processing, cabinet door, craft wooden door, folding screen, process window milling shape carved furniture products.2. Advertising industry: advertising signs, PVC board, chevron board, double color boards, logo making, acrylic cutting, plastic molding, characters, crystal cutting, plate making, cutting PVC board, acrylic, LED/neon trough, the hole shape literally cut, blister light boxes mould3. Arts and crafts industry: in the wood, bamboo, marble, organic board, double color boards, such as material for a variety of exquisite design and text on the sculpture.
Jinan DLM CNC Router Company with more than 5 years manufacturing experience in CNC non-metal computer machining center, and attachment technology research, machinery, parts procurement, production and assembly, software development, electric wiring, business sales, repair and after-sale service, etc. Owing abundant application experience and excellent technical team, can quickly resolve any technical issues about CNC equipment and provide the technical resources of CNC machining processing practice experience.
We offer a comprehensive range of highly-efficient products castering for the needs of different industrial sectors. All of our products feature solid structure, best quality components, superio machining techiques and complete reliability. We marketour products through a strong network extending to the whole world market, including but not limited to Russia, Australia, New Zealand, USA, Brazil, Middle East, South East Asia. Our machines are widely used in various industries, furniture manufacturing, electronic industries, construction industries, audio and musical instruments, stationary gifts, advertisenment engrave, mold, high-speed train, yacht and boats, aircraft industry, machine produce, etc.
