Product Specifications
| Prod Model: |
NA-48 |
| Controller: |
Taiwan Syntec Controller |
| Motor: |
Delta Servo Motor |
| Spindle: |
9kw Air Cooling Spindle /Italy |
| Rail: |
Taiwan Rail |
| Table: |
Double Layer PVC Vacuum |
| Rack: |
Helical Racks |
| Pump: |
5.5kw / 7.5kw Water Cooling Pump |
| Dust Collector: |
3kw/5.5kw |
| Lubrication System: |
Included |
| Software: |
Type 3 /Artcam |
Product Description

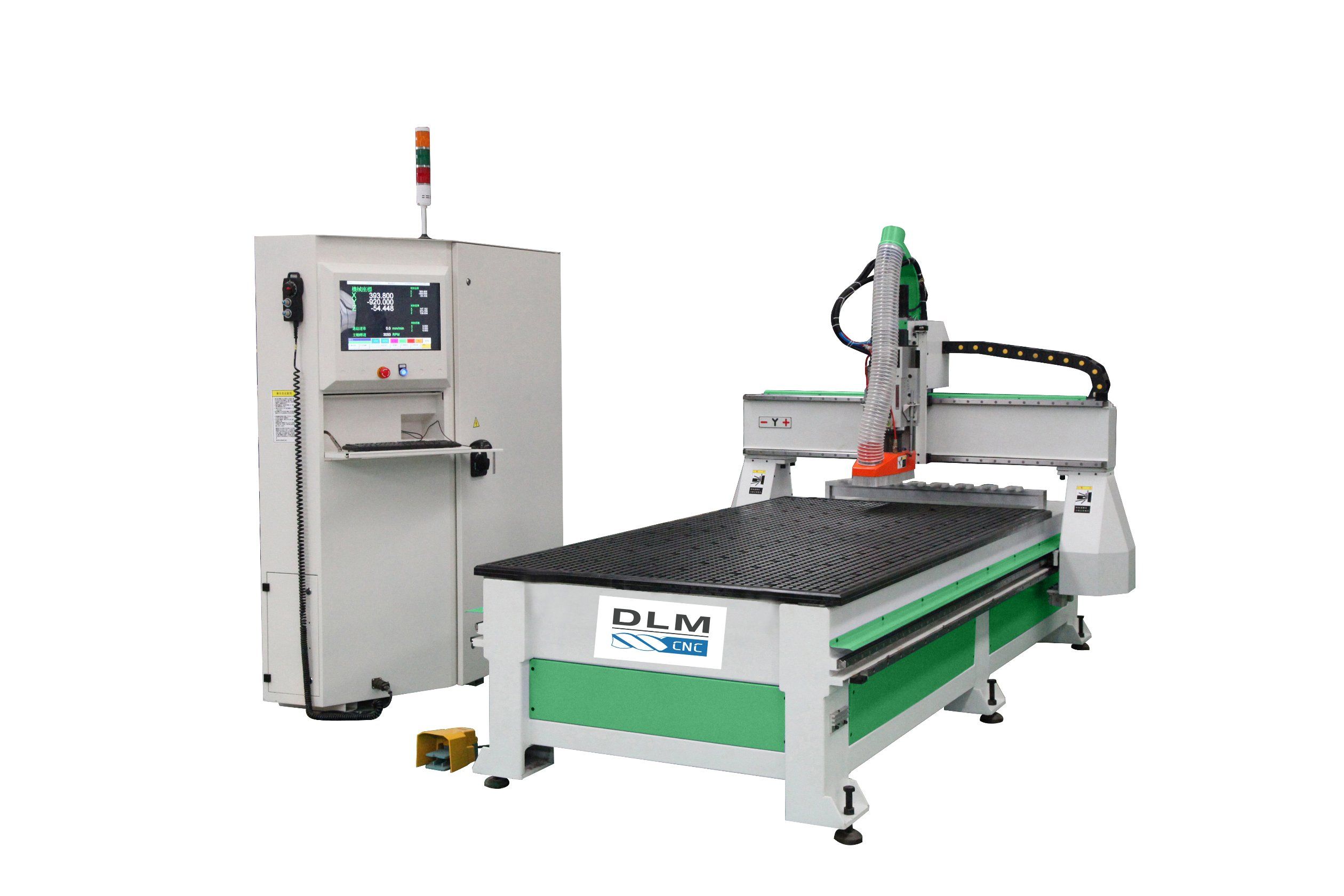

China Automatic Tool Changer Machine NA-48 ( 1325)
Product Features:
1. Spindle design can be increased to 4 spindles, up and down by cylinder independently or moving up and down by motor for choice. Beam trip with full stroke or half stroke is available.
2. Table design: T-slot aluminum table, PVC vacuum table + T-slot aluminum table and compact grade board three types for choice.
3. Vacuum Pump: German Becker pump, Chinese Tongyou pump and Chinese air blower three types for choice.
Applicable Applications:
1.Woodworking Industry: stereo wave board processing, wooden door, various furniture product auxiliary processing.
2.Advertising Industry: Advertising label, PVC plate, PCB board (drilling and engraving), Double color boards, logo production, acrylic cutting, plastic suction for making advertising dedication, word cutting, sign making, crystal word, LED display screen, kinds of doorplate, nameplate and so on.
3.Mold Industry: Apply for carving various molds, wood pattern, Foam mould, and metal mold, etc.
4.Musical instrument industry: instrument 3D surface engraving, shape cutting
5.Wooden crafts.
6.Exhibition industry: showcase, etc.
Technical Parameters:
| Model | A1-48A | Name | CNC Router |
| Standard configuration |
| Item | Specification | Remarks |
| Table Size (mm) | 2440X1280 | |
| Traveling Size X-Y-Z (mm) | 2540X1320X250 | |
| Max. working piece height(mm) | 150 | |
| Weight (Kg) | 1200 | |
| Systemic Resolution (mm) | ±0.005 | |
| Repositioning Resolution (mm) | ±0.025 | |
| Max. running speed (m/min) | 40 | |
| Max. cutting speed(m/min) | 20 | |
| Working voltage (V/PH/HZ) | 380/3/50 | |
| Cabinet | Electric cabinet + Fan cooling system | CE |
| Spindle (KW) | 3.5/4.5/6.0 | Changsheng/ China |
| Spindle Speed (r/min) | 18000 | |
| Working air pressure (MPa) | 0.6 | |
| Table design | PVC Vacuum & T-slot table | 25mmPVC+ aluminum |
| Driving system | Stepper | Fuxing |
| Control system | NC Studio DSP | |
| Software | Router-8 France / Ucam | |
| Tool magazine | Linear Type 8 Plastic Steel Tools | |
| Optional |
| Item | Specification | Remarks |
| Spindle (KW) | 3.0 /4.5/6.0 | Italy HSD air cooling spindle |
| Positioning cylinder | 3 pieces | |
| Table design | Aluminum T-slot table /Vacuum table | Double-layer is optional |
| Vacuum pump | 4KW/140m3/h Becker pump/German
&5.5KW/160m3/Tongyou pump/China
& turbine pump | Included one-way valve and filter |
| Driving system | Servo motor | Delta / YASKAWA |
| Drilling head | 5V/7V/9V/7V2H | FAM |
| Protect device | Machine enclosure protection guard/ electric safety mat / laser monitor protection system | |
| Software | TYPE3/China CAM( British)- for drilling head | |
| Vacuum pod | | |
Jinan DLM CNC Router Company with more than 5 years manufacturing experience in CNC non-metal computer machining center, and attachment technology research, machinery, parts procurement, production and assembly, software development, electric wiring, business sales, repair and after-sale service, etc. Owing abundant application experience and excellent technical team, can quickly resolve any technical issues about CNC equipment and provide the technical resources of CNC machining processing practice experience.
We offer a comprehensive range of highly-efficient products castering for the needs of different industrial sectors. All of our products feature solid structure, best quality components, superio machining techiques and complete reliability. We marketour products through a strong network extending to the whole world market, including but not limited to Russia, Australia, New Zealand, USA, Brazil, Middle East, South East Asia. Our machines are widely used in various industries, furniture manufacturing, electronic industries, construction industries, audio and musical instruments, stationary gifts, advertisenment engrave, mold, high-speed train, yacht and boats, aircraft industry, machine produce, etc.
