3 Spindles 1325 CNC Woodworking Machine
| Price: |
US $ 10500-19500/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
Product Specifications
| Prod Model: |
DLM-483 |
| Spindles: |
6kw Air Cooling Spindle *3 PCS. |
| Controller: |
DSP / Taiwan |
| Motor: |
Servo Motor / Stepper Motor |
| Rail: |
25mm / 30mm |
| Table: |
Double Layer PVC Table |
| Pump: |
5.5kw / 7.5kw / 11kw |
| Rack: |
Helical |
| Lubrication: |
Automatic Oil Lubrication System |
| Tool Sensor: |
Automatic |
| Software: |
Type 3/ Artcam |
Product Description

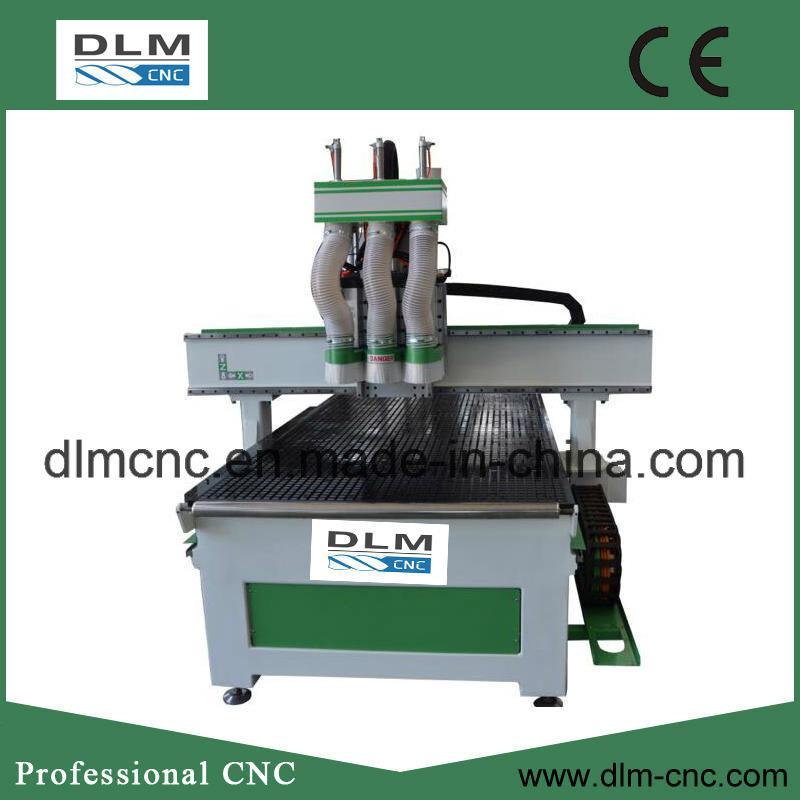

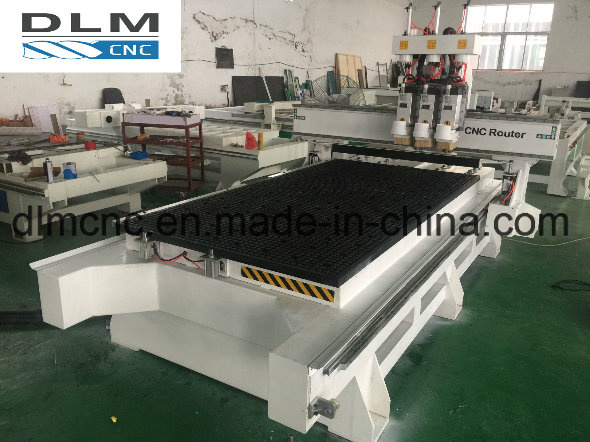

CNC Woodworking Machinery 3 spindles Model DLM-483
1) It can save time for changing less than 3 cutters.
2) stable structure, heavy type machine body.
3) double work position for your choice.
Parameters: | model | DLM-483 |
| working area | 1300mm*2500mm |

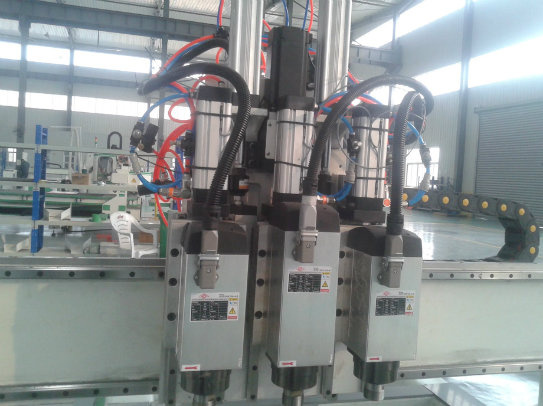

| spindle * 3 pcs. | 6KW air cooling spindle |

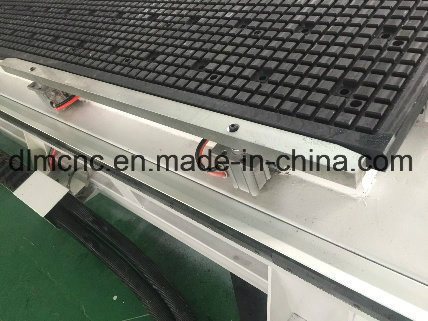

| table design | T-slot vacuum table/ double layers PVC |

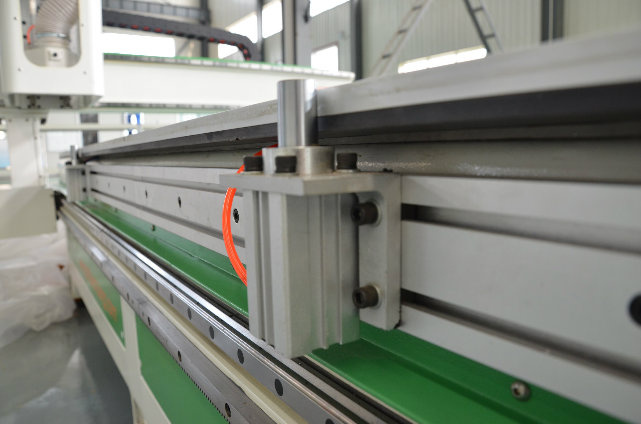

| rail | Taiwan linear rail |
| driving system | servo motor |
| controller | Taiwan Syntec/ Taiwan Delta |
| inverter | 7.5KW |
| motor | servo motor |
| pump | 5.5KW / 7.5KW |
| dust collector | 3KW with double bags |
| ball screw | high precision |
| software | Type 3 / ArtCAM |
| package | plywood box |
Features:. Model:1325 Woodworking CNC Router. The lathe bed welded with thick channel steels and square tubes; Processed by high temperature tempering treatment and vibrating stress relief to reduce residual stress;
Ensure excellent stability,bot easy to be deformed.. The major machine body makes the stability and no shacking in high speed..XYZ all apply imported screw, high precision gear frame and linear square guide, ensure the high accuracy.. The professional mechanical design, scientific structure and generous appearance..XYZ axis use antidust system, prevent dust during working, make sure the long lifespan of spare parts.. High quality driver motor, spindle motor, cables, inverters, etc..Professional CNC control system, can compatible with many kinds CAM software, such as TYPE3/ARTCAM/UG/PRO-E/MASTERCAM.Application:1. Woodworking industry: three-dimensional wave board processing, cabinet door, craft wooden door, folding screen, process window milling shape carved furniture products.2. Advertising industry: advertising signs, PVC board, chevron board, double color boards, logo making, acrylic cutting, plastic molding, characters, crystal cutting, plate making, cutting PVC board, acrylic, LED/neon trough, the hole shape literally cut, blister light boxes mould3. Arts and crafts industry: in the wood, bamboo, marble, organic board, double color boards, such as material for a variety of exquisite design and text on the sculpture.
