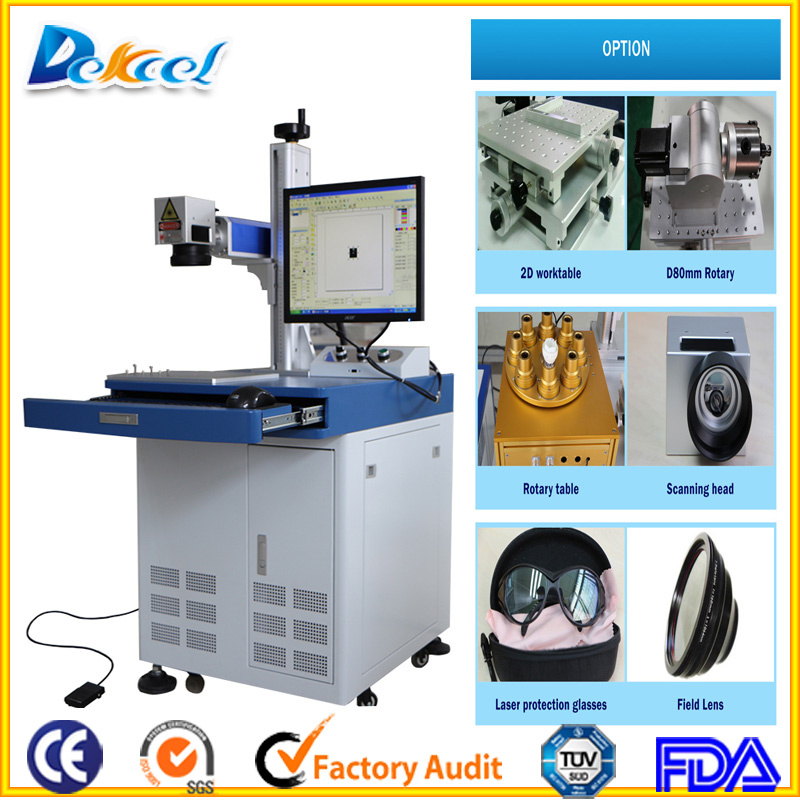

Desktop Fiber Laser Marker 30W Laser Marking Crystal Machine

Product Specifications

Prod Model:	Dek-110*110 mm
Engraving Depth:	0.01~0.2mm
Control Software:	Ezcad
Graphic Format Supported:	Ai, BMP, Dst, Dwg, Dxf etc
Working Accuracy:	0.001mm
Guaranty:	24 Month
Quality Of Laser Beam:	M2<1.5
Engraving Speed:	≤12000mm/S
Laser Length:	1060nm
Minimum Line Width:	0.01mm
Minimum Character:	0.05mm

Product Description

Description of Fiber Laser marking Machine:

 Fiber laser marking machine designed to easy-move equipment, air-cooling, compact machine,
Perfect output beam quality, high reliability, no consumables, maintenance-free. Long life Working.
Import Germany IPG fiber laser, the international latest, most reliable structure, small size, power
consumption is small, no high-voltage without large water-cooled system.Close to the ideal beam,
USB interface, output control, optical scanning system,
laser repetition rate high, high-speed without distortion.

Fiber laser marker advantage:
1) Under operation system: windowns xp,windowns 7,windows8/10
2) Support Characters,digital,series NO,Date codes
3) Various types of fonts are supported such as TrueType,JSF(Single line font ),DMF(Dot
Matrix Font,One-Dimensional bar code, Two-Dimensional bar code and so on
4) Common types of images are supported. (bmp, jpg, gif, tga, png, tif…)
5) Common vector images are supported. (ai, dxf, dst, plt…)
6) Flexible variable text :changes the text real time while in laser processing.Excel datasheet is
 supported.
7) Dometic and Imported fiber laser source.
8) Excellent optical mode, long operating life up to 100,000HS
9) The highest electro-optical conversion efficiency up to 80%,but gross power less than 600W
10) Small size,steady,without maintenance,easy to operate
11) High precision, suited for fine processing on all metal and some non-metal.
12) This machine adapts the fiber laser and has high electro- optical conversion rate,the quality
 of laser beam is good,cooling with air- cooling methods, it has smaller shape,low power
 and much more energy-efficient.
13) Divergent Angle is about a quarter of the pump laser semiconducto,especially mainly used
in precise,fine marking,low using cost,electro-optic conversion efficiency is up to 30% .

Specifications of Fiber Laser Marking Machine


Model	DEK-10W/20W/30W/50W
Laser power	10W 20W 30W 50W
Laser wavelength	1064nm ±10nm
Q-frequency	20KHz~100KHz
Pules frequency	20KHz~200KHz
Divergence	0.3mard
Marking range	110*110mm/200*200mm/300*300mm
Minimum line width	0.001mm
Minimum character	0.1mm
Marking speed	10000mm/s
Marking depth	0~0.5mm
Engraving line speed	≤ 7000mm/s
Repeat accuracy	±0.001mm
Beam quality	M2:1.2~1.8
Marking format	Graphics, text, bar code,two-dimensional code,automatically marking the date, batch  number,serial number, frequency,etc.
Graphic format supported	bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
Working voltage	220V ± 10%/50HZ/4A
Unit power	<0.5KW
Use of the environment	Clean and dust free of dust less
Working condition:Humidity	5%-75%,Free of condensed water
Laser module life	>100000 hours
The whole life	More than 15 years
Packing size	770*250*600*mm
Net weight	35kg


Applicable materials:
It can mark all kinds of metal materials and some non-metallic materials,industrial plastic,electroplates,metal-coated materials,rubbers,ceramics,mobile button,plastic transparent button,electronic parts,IC,tools,communication products.
Bathing products,tool accessories,glasses and watches,jewelry,button decoration for boxes and bags, cookers,stainless steel products and so on.

Our Service:

1.24 hours online service.If any technical questions or problems,our engineers are available online or by phone.
2.TWO year free warranty (include whole machine and spare parts). Two years main parts quality warranty.

Terms of trade:

1.Payment terms: L/C, T/T, Western Union, Paypal.
2.Delivery period: If standard items, within 1-2 days. If book items, within 7-20 days.

Packaging:

One Set/carton/polywood case/pallet

Transporation:

By Global Express/ By Air/ By Sea(on quested)

Should you have any questions or need, please feel free to contact us. We'll be on line for 24
hours and waiting for you. Thanks a lot.
