Product Specifications
| Prod Model: |
DEK-1390 |
| Cutting Area: |
1300*900mm |
| Cutting Thickness: |
0-30mm |
| Cutting Speed: |
0-40000mm/Min |
| Graphic Format Supported: |
Ai, BMP, Dst, Dwg, Dxf |
| Certification: |
Ce, FDA |
| Laser Power: |
60W/80W/100W/150W |
| Driving System: |
Stepper Motor and Drivers |
| Control Configuration: |
Ruida Control System |
| Belt: |
Fulong Belt |
| Rail: |
Hiwin Square Guide Rails |
Product Description
Description
1.Leedshine driving system--stable
2.Hiwin guide rail from Taiwan -- high precision
3.Singapore lens and mirror--reflection and focusing, long working life.
4.Red light position system --position precision
5.Automatic protection system--safe
6.All the feature of our laser engraving machine make sure its high quality and good work performance.
Product Application:
1.Advertising industry: acrylic, double-color board engraving and cutting and other materials.
2.Leather and garment industry: leather and cloth engraving and carving.
3.Craft industry: papercuts, woodwork, bamboo ware, shell and ivory engraving and cutting.
4.Model industry: construction models, aviation and navigation models and wooden toys.
5.Packaging industry: flexography, plywood and knife module cutting.
6.Decoration and Electrical Appliance Industry.
Applicable materials:
Leather, cloth, wool, fur, acrylic, Plexiglas, wooden board, plastic, resin and other Non-Metallic
Materials .

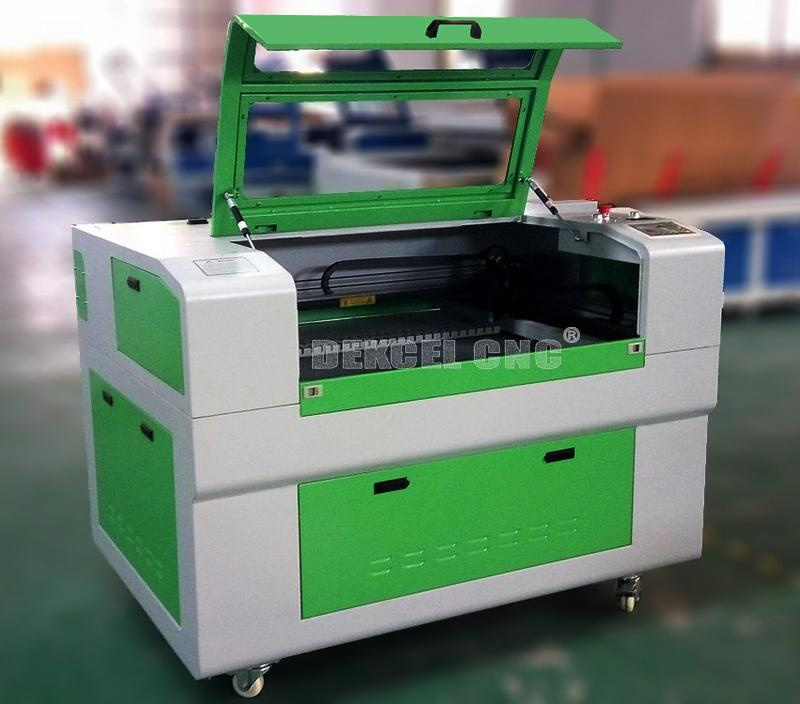

Technical Parameters of CNC CO2 Cutting Machine :
| Machine Model | Dek-1390 |
| Working Area | 1300x 900mm |
| Laser Power | 60W/80W/100W/150W/180W(optional) |
| Laser Type | Co2 laser tube |
| Laser Power Control | 10% -100% software setting |
| Engraving Speed | 0 -60000mm/min |
| Preposition Accuracy | ±0.01mm |
| Min. Shaping Character | English 1*1mm |
| Resolution | 4500DPI |
| Graphic Format Supported | BMP, AI,DST, CDR, PLT, DXF, JPG, PGN |
| Software Supported | CorelDraw, Photoshop, AutoCAD,LaserCut, Tajima |
| Driving System | Stepper motor |
| Control System | DSP |
| Cooling Mode | Water cooling |
| Working Voltage | AC 110 - 220V ± 10%, 50 - 60Hz |
| Package | Wooden case |
| Net Weight/Gross Weight | 510KGS/575KGS |
| Package Dimensions | 2160mm* 1560mm* 1320mm |
| Standard Accessories | RECI brand laser tube
Water chiller
Knife worktable(blade worktable)
Exhaust fan and pipe
Air pump
DSP offline controller and software
Imported focus lens and reflecting mirrors
Red light pointer
Tool box
English user manual |
| Optional Parts | Rotary attachment
Honey comb worktable
Motorized up-down table(Z axis) |
FAQ:
1. How should I pay for my order? What is the procession of this purchase?
Answer: we accept TT by bank. you can do 30% prepayment at first,then we will start to make production. when the machine is ready,we will take pictures to you,and then you can do the balance. after we got your payment.Iwill send the machine to you.
2. How about your service after sales? Can your engineer speak fluent english?
Answer: we offer the sercice from you got the machine,including how to install the machine, how to use machine,how to let machine work and so on.Usually we will teach you how to do by email or by skype.our engineer has many years of experience for cnc machine service.he can speak very good english,so he can slove the problem in short time.
3. Are you a factory or trading company ?
Answer : We are the manufacturer whose machine made by ourselves,quality can be trusted,and most important thing is we can do better serivce after sales.We know how to fix the problem in each parts easliy,so welcome to visit to our factory.
After sales service:
1.1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free. Or charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary.
If you are not sure which machine is suitable, please tell me the following questions:
i will recommend the most suitable machine to you.
1)what materials do you want to engrave or cut?
2)what's the max size of the materials?
