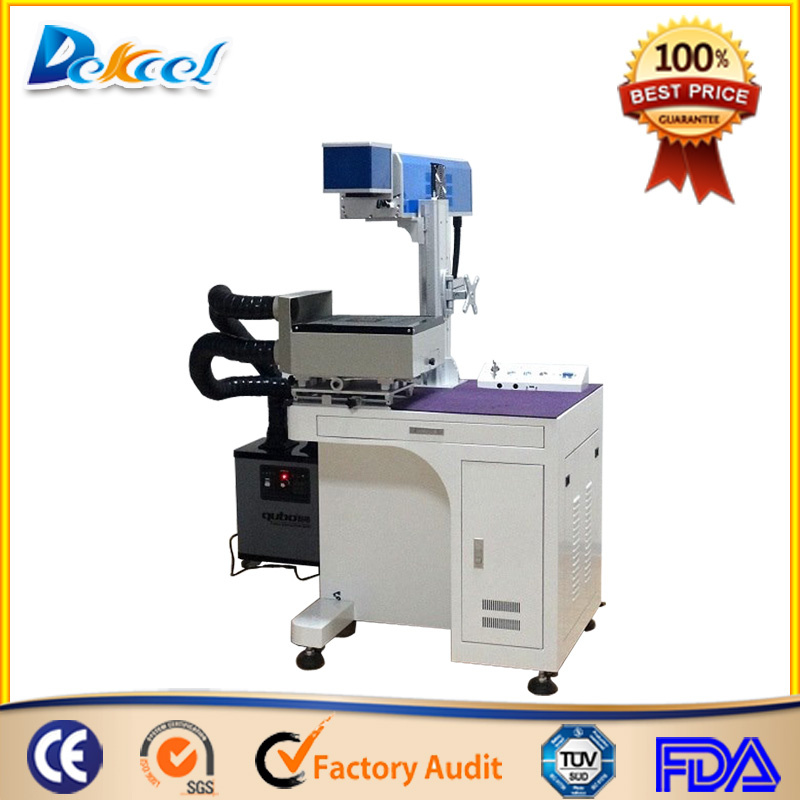

CO2 Laser Marking/ Etching Machine for Wood Paper Plastic Rubber

Product Specifications

Prod Model:	DEK-110
Engraving Depth:	0.01~0.2mm
Control Software:	Ezcad
Graphic Format Supported:	Ai, BMP, Dst, Dwg, Dxf etc
Repeatability Accuracy:	±0.001mm
Guaranty:	18 Month
Laser Module Life:	>100000 Hours
Marking Line Speed:	≤12000mm/S
Laser Length:	1060nm
Minimum Line Width:	0.02mm
Working Voltage:	220V/50Hz/4A

Product Description

Co2 Laser Marking/ Etching Machine for Wood Paper Plastic Rubber

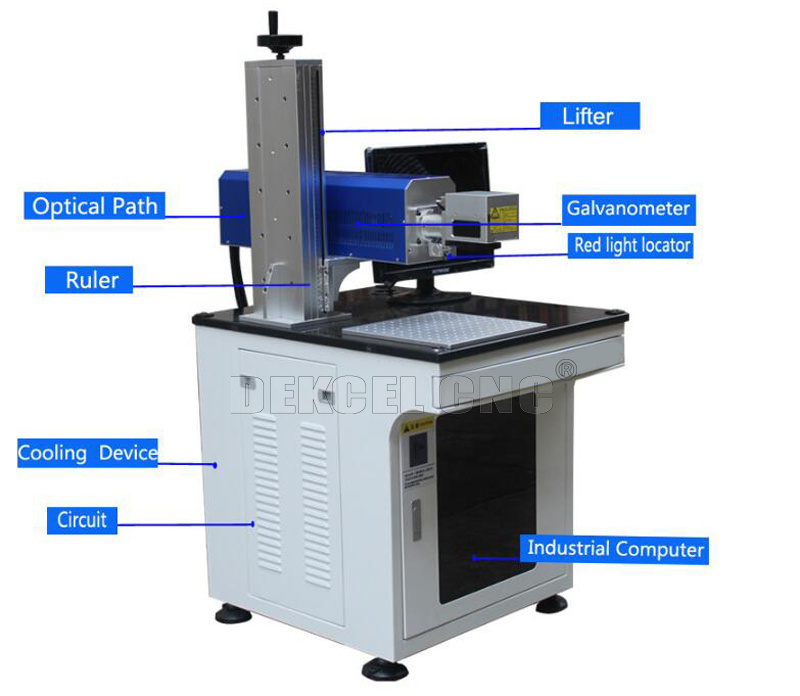

Features of co2 laser marking machine
High marking precision,fast speed,depth engraving control at will,high laser power,can be applied to a variety of non-metallic products for carving and cutting.It has many advantages,such as low cost,laser operating life is up to 20000-30000 hours, marking a clear, high-carving and cutting efficiency, environmental protection, energy saving.

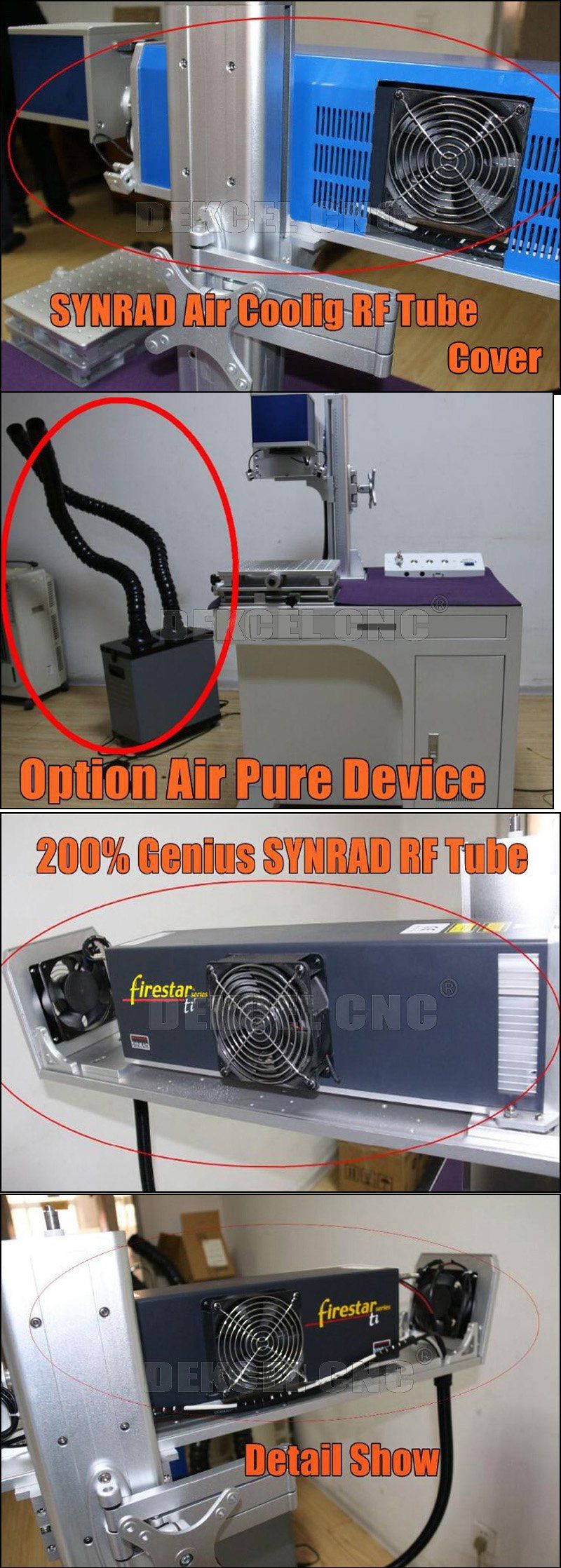

Detail show



Application of co2 laser etching machine
1 Applicable industries : Applicable to the fields of food and beverage, cosmetics,
  pharmaceuticals,  cigarettes, elcctronic components,clothing, craft gifts, ect
2 Applicable materials :  Can be used to mark, engrave and stencil on acrylic(organic)
 glass,bamboo,  resin, plastic, rubber, paper, fabric clothing, leather goods, electrical
 appliancesm the IC, crystal, jade, ceramics, glass, artificial stone and other  non-metallic materials.

Sample show



2 Technology Parameters of Co2 laser marking machine for wood, paper

No.	Description	Parameter
1	Model	DEK-110
2	Laser power	80W
3	Working area	100*100mm(or optional)
4	Laser Wavelength	10.64μm
5	Response time	0.5ms
6	Frequency of pulse	≤ 30KHZ
7	Max marking depth	≤0.3mm (adjustable according to materials)
8	Marking speed	0-7000mm/s
9	Marking lines	1-10 lines(in the marking area)
10	Minimum line width	0.1mm
11	Minimum character	0.4mm
12	Repeatability accuracy	±0.01mm
13	Resolution ratio	0.1mm
14	Marking content	Text,pattern,date,bar code,etc
15	Graphic format supported	bmp, jpg, gif, tga, png,tif,ai,dxf,dst,plt,etc.
16	Operation system	Microsoft Windows XP or Windows 2000
17	Control software	China marking control software or laser2.1 marking control software
18	Unit power	≤ 1.2KW
19	Operation temperature	5°C-40°C
20	Relative moisture	≤  90%,no fog
21	Supply Voltage	220V/50Hz/15A
22	Cooling method	water cooling


Warranty of the Co2 laser marking wood plastic etching mahcine

1).The warranty of Co2 RF Metal Tube Laser Marking Machine for wood plastic is 18 months.
2)The warranty of the lens and laser tube is 6 months.
3)The warranty is dated from Ex Factory Date.
4)During warranty, we will send the parts to you for repairing/replacing.
5)When the warranty is over, we will charge for replacing.
6)If there's any problem in future, we will give you tech support by sending email/telephone/skype/msn and we will send you tech documents to fix the problems.
7)The warranty of the co2 laser marking mahcine is only valid for for customers who buy machine in the year of 2013.

Frequently asked questions about Co2 laser etching machine

Q:Does your Co2 laser marking machine run from a laptop or Desktop PC?
A:both ok, as long as your operating system is window 2000 or XP or vista or win

Q:Does your Co2 laser marking paper rubber machine work from printer in corel draw/autocad?
A:our laser cutter can work in coreldraw and autocad directly.
and it connects to PC by using a USB cable.

Q:What files is the software compatible with?
A:JPG,PNG,BMP, PLT, DST, DXF,CDR,AI,DSB,GIF,MNG,TIF,TGA,
PCX,JP2,JPC,PGX,RAS,PNM,SKA,RAW

Q:what's the difference between the different laser tubes?
A: usually,the power of the tube is decided by two parameters:
1.the length of the tube,the longer the tube is, the more powerful.
2.the diameter of the tube,the bigger the tube is, the more powerful.

Q:Air way shipping time of the Co2 laser marking machine:
A:usually, we will need about 7 days to prepare the order after receving the payment.
and if send by DHL air way, it will need about 7 days to reach you.
so totally it will need about 14 days if you choose DHL air way to your door.

After-sale service
1.1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free. Or charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery.
7.Our staff can be sent to your company to install or adjust if necessary
